Diagnostic Detection Logic

For diagnostic detection logic, see Fig 1 .

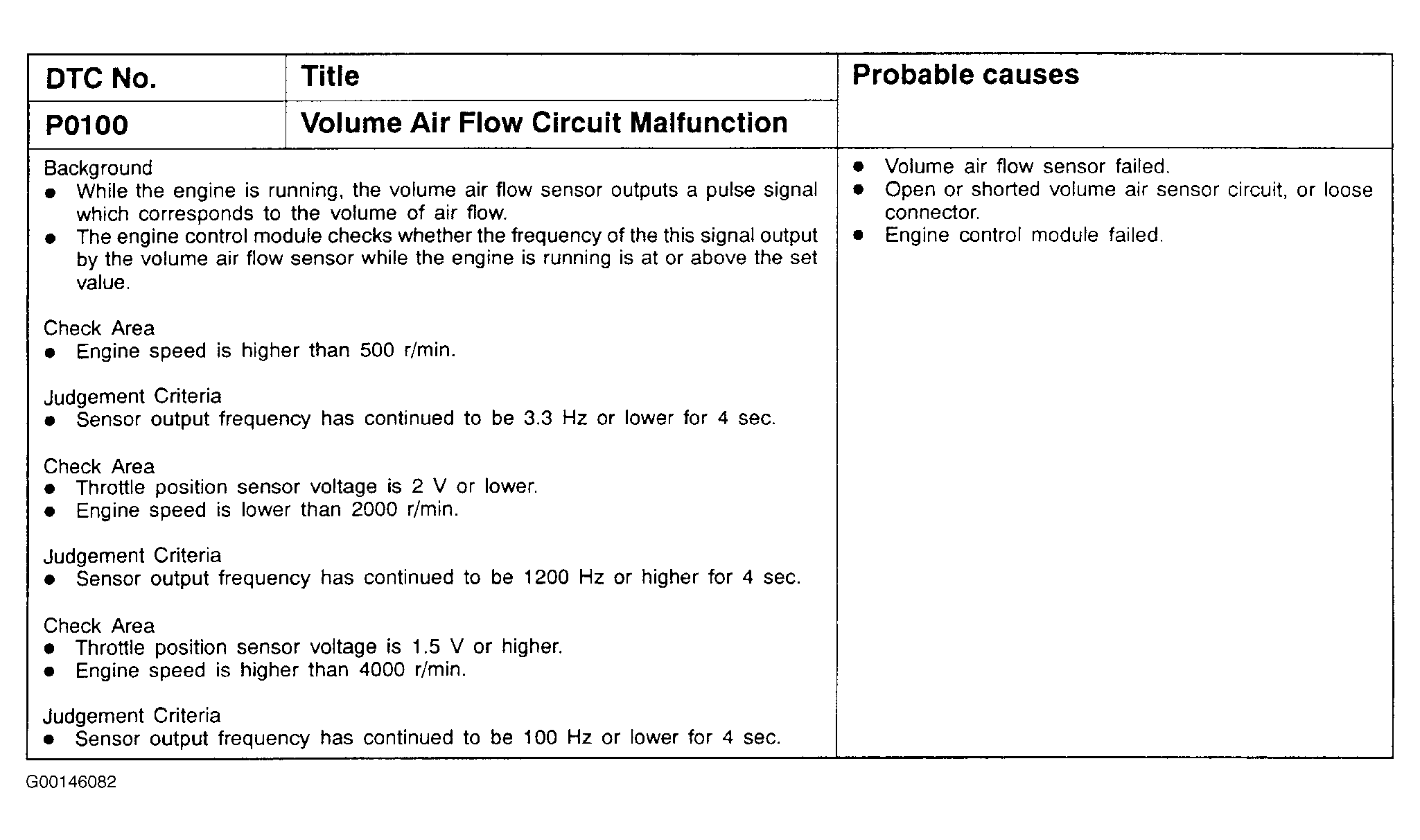

Fig 1: P0100: Volume Air Flow Circuit Malfunction (Diagnostic Detection Logic)
G00146082Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
