Diagnostic Detection Logic

For diagnostic detection logic, see Fig 1 .

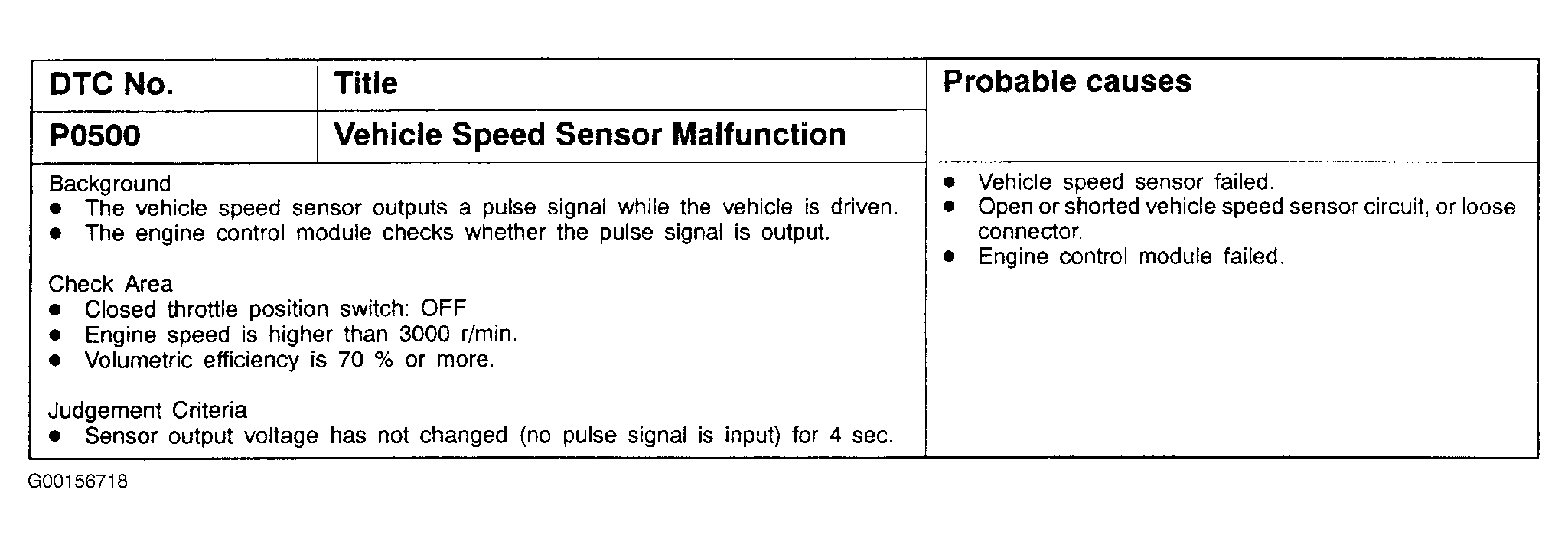

Fig 1: P0500: Vehicle Speed Sensor Malfunction (Diagnostic Detection Logic)
G00156718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
