TCL (Traction Control) Switch

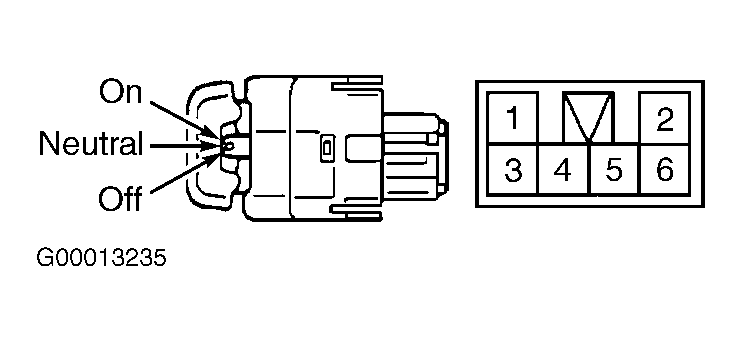

Test continuity of TCL switch. With switch rocked to ON position, only terminals No. 3 and 6 should have continuity. See Figure . In TCL or center position, only terminals No. 4 and 5 should have continuity. In OFF position only terminals No. 1 and 3 should have continuity.
