Component Location

WARNING: This page is about a different car, the 2000 Acura Integra, 2000 Acura 3.5RL, and 2000 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 11 .

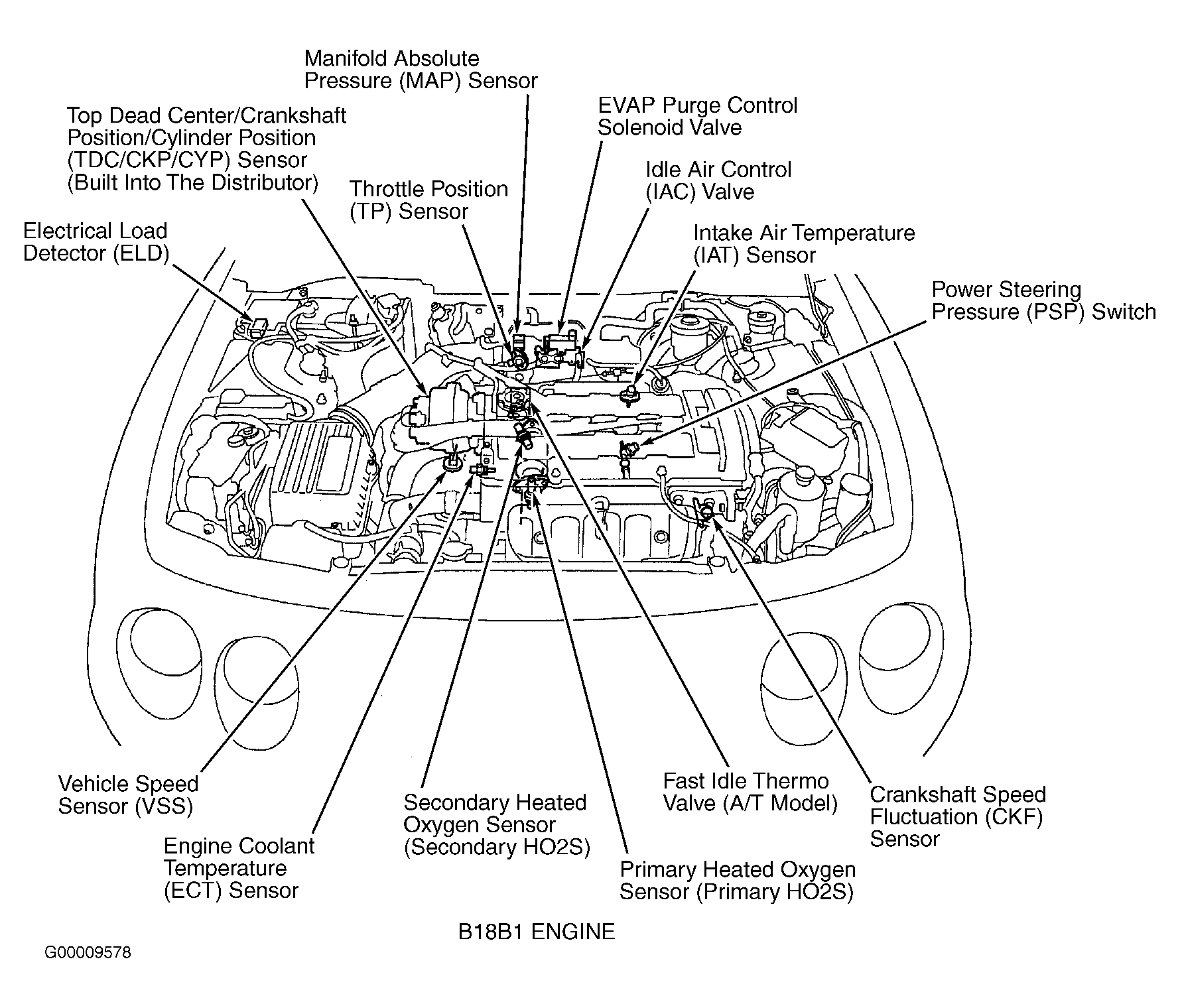

Fig 1: Locating Engine Performance-Related Components (Integra - 1 Of 5)

G00009578

Courtesy of AMERICAN HONDA MOTOR CO., INC.

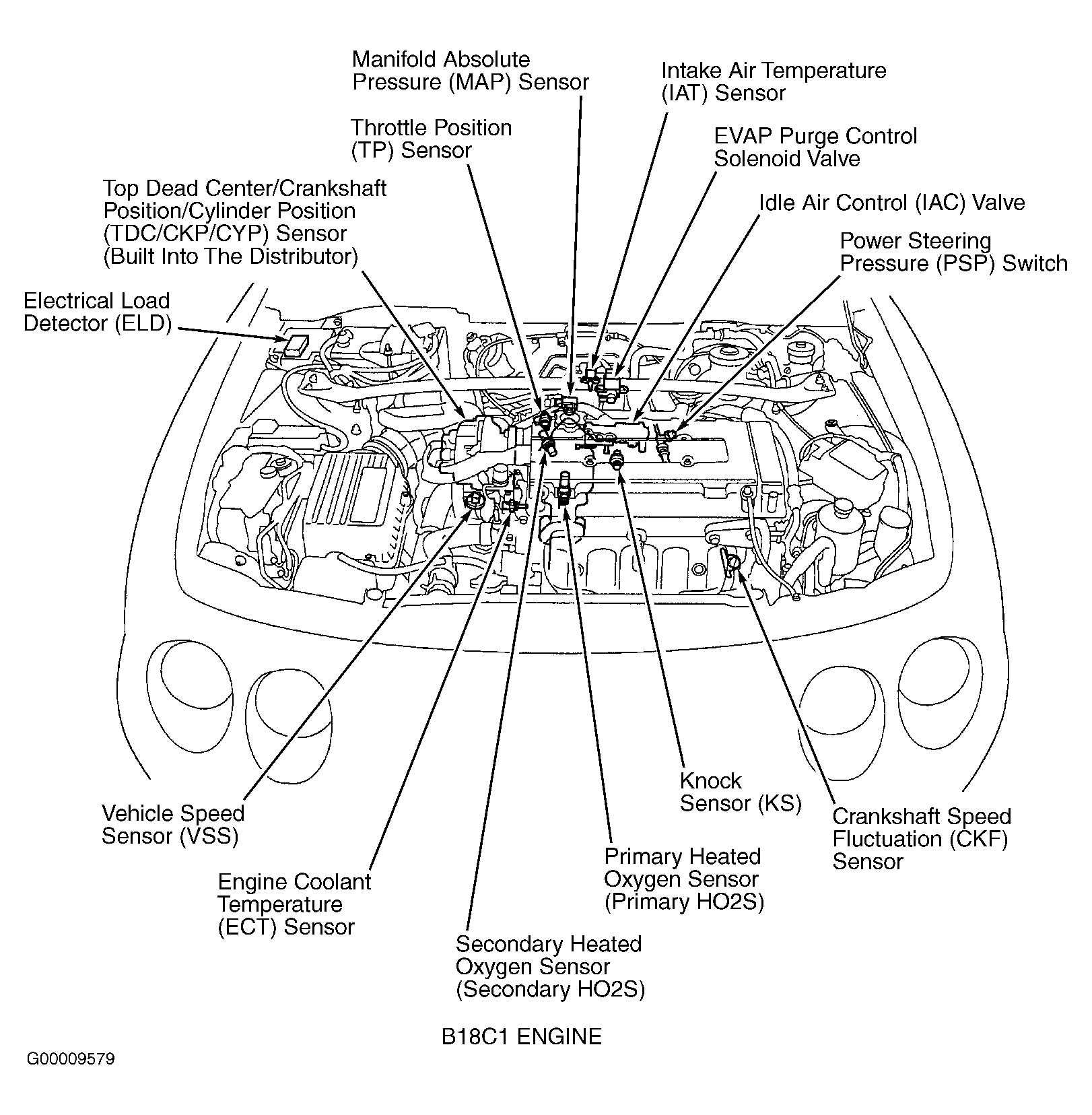

Fig 2: Locating Engine Performance-Related Components (Integra - 2 Of 5)

G00009579

Courtesy of AMERICAN HONDA MOTOR CO., INC.

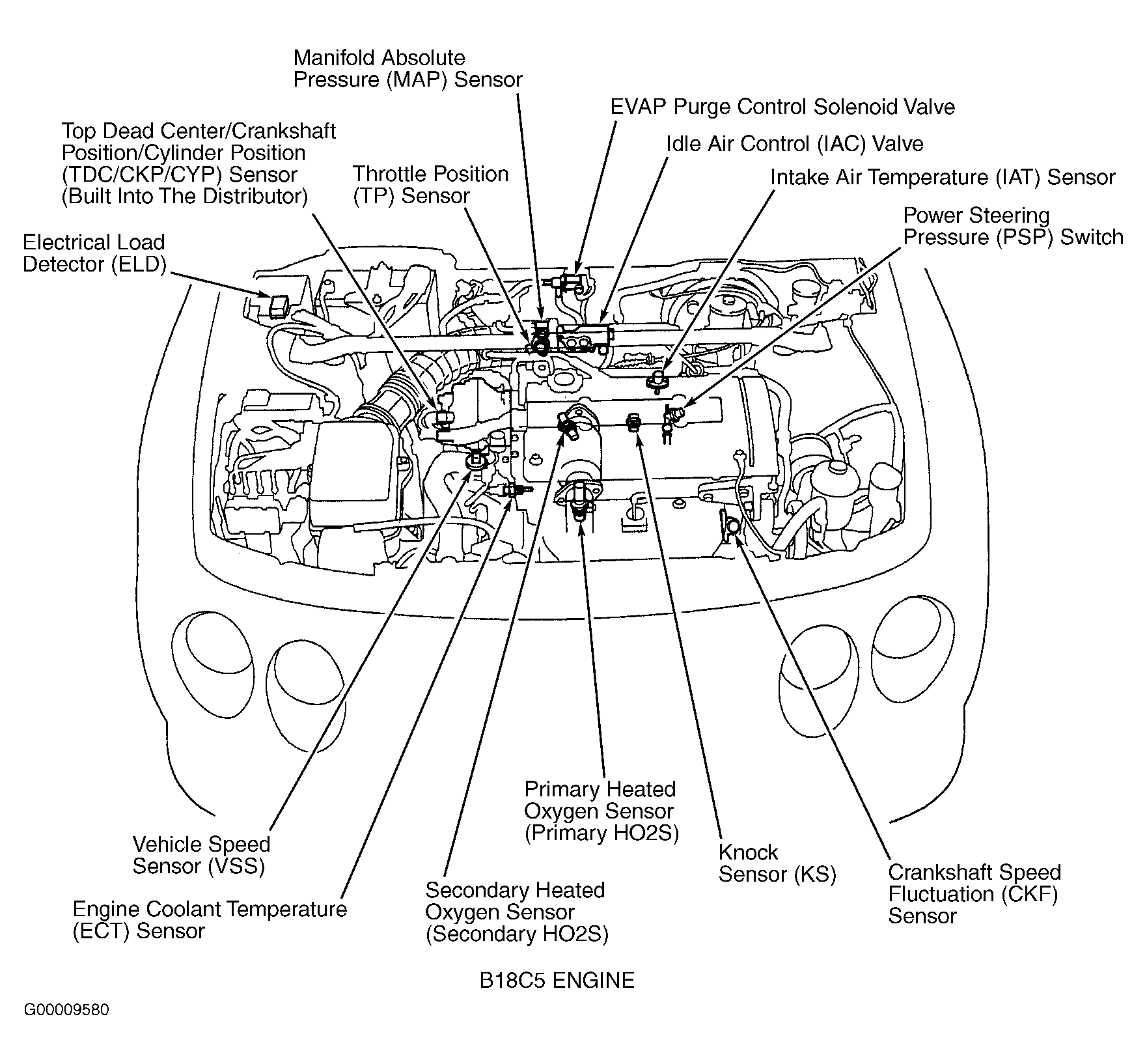

Fig 3: Locating Engine Performance-Related Components (Integra - 3 Of 5)

G00009580

Courtesy of AMERICAN HONDA MOTOR CO., INC.

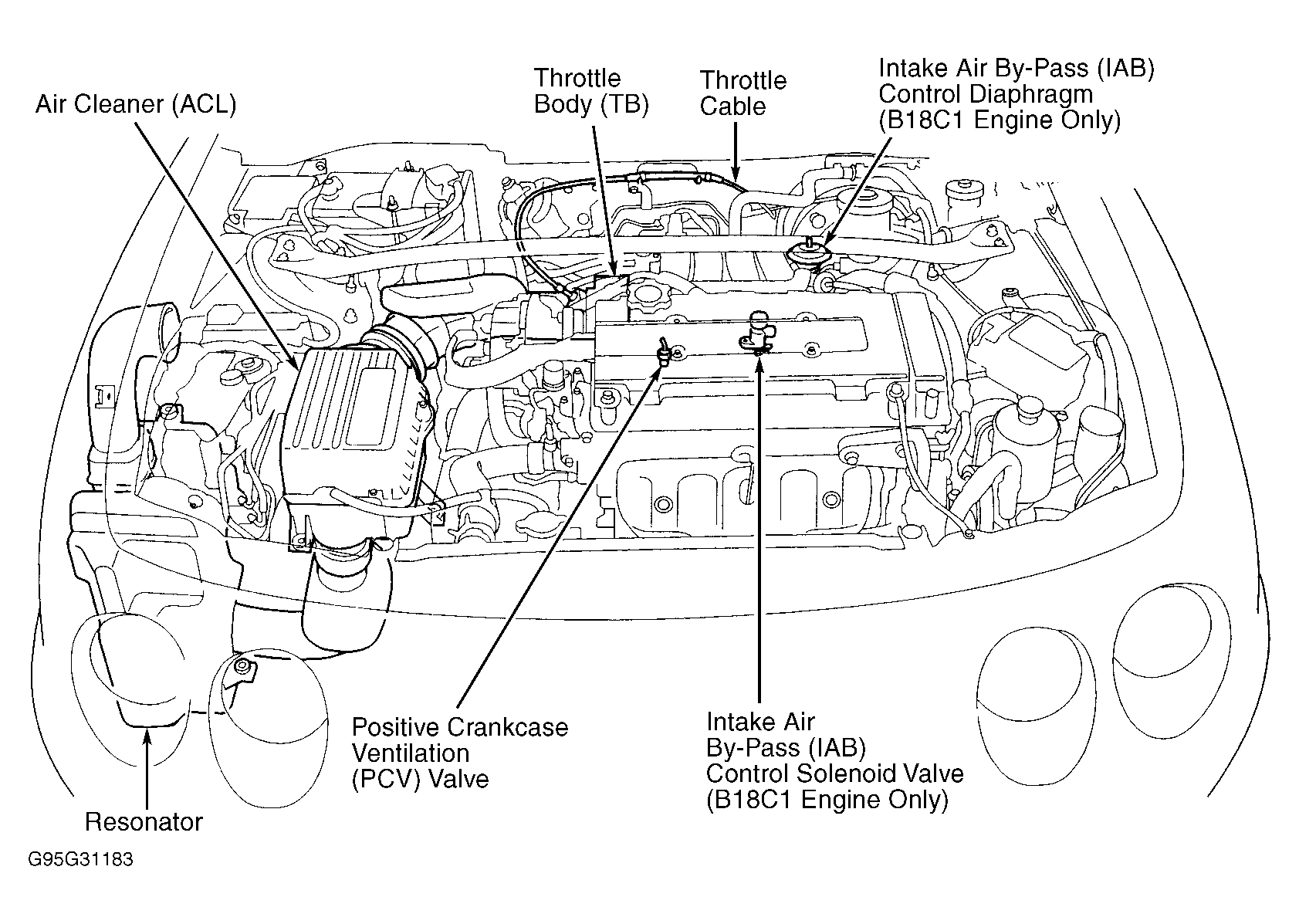

Fig 4: Locating Engine Performance-Related Components (Integra - 4 Of 5)

G95G31183

Courtesy of AMERICAN HONDA MOTOR CO., INC.

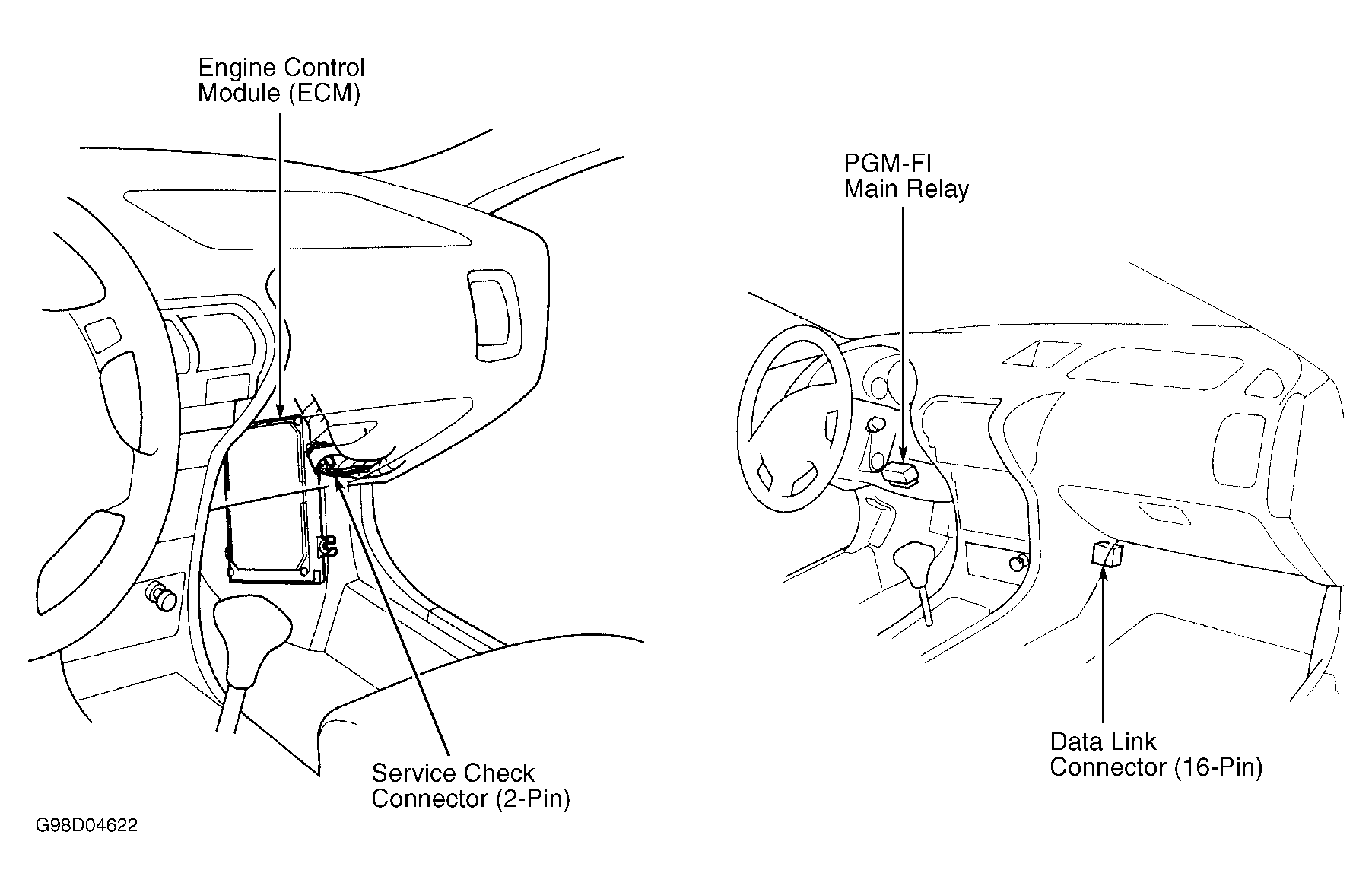

Fig 5: Locating Engine Performance-Related Components (Integra - 5 Of 5)

G98D04622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

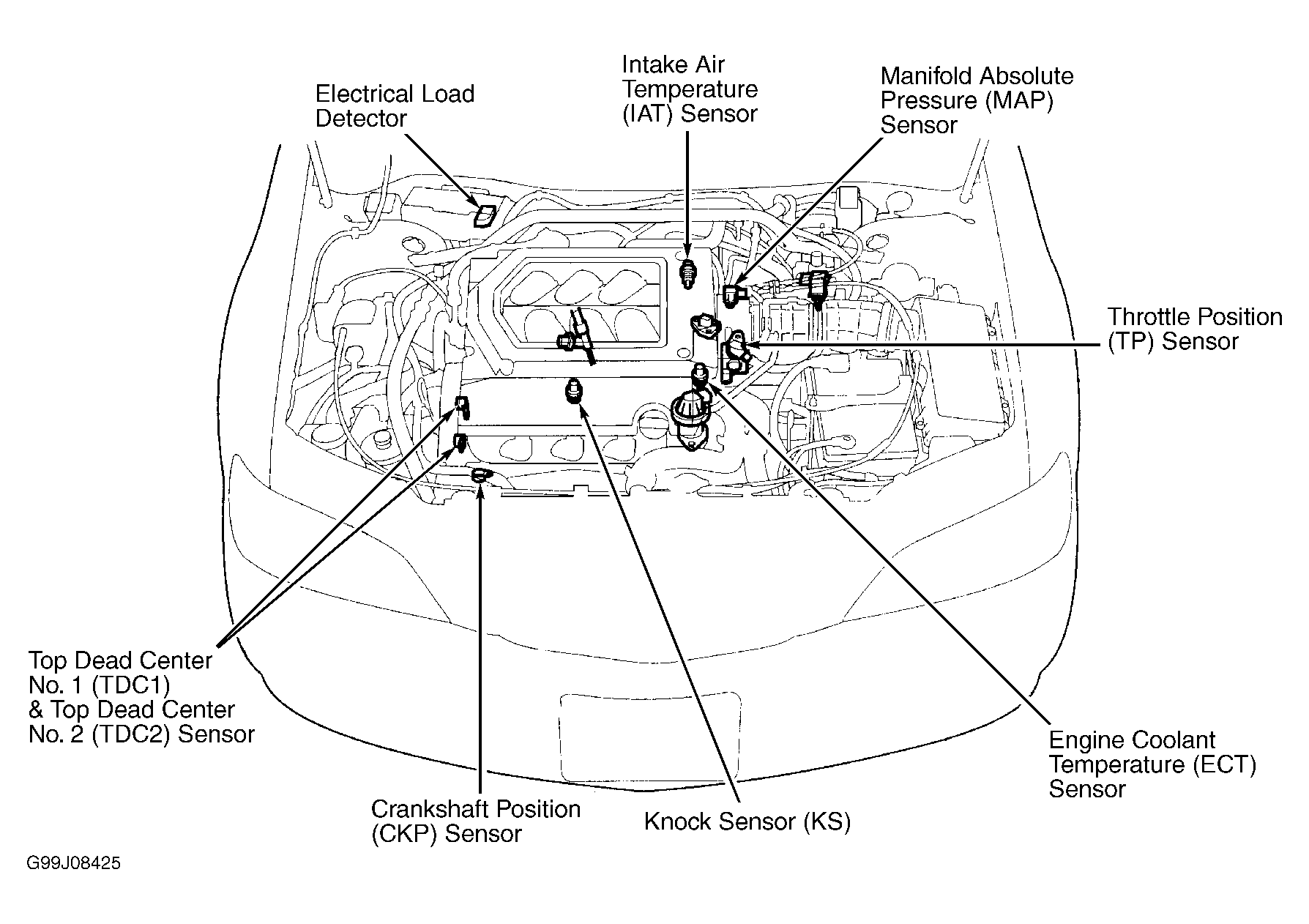

Fig 6: Locating Engine Performance-Related Components (3.2TL - 1 Of 3)

G99J08425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

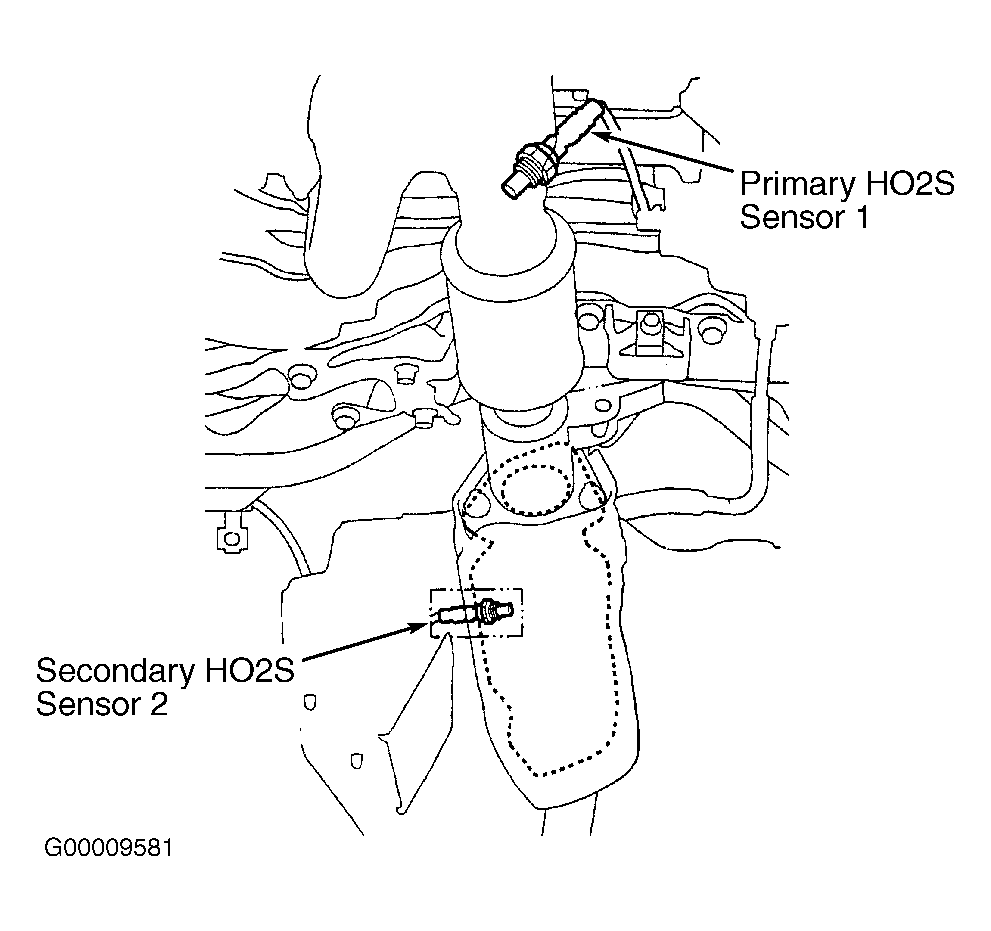

Fig 7: Locating Engine Performance-Related Components (3.2TL - 2 Of 3)

G00009581

Courtesy of AMERICAN HONDA MOTOR CO., INC.

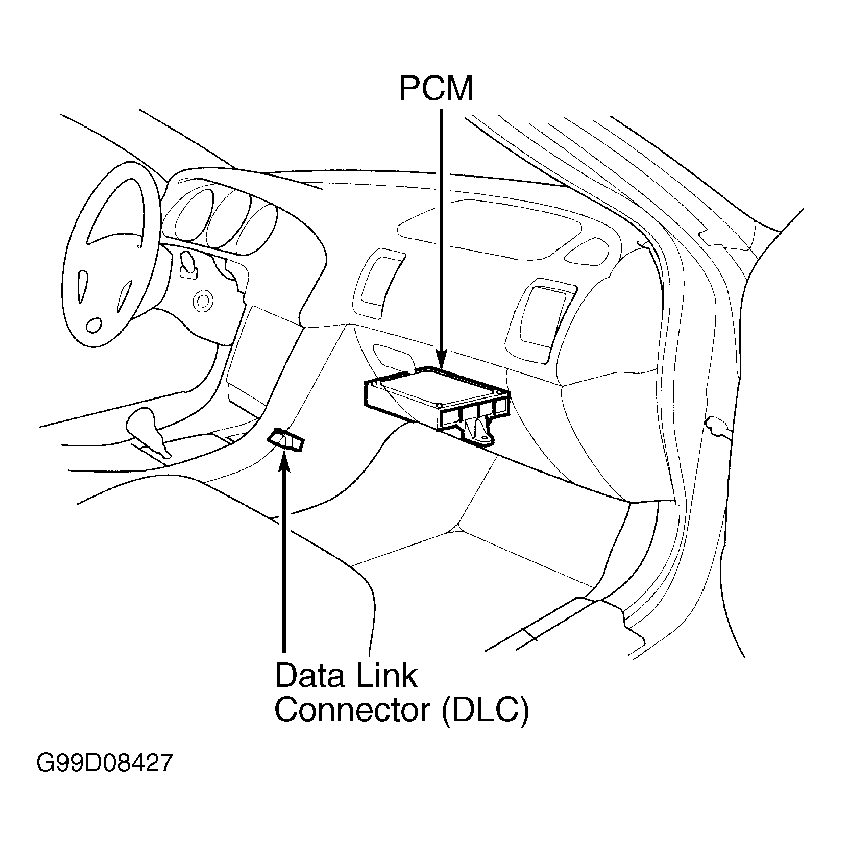

Fig 8: Locating Engine Performance-Related Components (3.2TL - 3 Of 3)

G99D08427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

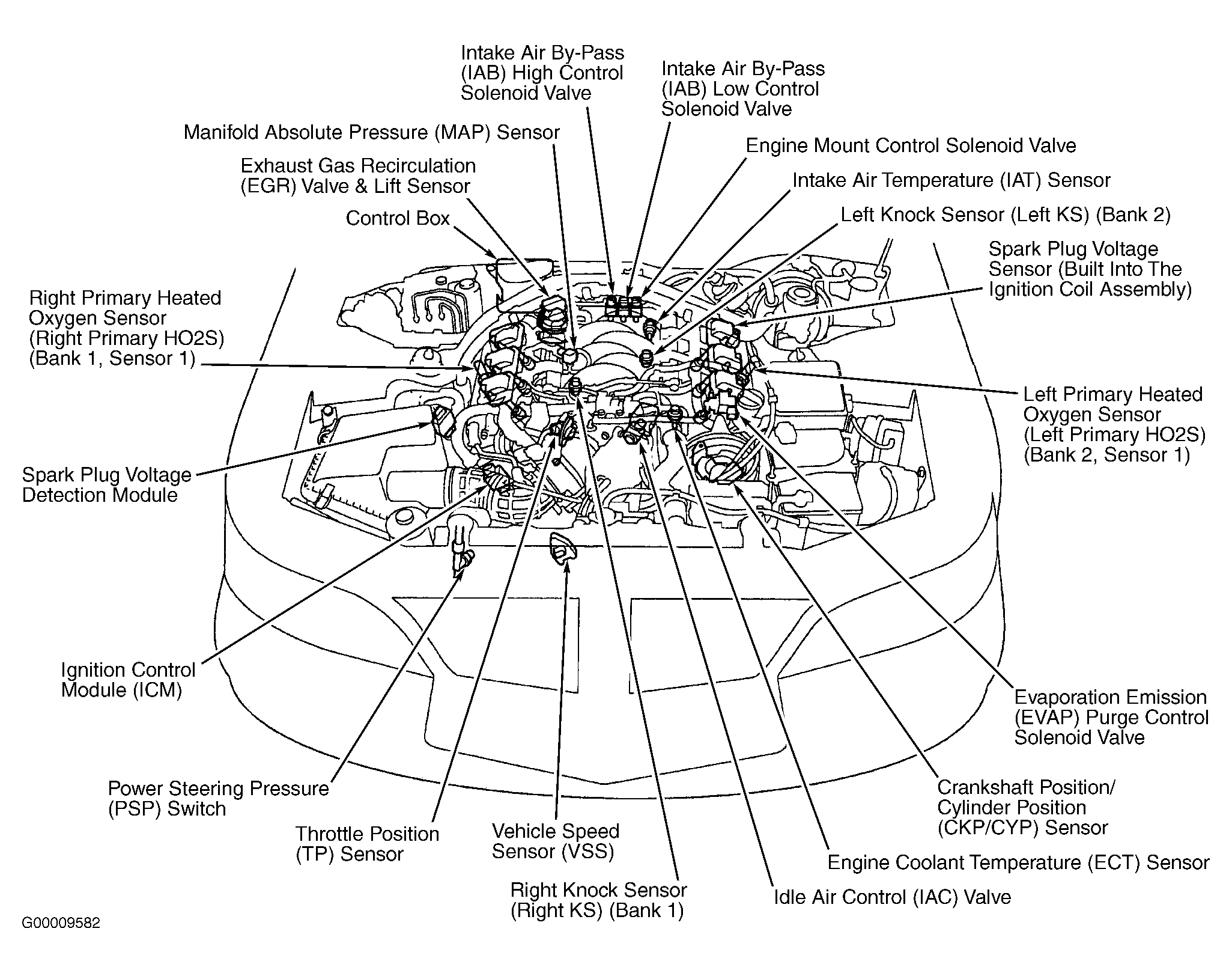

Fig 9: Locating Engine Performance-Related Components (3.5RL - 1 Of 3)

G00009582

Courtesy of AMERICAN HONDA MOTOR CO., INC.

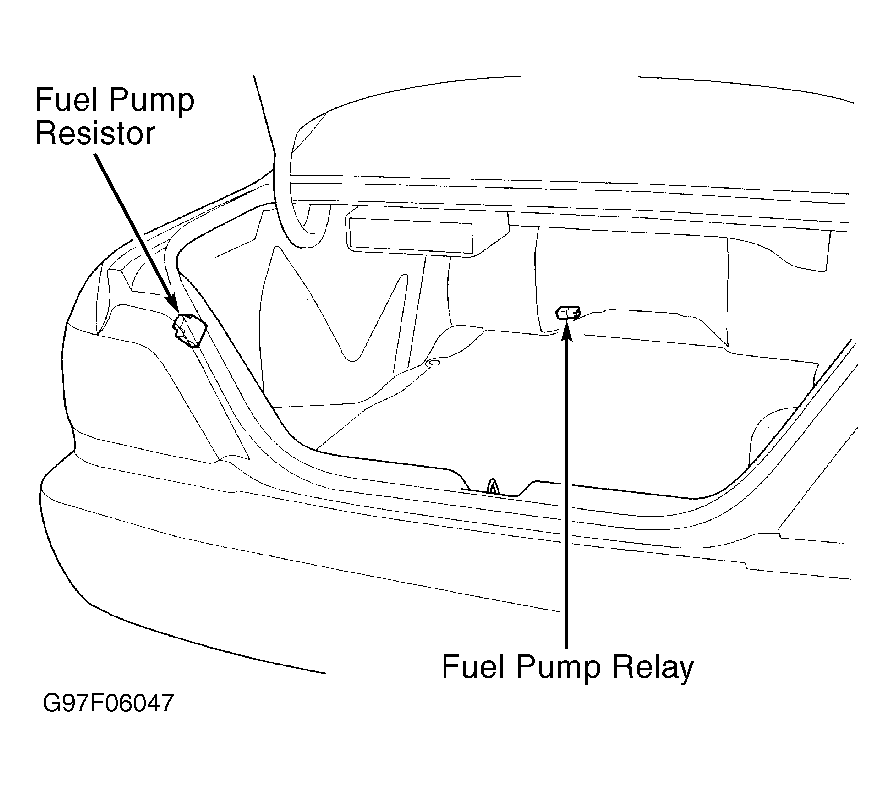

Fig 10: Locating Engine Performance-Related Components (3.5RL - 2 Of 3)

G97F06047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

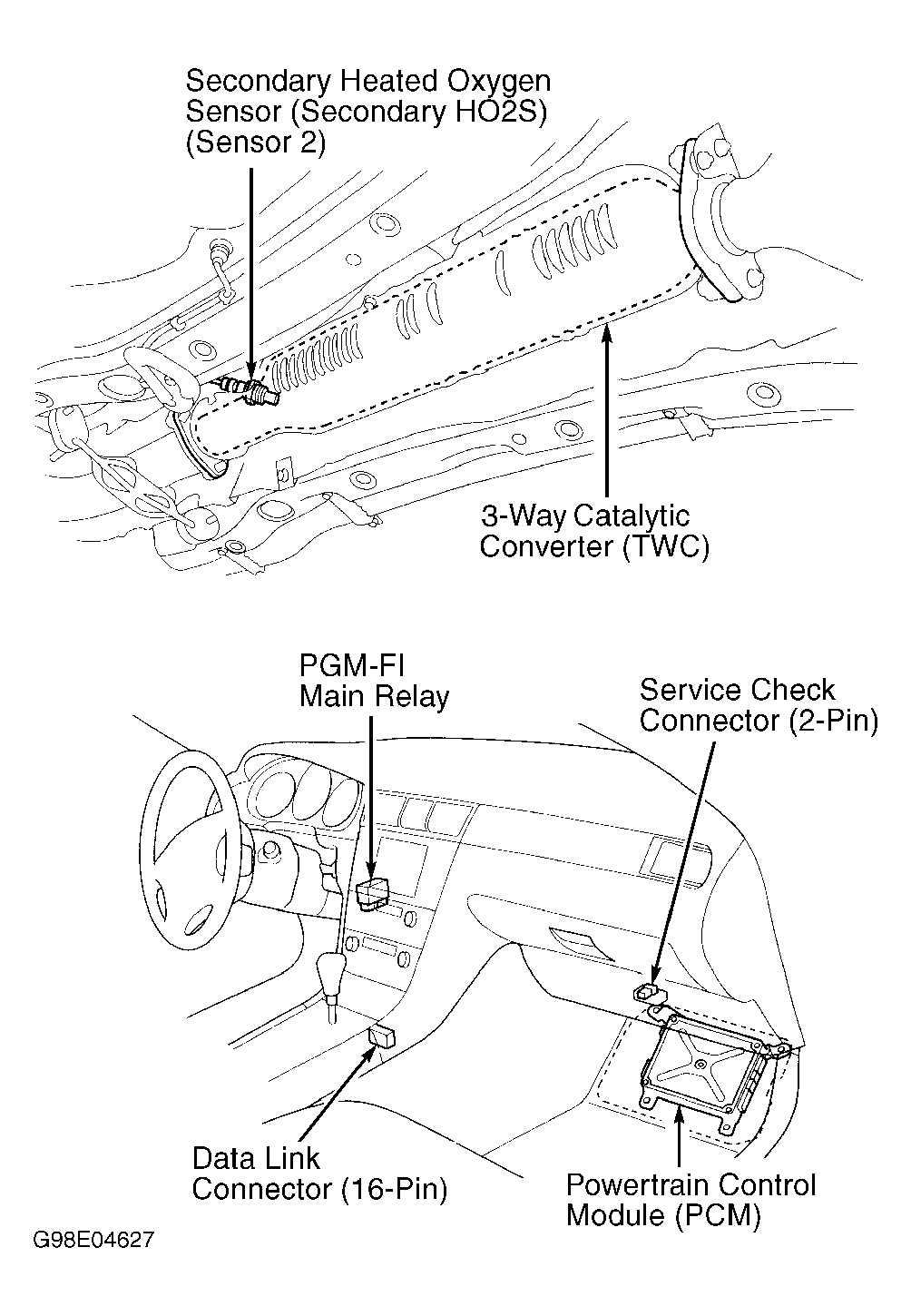

Fig 11: Locating Engine Performance-Related Components (3.5RL - 3 Of 3)

G98E04627

Courtesy of AMERICAN HONDA MOTOR CO., INC.
