A/C Clutch Relay (3.5RL)

WARNING: This page is about a different car, the 2000 Acura Integra, 2000 Acura 3.5RL, and 2000 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

Relay is located in underhood fuse/relay box. Remove relay. Check continuity between terminals No. 1 and 3. See Fig 2. If continuity exists, replace relay. Using fused jumper wires, connect 12-volt battery power and ground to terminals No. 2 and 4. Continuity should exist between terminals No. 1 and 3. If continuity does not exist, replace relay.

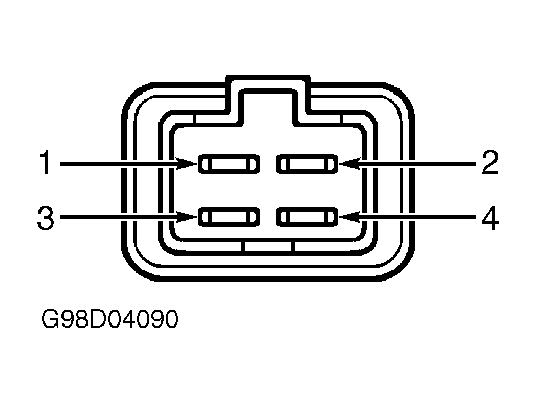

Fig 1: Identifying A/C Clutch Relay Terminals (Integra & 3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

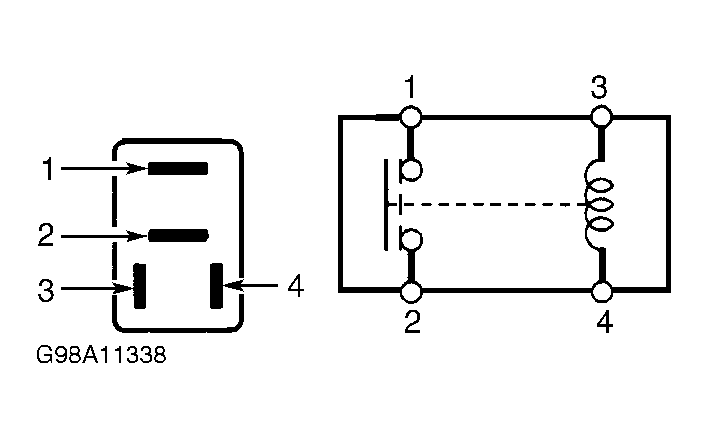

Fig 2: Identifying A/C Clutch Relay Terminals (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
