Retrieving Input Switch Codes
WARNING: This page is about a different car, the 2001 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
System input switch test should be performed if no DTCs are stored when performing self-diagnostics. System input tests cycle each cruise control switch and sensor.

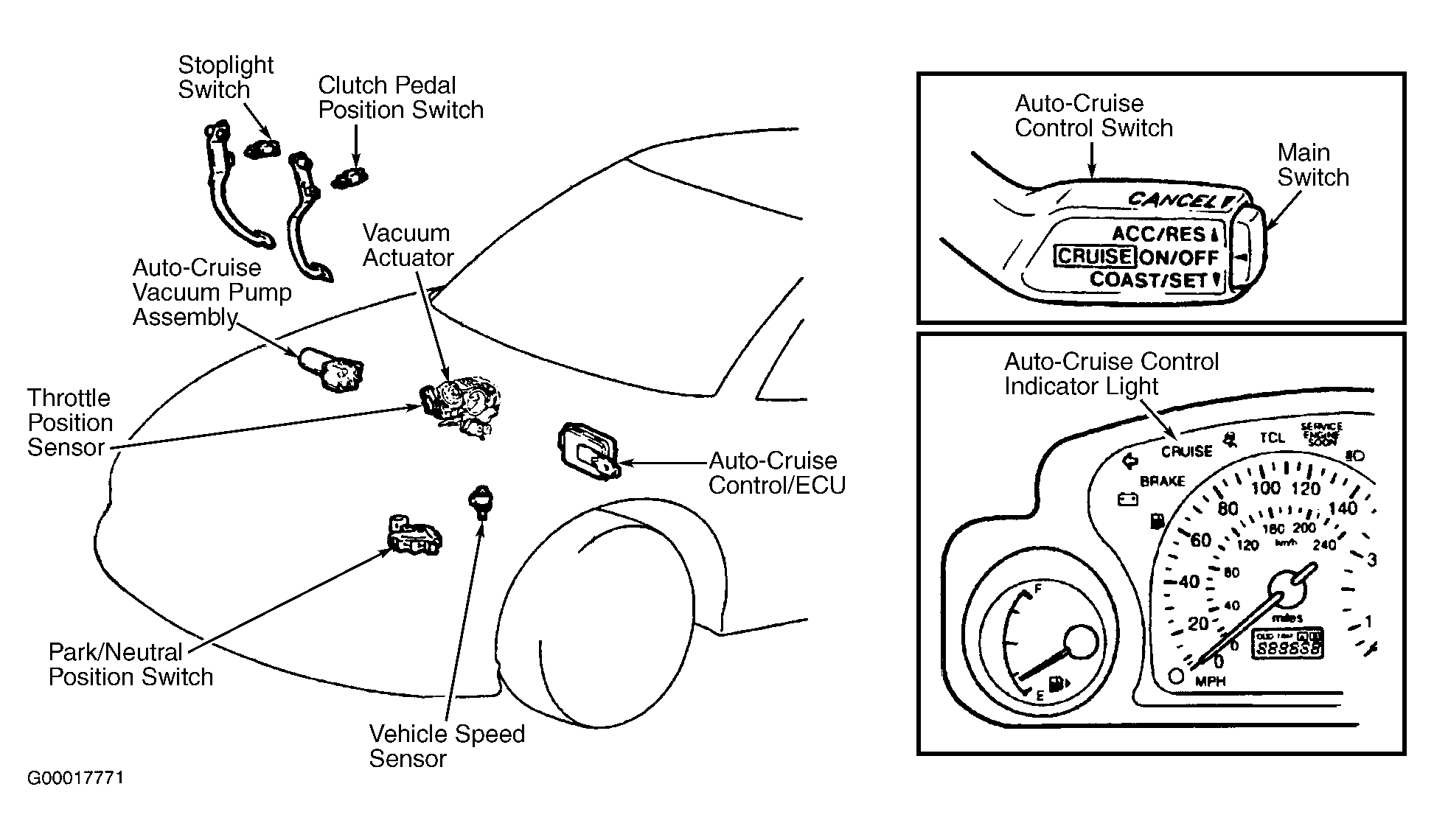

- Use scan tool for code retrieval. Turn ignition off. Install scan tool to DLC. Turn ignition on. While holding cruise control switch in SET/COAST position, depress end of switch to ON position. Within one second, move switch up to RES position. See Figure .
- Operate each switch in CHECK RESULTS CODE IDENTIFICATION table, and read input switch codes on scan tool. Repair or replace components as necessary.
CHECK RESULTS CODE IDENTIFICATION
| Code | Input Operation |
|---|---|
| 1 | MAIN Switch On |
| 2 | SET Switch On |
| 3 | RESUME Switch On |
| 4 | CANCEL Switch On |
| 5 | Brakelight Switch On |
| 10 | Vehicle Speed Sensor |
| 13 | Throttle Position Sensor Signal |
| 14 | Clutch Pedal Position Switch (M/T) Or P/N Switch (A/T) |
| 15 | Overdrive Detection |
| 8 | Accelerator Switch |
