Removal And Installation: Notes

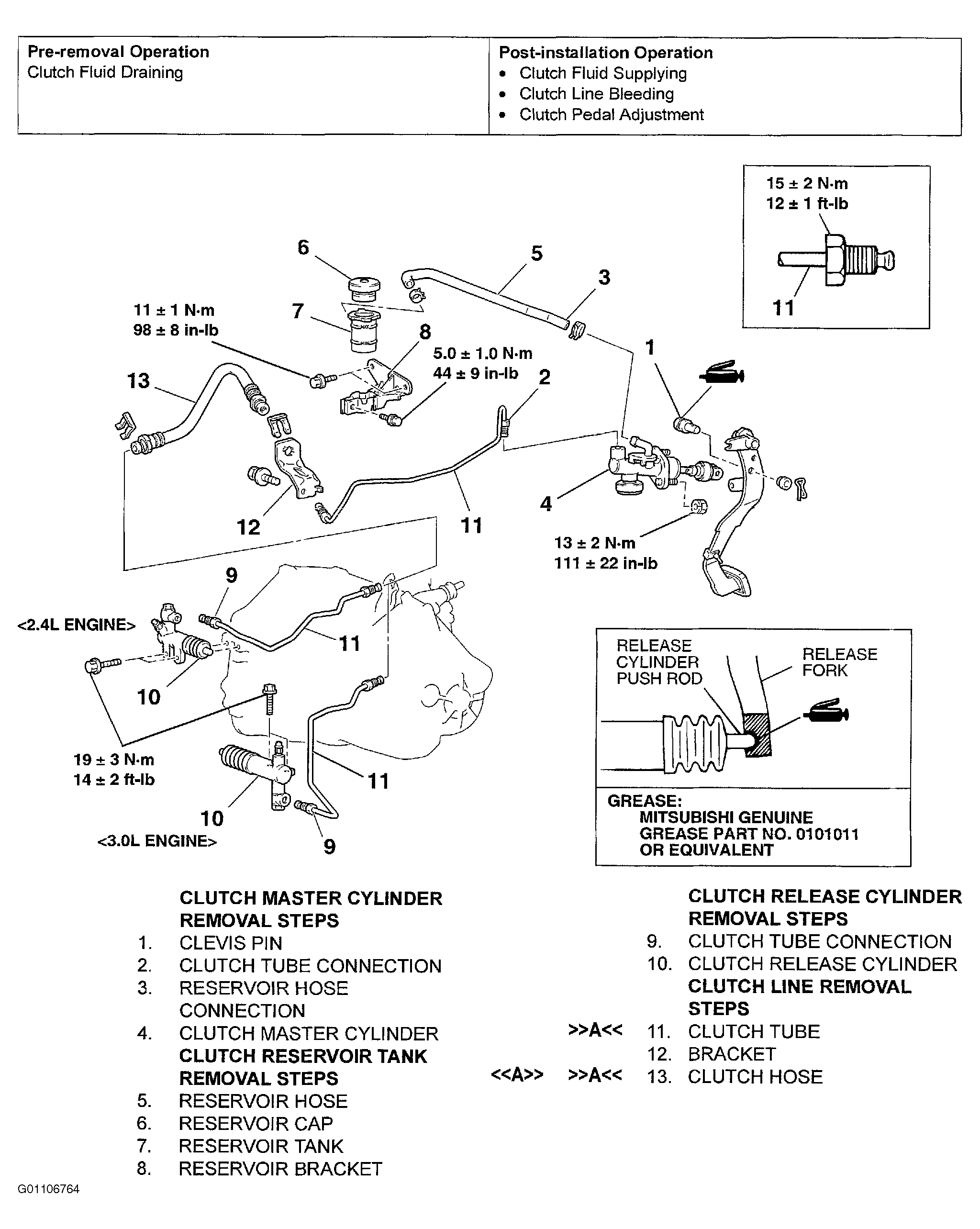

For clutch control removal procedures, follow numbered steps in illustration. See Fig 1. For clutch control installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing clutch control. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See REMOVAL SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See INSTALLATION SERVICE POINT .
