Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ABS Relay Box | In right rear corner of engine compartment. |
| Engine Compartment Relay Box | On left inner fender panel, behind battery. |

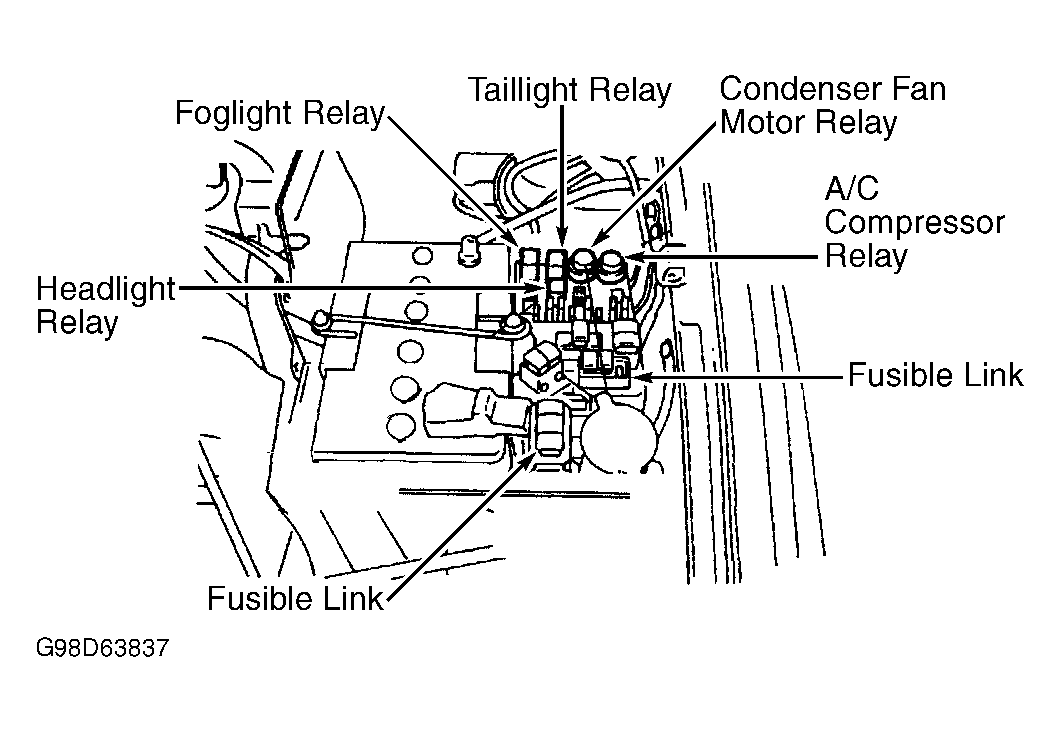

| Fusible Links | In engine compartment relay box. See Figure . |
| Junction Block | Behind left side of dash. |

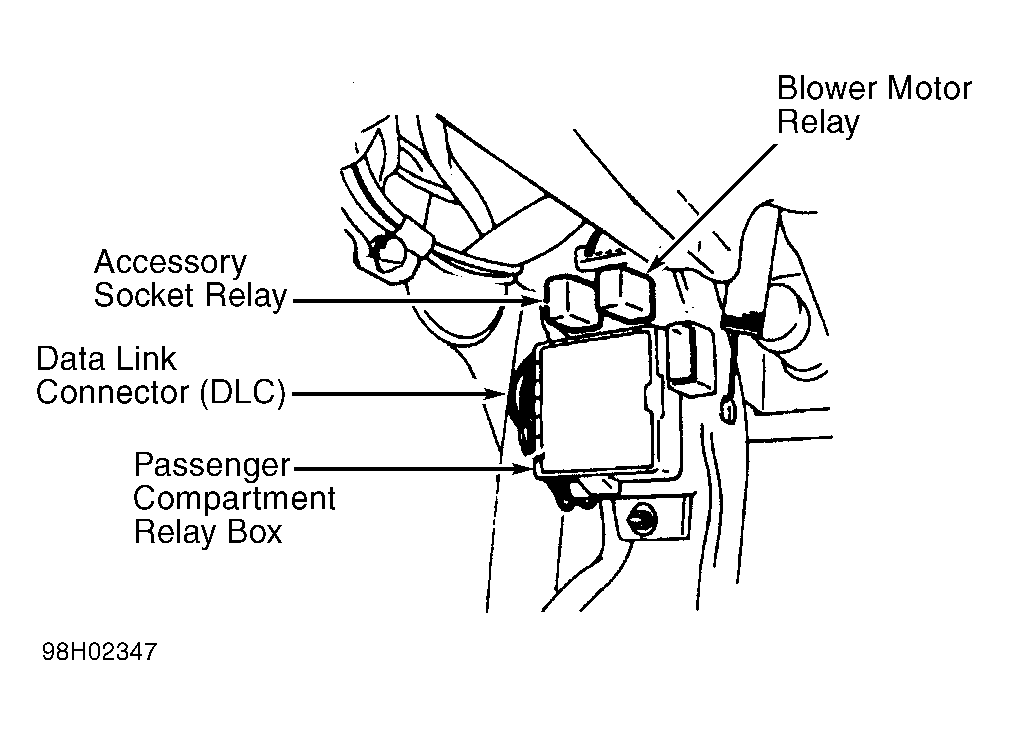

| Passenger Compartment Relay Box | Behind left side of dash. See Figure . |
| Power Seat Relay Box | Under driver's seat. |
