Special Tools

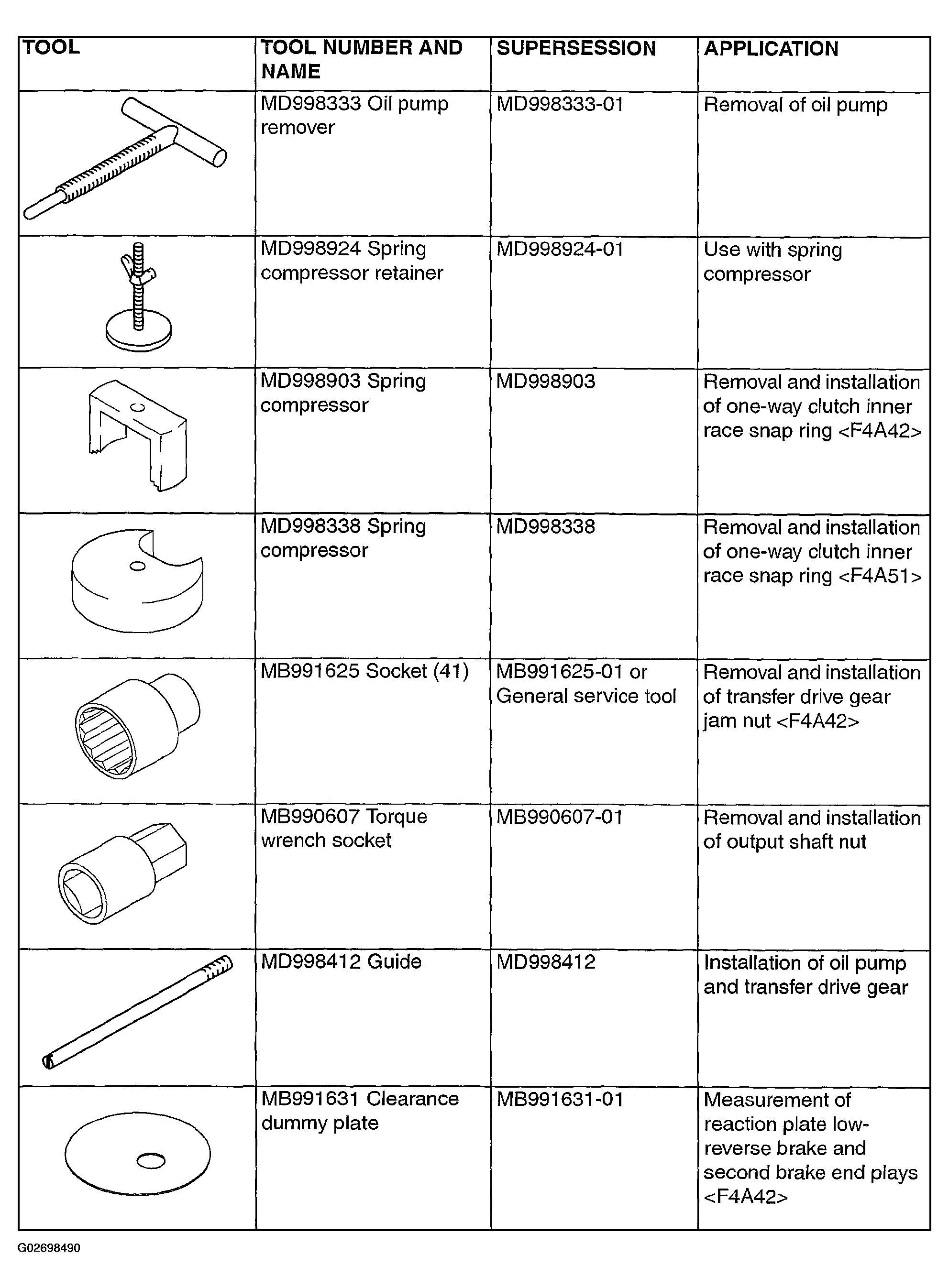

Fig 1: Special Tools (1 Of 5)
G02698490

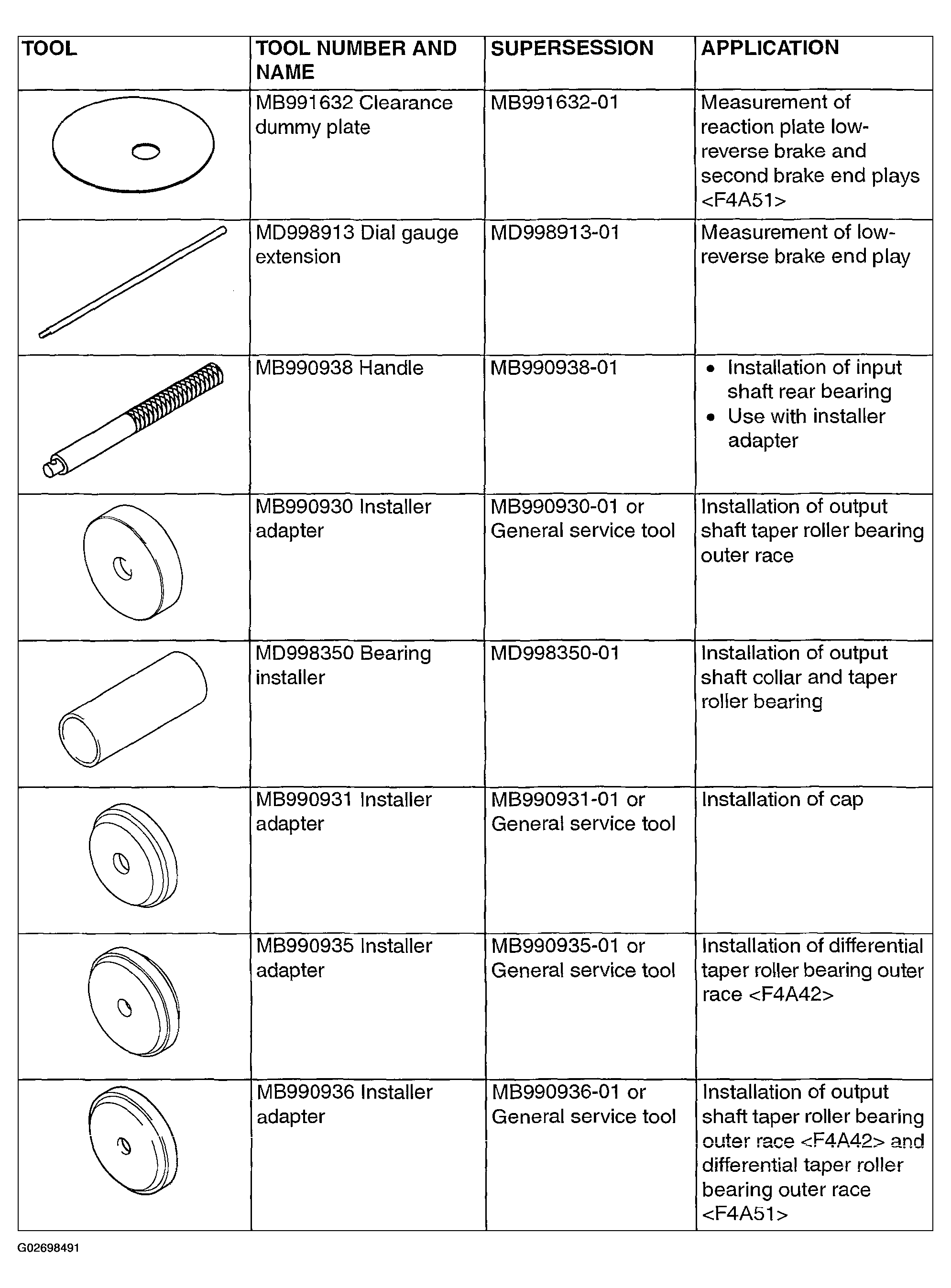

Fig 2: Special Tools (2 Of 5)
G02698491

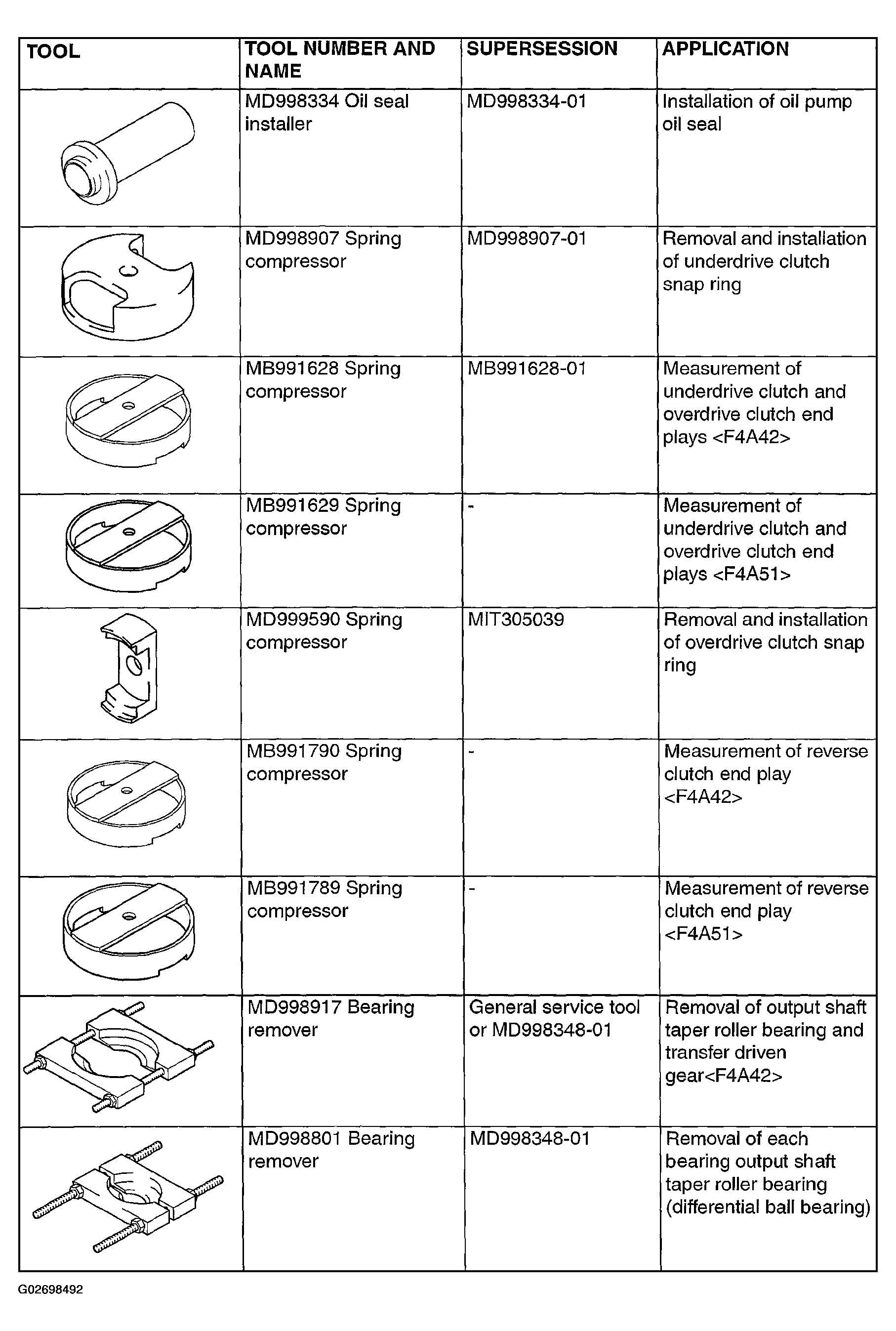

Fig 3: Special Tools (3 Of 5)
G02698492
Fig 4: Special Tools (4 Of 5)
G02698493

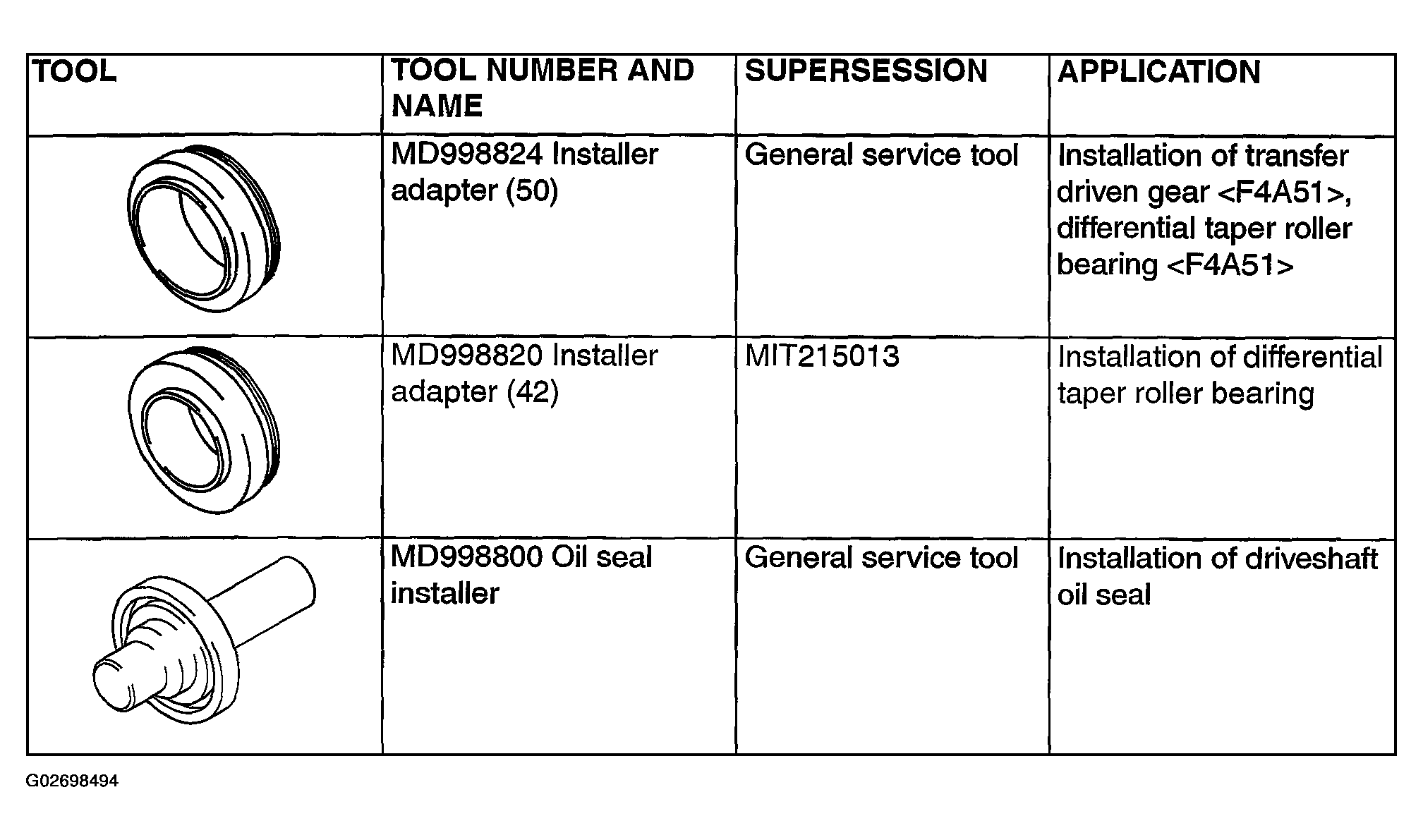

Fig 5: Special Tools (5 Of 5)
G02698494
