Disassembly And Assembly

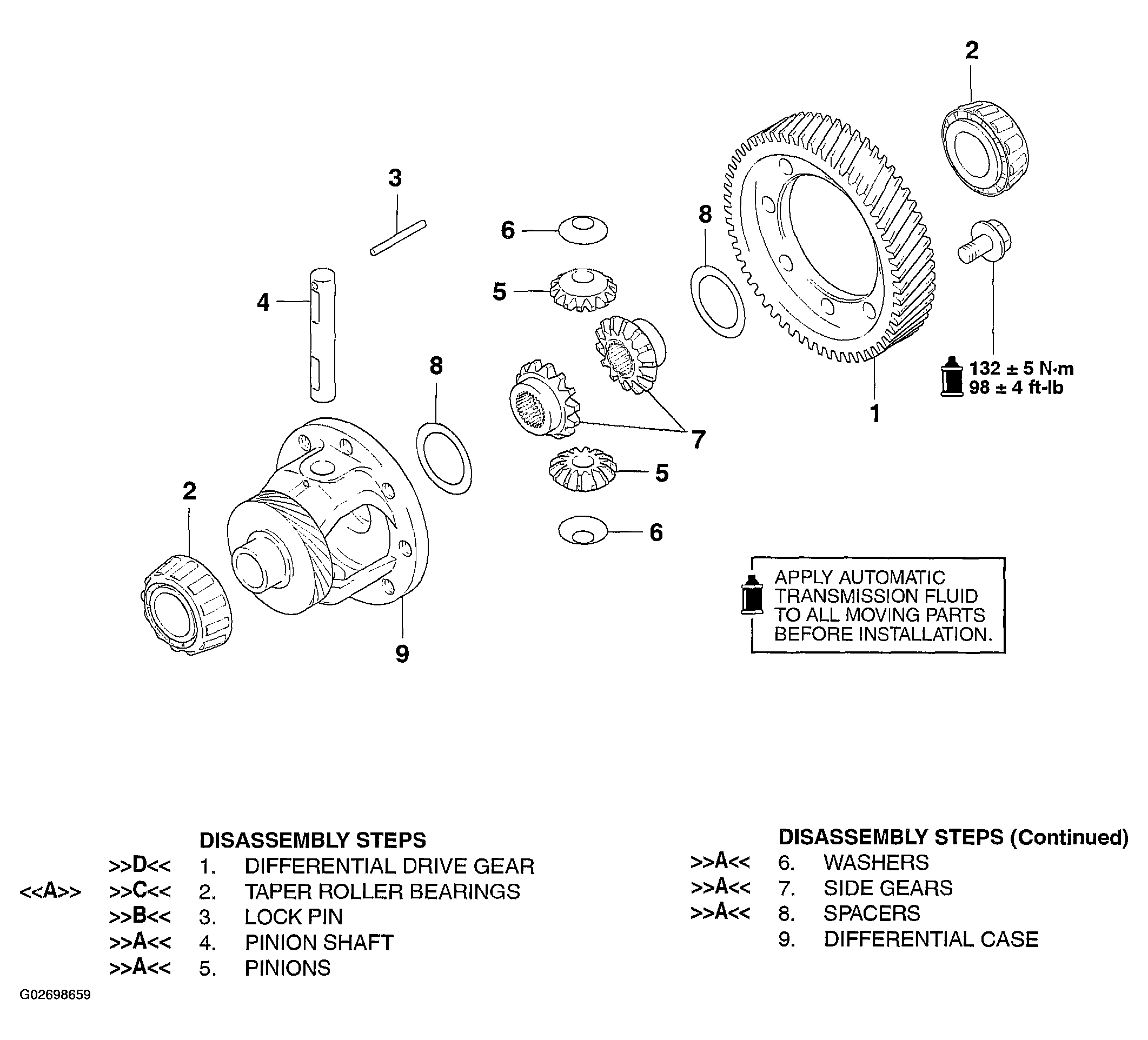

Fig 1: Differential Disassembly And Assembly
G02698659

Required Special Tools:

MD998801: Bearing Remover

MD998812: Installer Cap

MD998820: Installer Adapter (42)
