>> D << Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the synchronizer ring and outer synchronizer ring < F5M51 >.

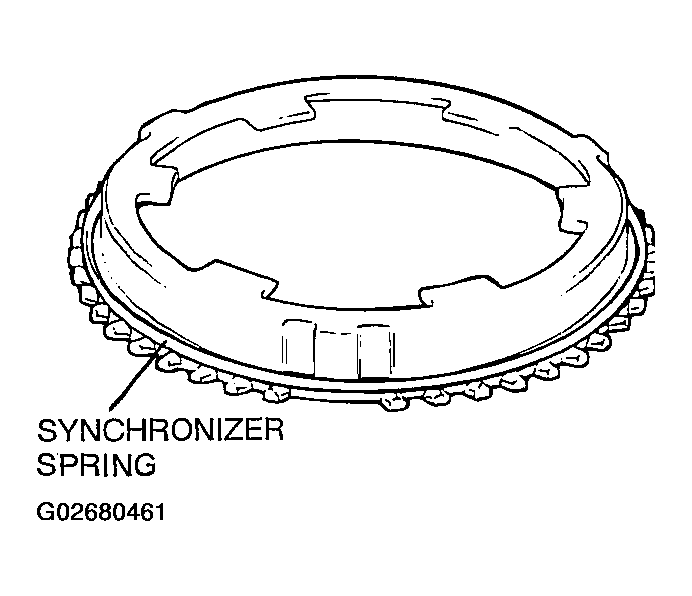

Fig 1: Installing Synchronizer Spring (F5M42)

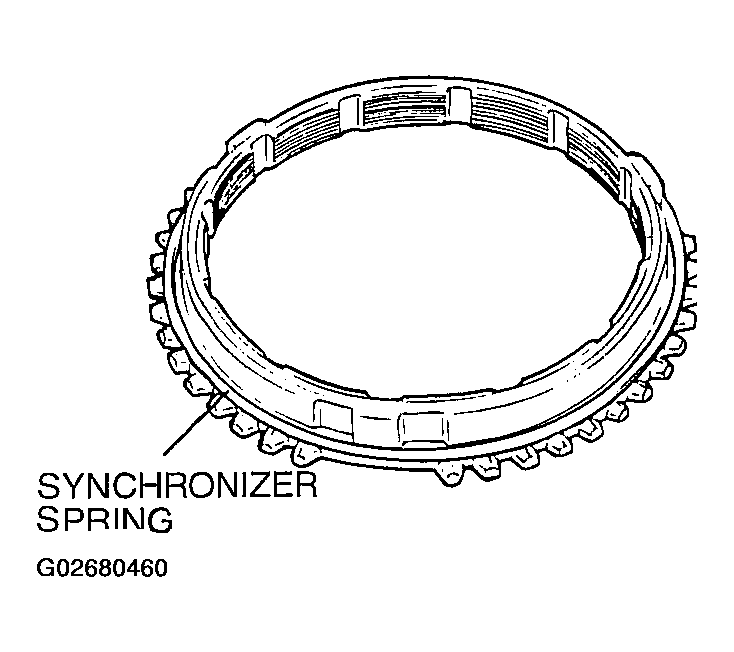

Fig 2: Installing Synchronizer Spring (F5M51)
