Disassembly And Assembly: Notes

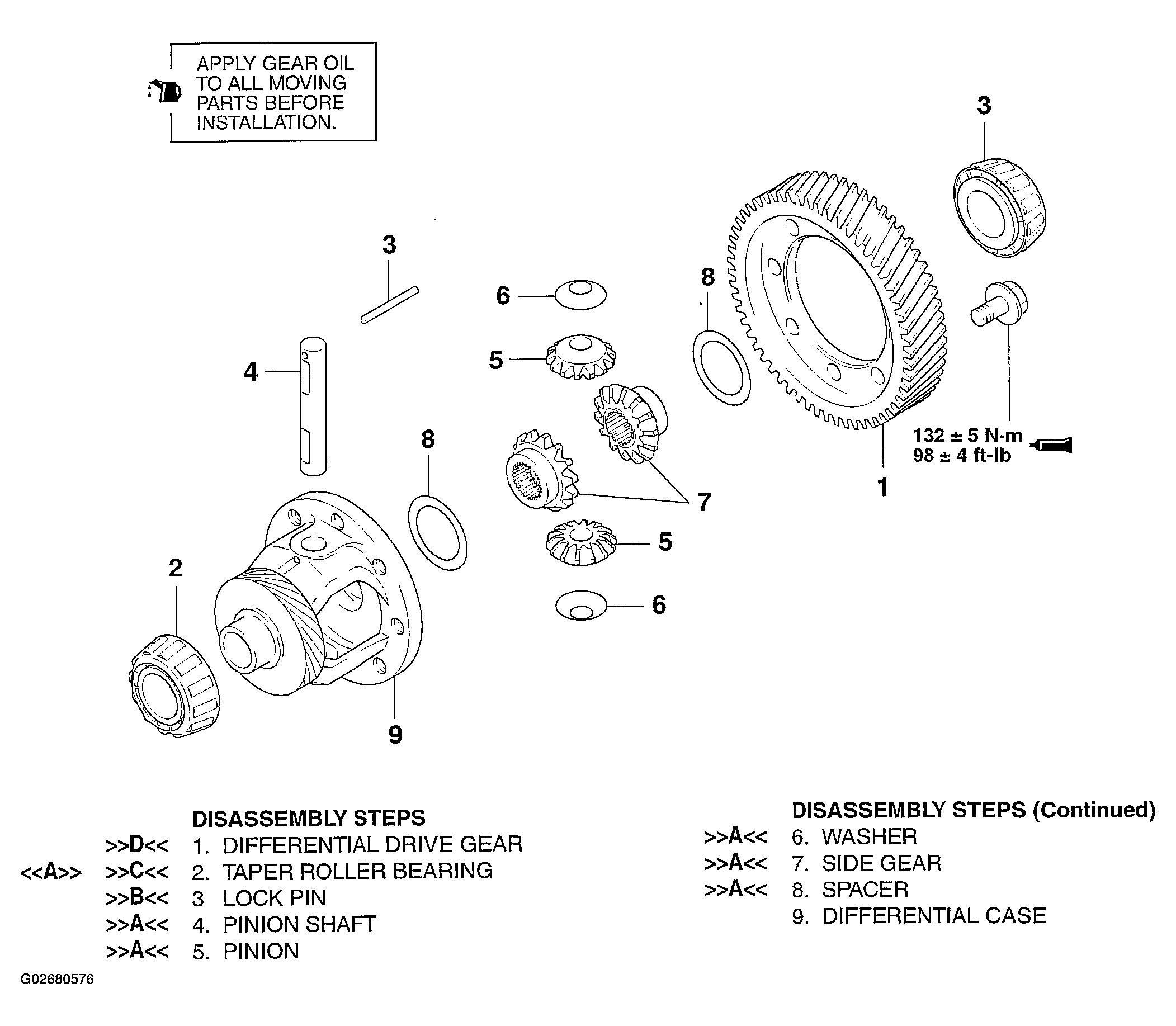

Fig 1: Differential Disassembly And Assembly
G02680576

Required Special Tools:

MD99S801: Bearing Remover

MD998812: Installer Cap

MD998819: Installer Adapter (40)
