Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Component Location |
|---|---|

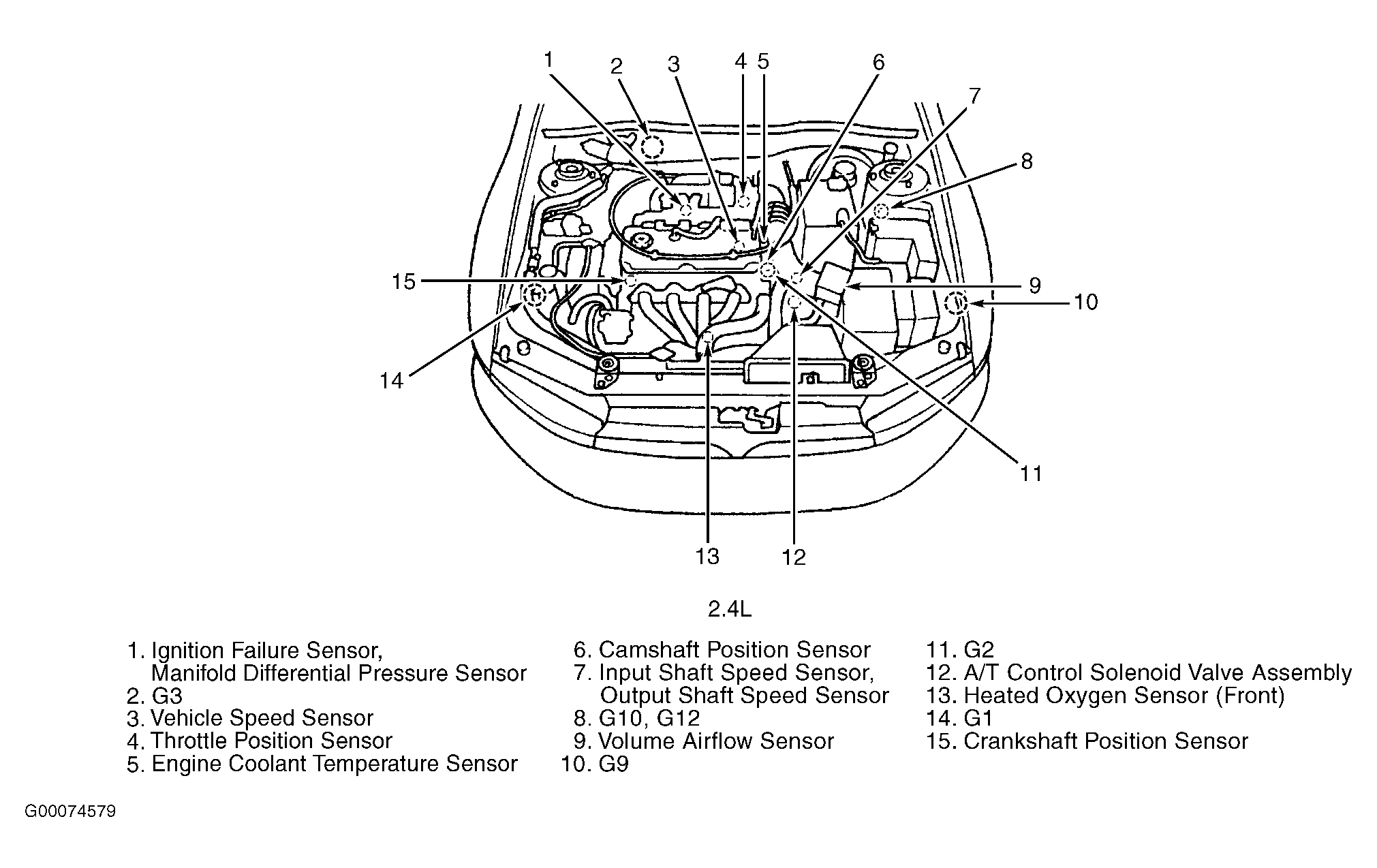

| G1 (2.4L) | At right front of engine compartment. See Figure . |

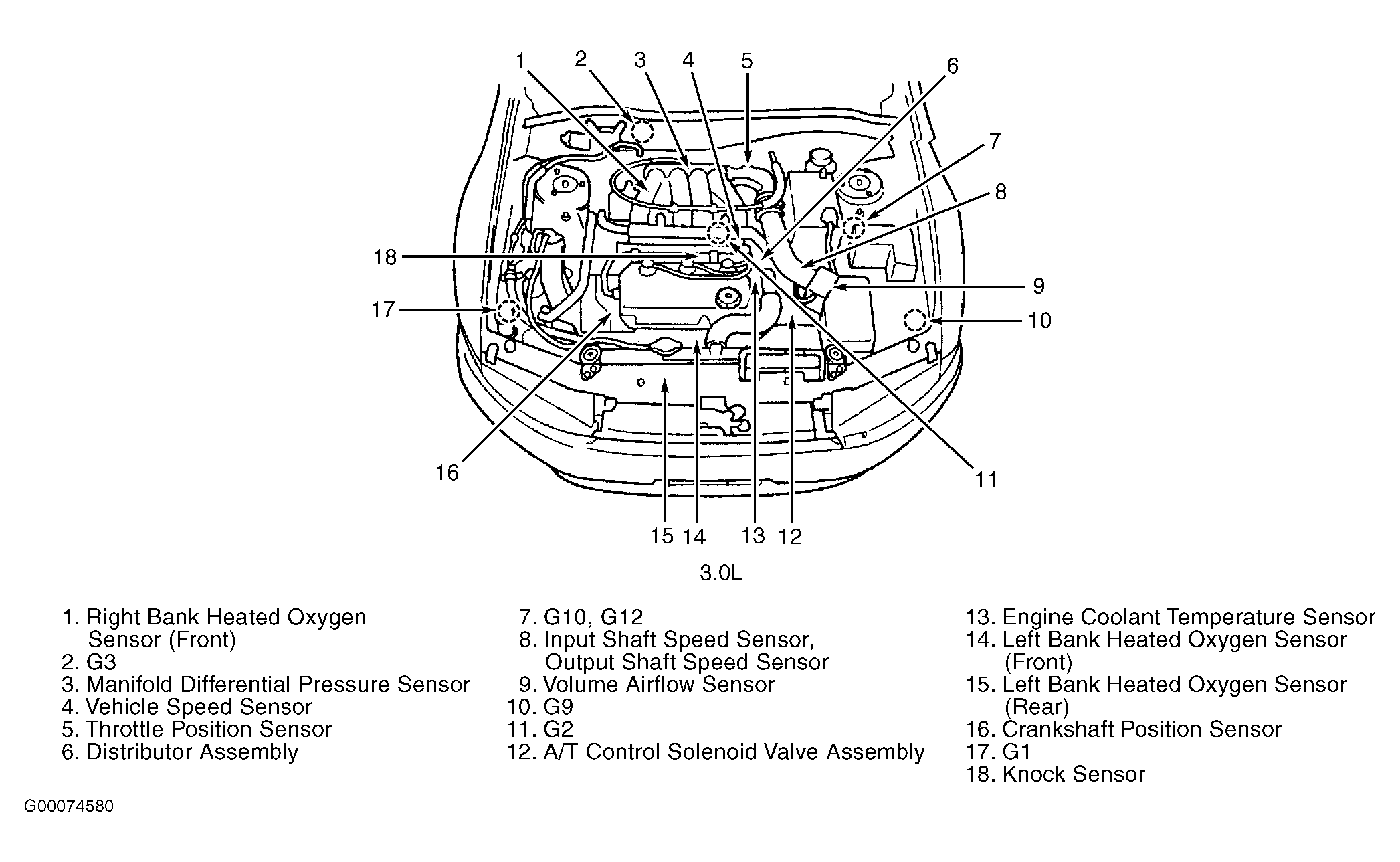

| G1 (3.0L) | At right front of engine compartment. See Figure . |
| G2 (2.4L) | At rear center of cylinder head. See Figure . |
| G2 (3.0L) | At left rear of intake manifold. See Figure . |
| G3 (2.4L) | On right side of firewall, next to windshield wiper motor. See Figure . |
| G3 (3.0L) | On right side of firewall, next to windshield wiper motor. See Figure . |

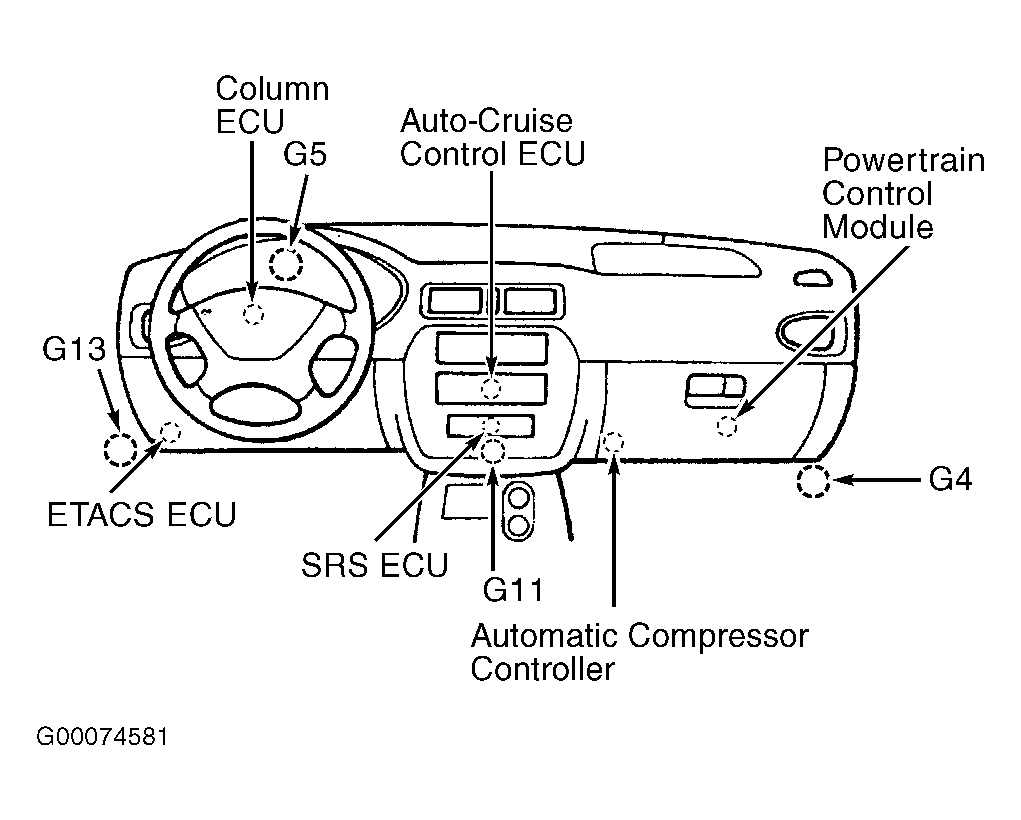

| G4 | In cabin in right footwell, below powertrain control module. See Figure . |
| G5 | Behind left side of dash. See Figure . |
| G6 | In right front of luggage compartment, to right of trunklid hinge. |
| G7 | In left front of luggage compartment, to left of trunklid hinge. |
| G8 | At left rear of engine. |
| G9 (2.4L) | At left front of engine compartment. See Figure . |
| G9 (3.0L) | At left front of engine compartment. See Figure . |
| G10 (2.4L) | At left front of engine compartment, left of battery. See Figure . |
| G10 (3.0L) | At left front of engine compartment, left of battery. See Figure . |
| G11 | Under dash, to right of center reinforcement. See Figure . |
| G12 (2.4L) | At left front of engine compartment, on left strut tower. See Figure . |
| G12 (3.0L) | At left front of engine compartment, on left strut tower. See Figure . |
| G13 | At left kick panel, below junction block. See Figure . |
| G14 | Under headliner, near interior rear view mirror. |
