Power Window Switch Test: Notes

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY or SUB-SWITCH CONTINUITY table. See Fig 1-Fig 5 . Replace appropriate switch as necessary.

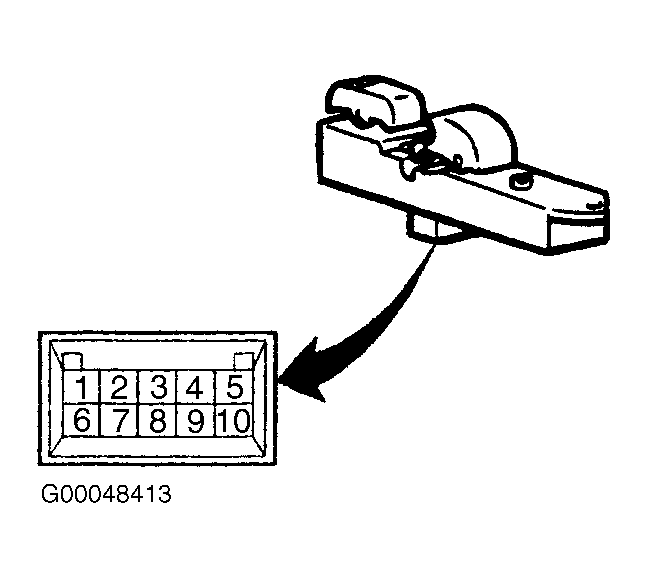

Fig 1: Power Window Connector ID (Mirage - Main Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

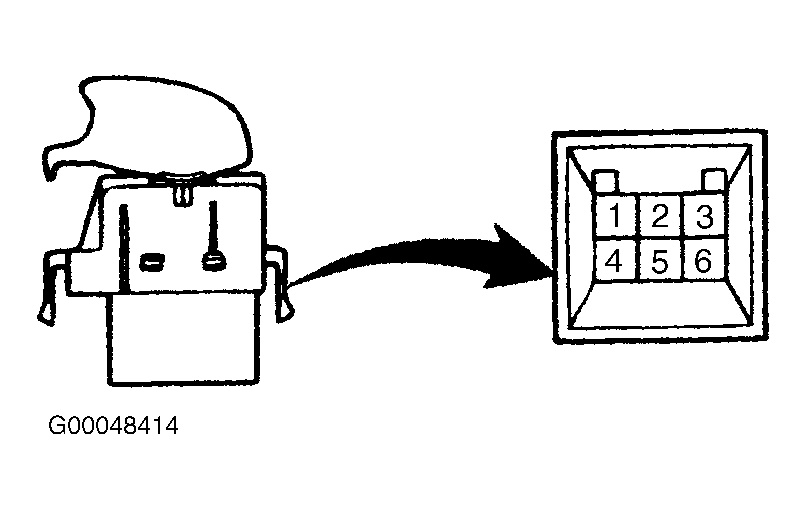

Fig 2: Power Window Connector ID (Montero & Montero Sport - Main Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Power Window Connector ID (Montero - Front Sub-Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Power Window Connector ID (Montero - Rear Sub-Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Power Window Connector ID (Montero Sport - Sub-Switch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
