System Tests: Notes

NOTE: System testing information for Mirage NOT available from manufacturer. For Montero and Montero Sport perform specified procedure. See Fig 1 or Fig 2 . Montero Sport testing applies to vehicles with keyless entry system only.

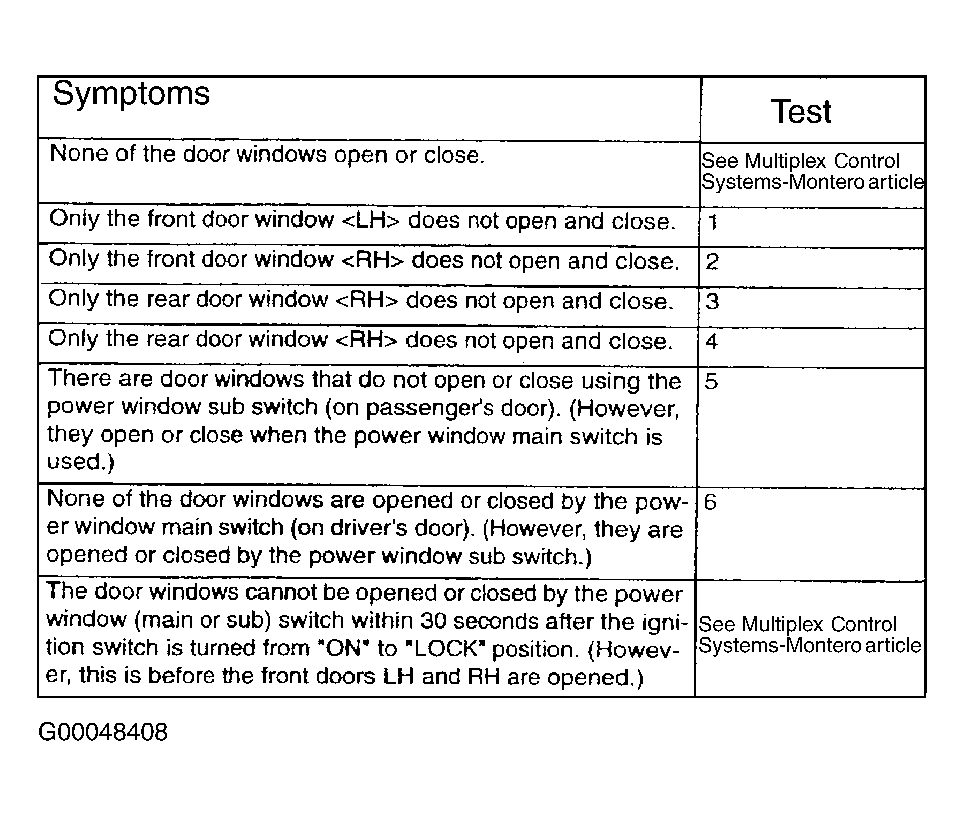

Fig 1: Symptom Index Table (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

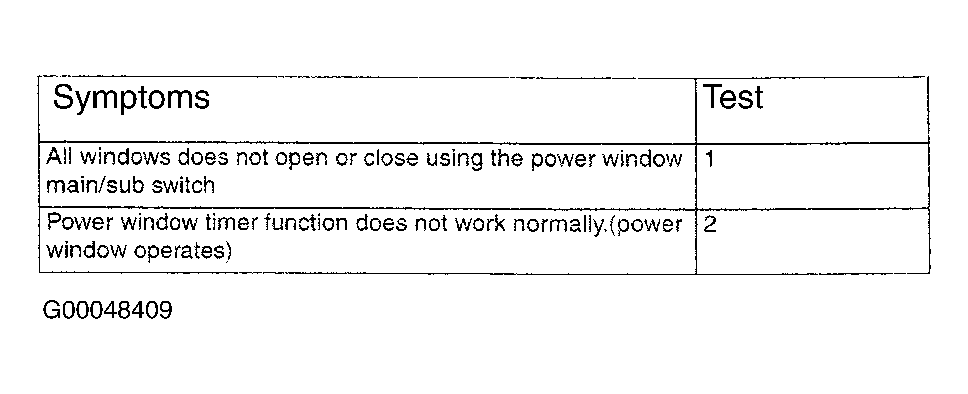

Fig 2: Symptom Index Table (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
