Removal And Installation: Notes

WARNING: Before removing the steering gear box, see AIR BAG RESTRAINT SYSTEMS article. Also see STEERING COLUMN SWITCHES article. Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

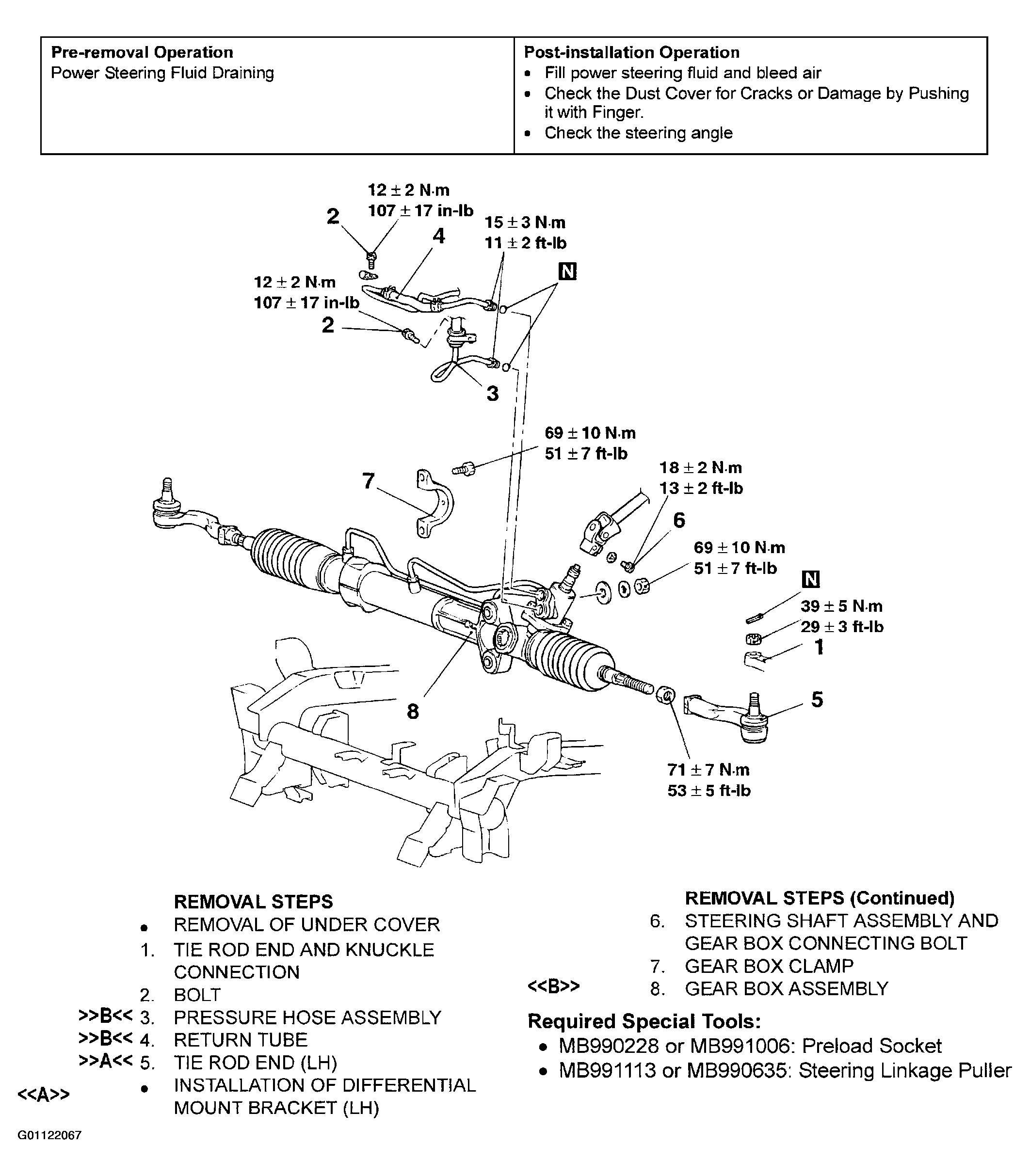

Fig 1: Removing Steering Gear Assembly
G01122067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
