Scan Tool Data

During normal ABS operation following items can be read with scan tool. See Fig 1 - Fig 3 . If on board diagnostics stops ABS operation, scan tool data display will not be readable.

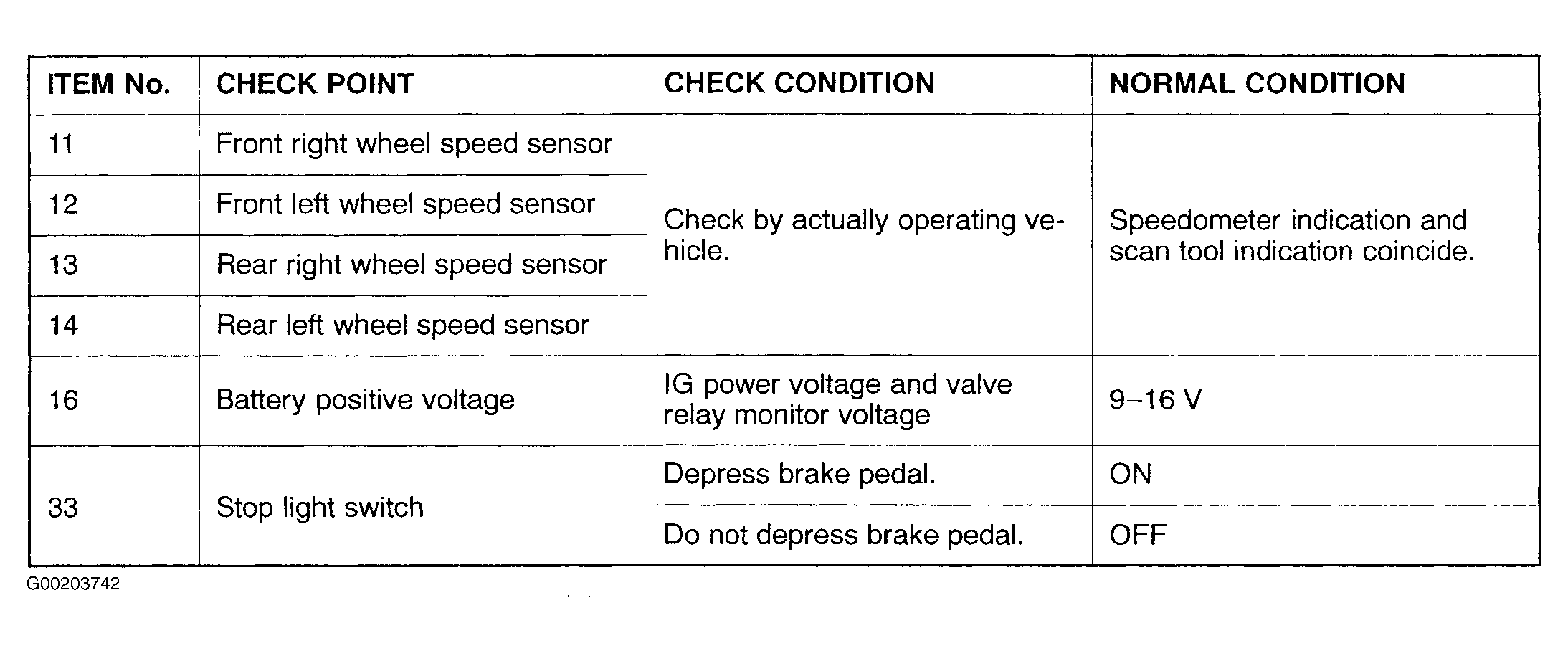

Fig 1: Scan Tool Data List (ABS)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

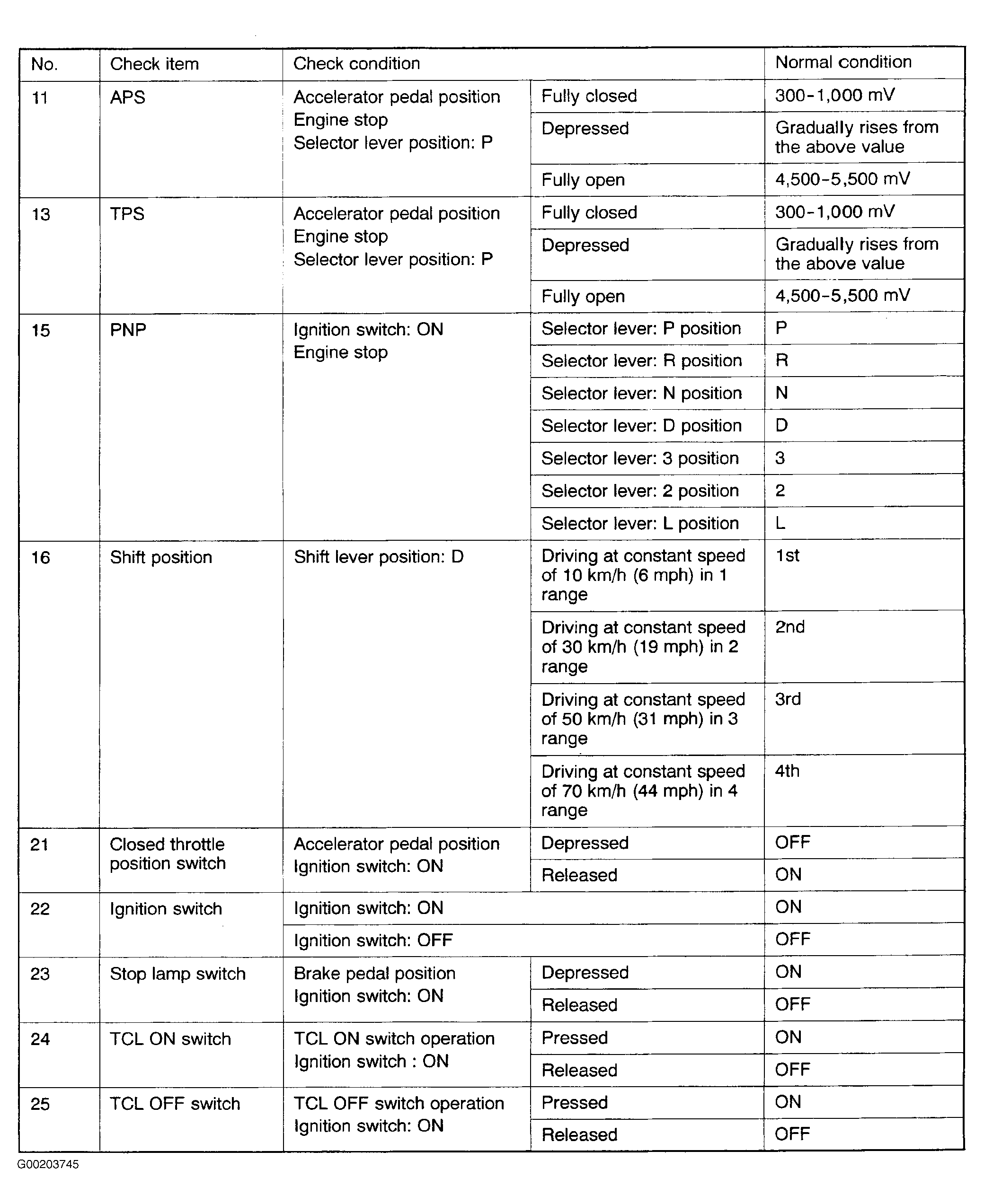

Fig 2: Scan Tool Data List (TCS - 1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

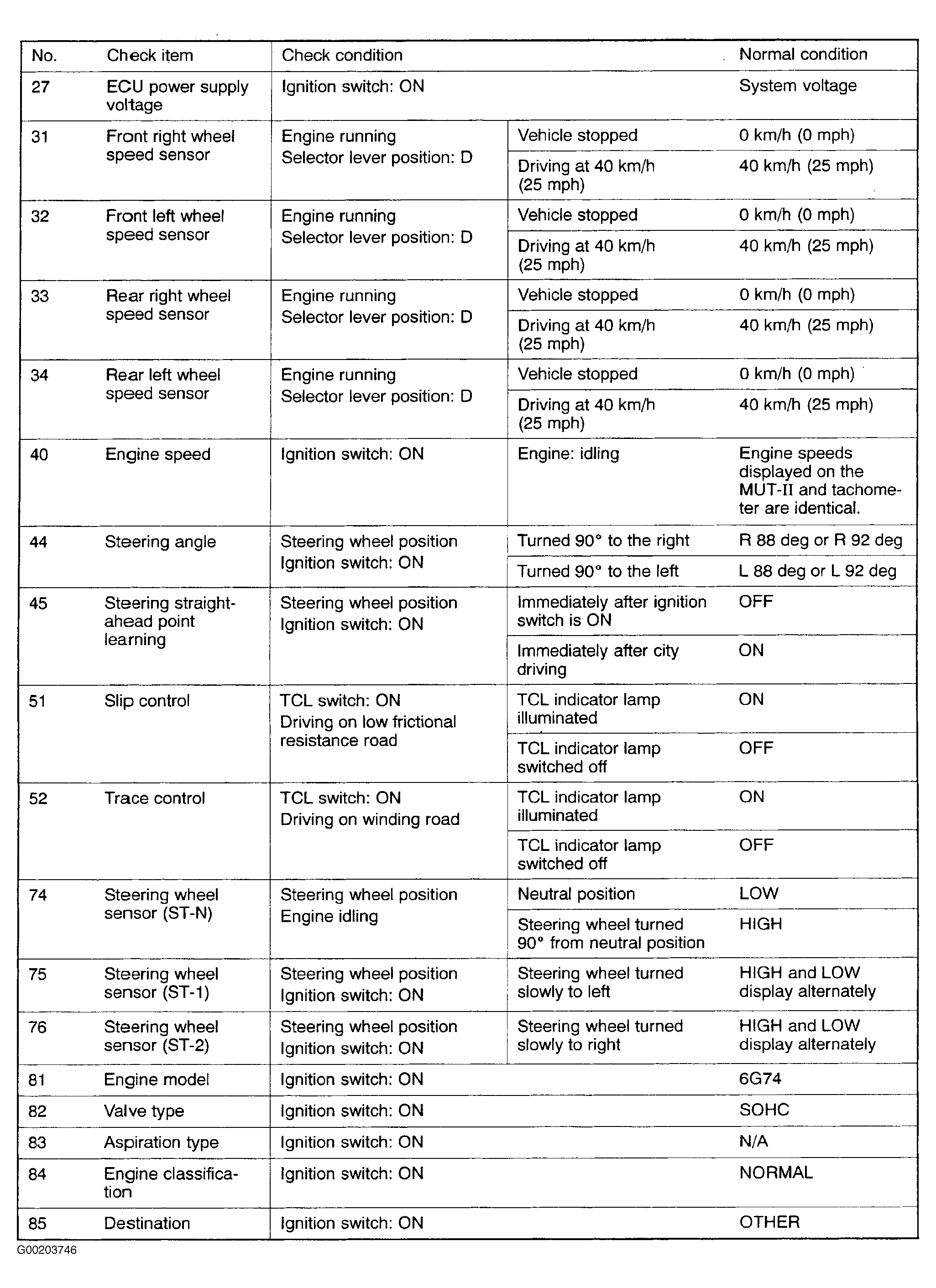

Fig 3: Scan Tool Data List (TCS - 2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
