Sectional View: F4A42

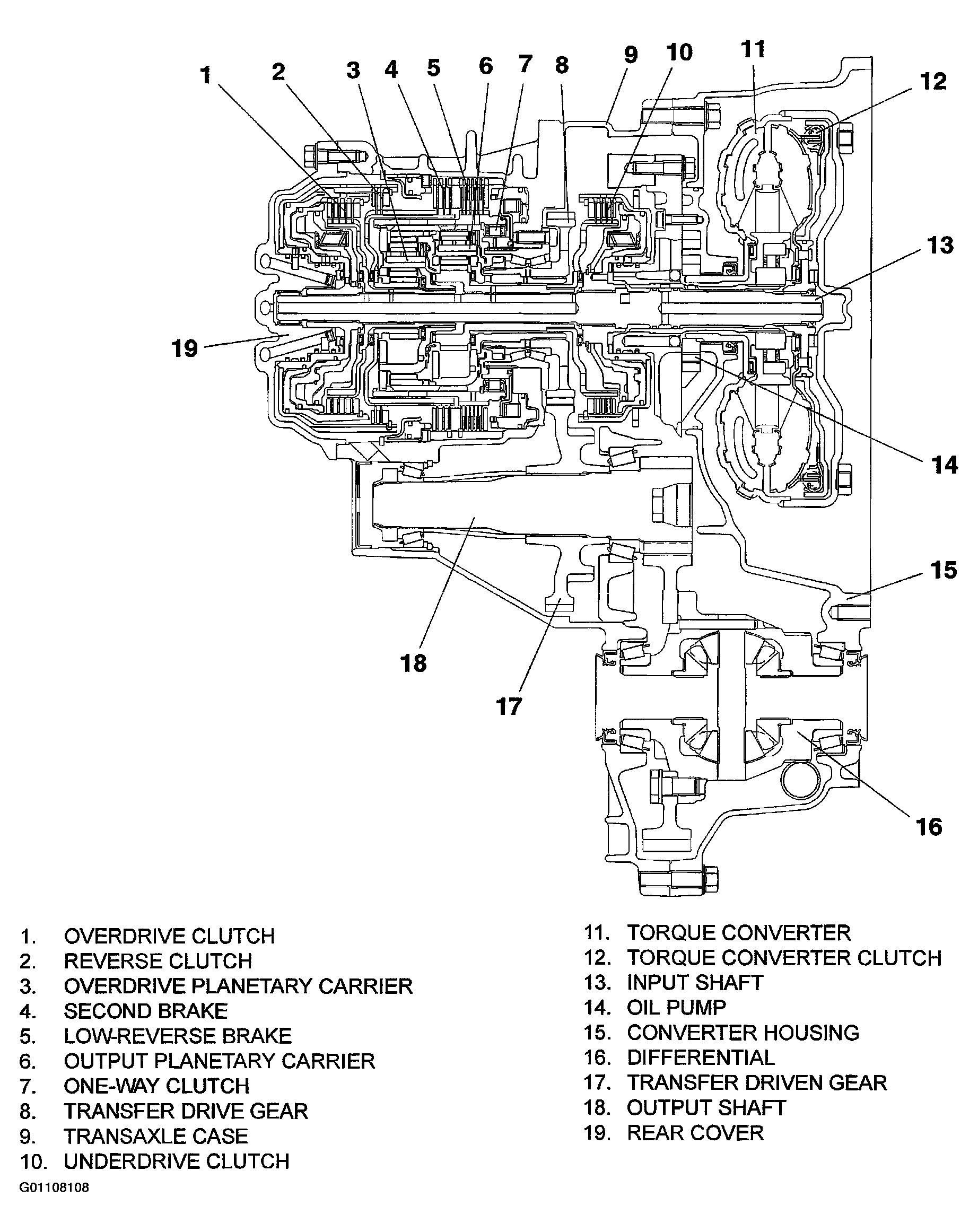

Fig 1: Identifying Sectional View Of Automatic Transaxle (F4A42)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
