INSPECTION PROCEDURE 2: Compass is not Displayed.: Notes

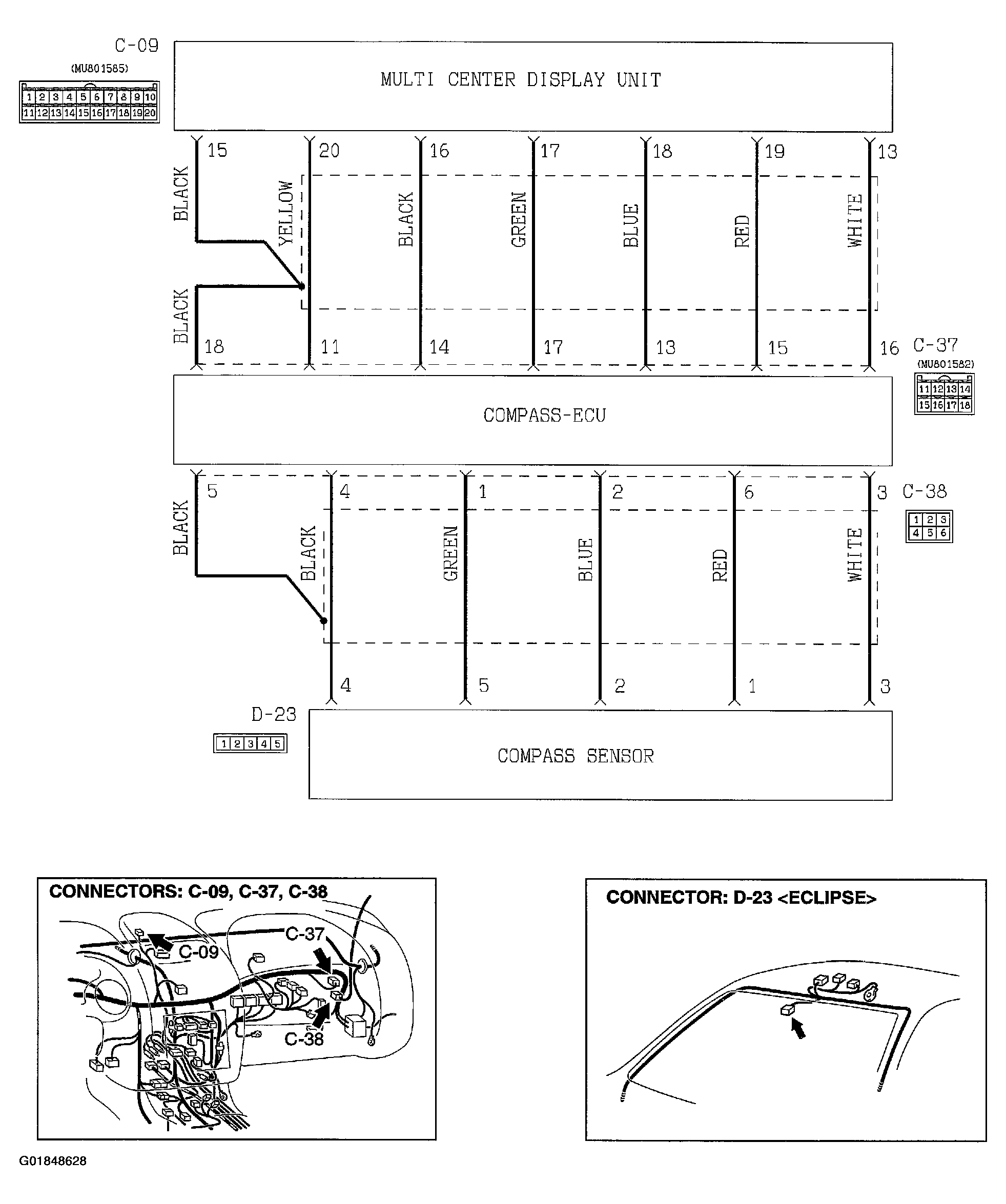

Fig 1: Identifying Compass Circuit & Locating Connectors
G01848628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

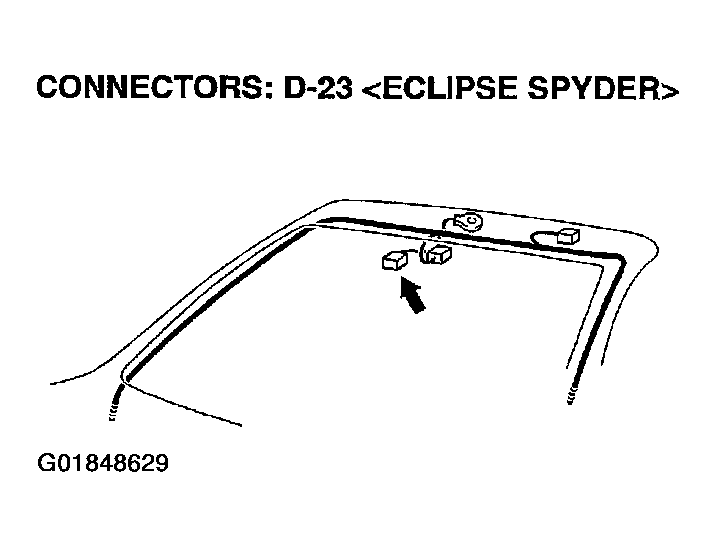

Fig 2: Locating Connector D-23
G01848629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
