INSPECTION PROCEDURE 1: None of the Quarter Windows are Open or Close.: Notes

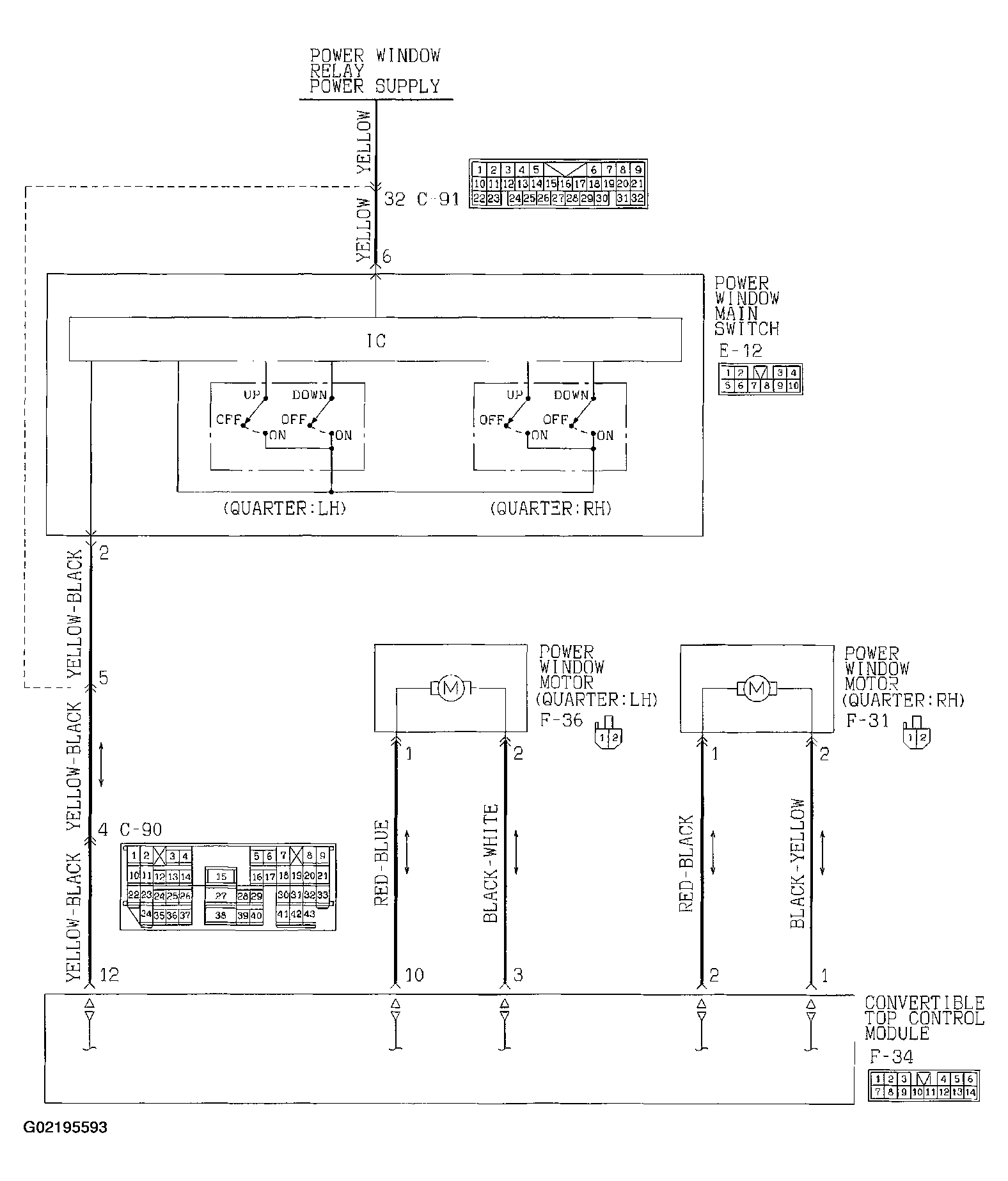

Fig 1: Circuit Diagram
G02195593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

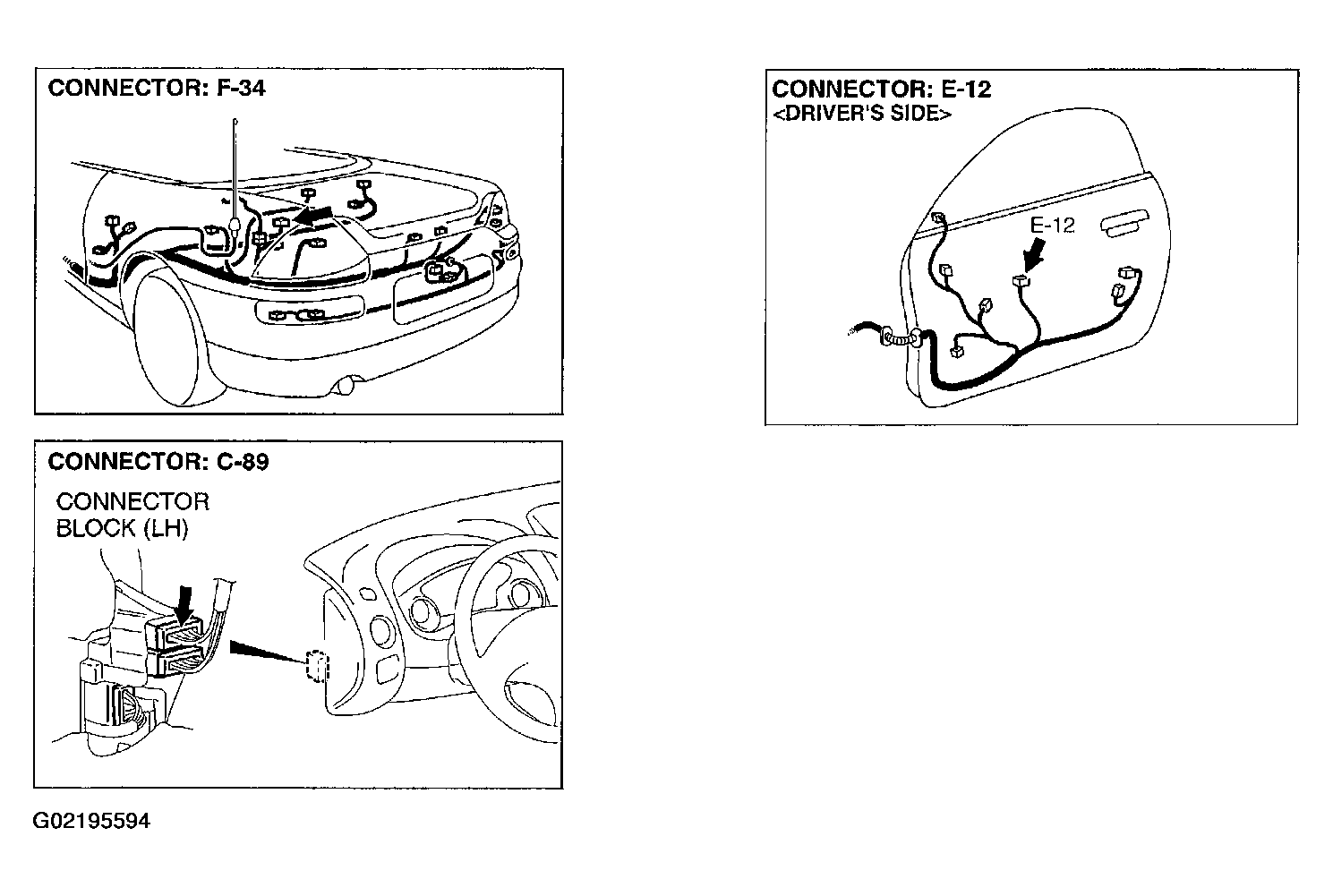

Fig 2: Connector Locations
G02195594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
