Radiator Cooling Fan Control Relay (Lancer)

Remove radiator cooling fan relay. Check continuity between radiator cooling fan relay terminals No. 2 and 4. See Fig 1. Continuity should exist. Connect jumper wire between battery positive terminal and radiator cooling fan relay terminal No. 1. Connect second jumper wire between battery negative terminal and radiator cooling fan relay terminal No. 3. With relay energized, continuity should exist between terminals No. 2 and 4. With power source removed, continuity should not exist between terminals No. 2 and 4. If relay does not test as specified, replace radiator cooling fan relay.

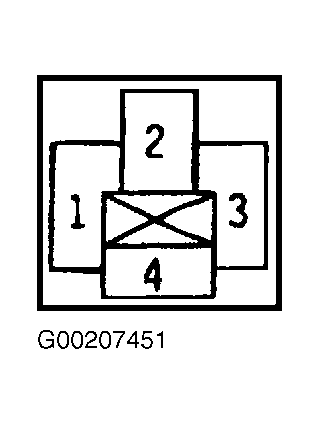

Fig 1: Identifying Radiator Cooling Fan Relay Terminals (Lancer)
G00207451Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
