Removal & Installation (Montero)

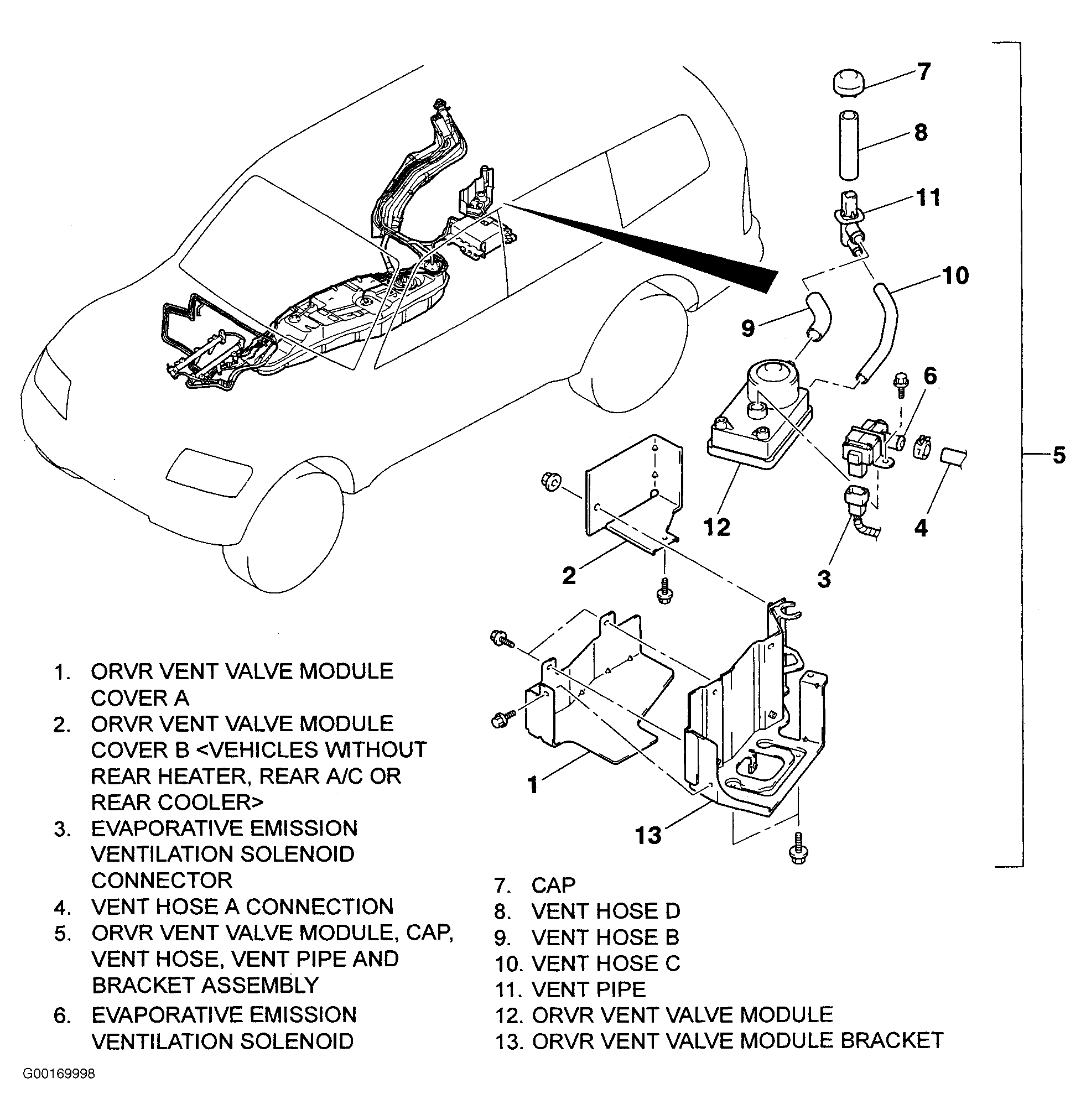

  1. Raise and support vehicle. Remove Onboard Refueling Vapor Recovery (ORVR) vent valve module cover "A". See Figure. On vehicles not equipped with rear heater, rear A/C or rear cooler, remove ORVR vent valve module cover "B".
  2. On all models, disconnect EVAP emission ventilation solenoid connector. Disconnect vent hose connection at EVAP emission ventilation solenoid. Remove EVAP emission ventilation solenoid.
  3. Remove vent pipe, cap and hoses from ORVR vent valve module. Remove bracket from ORVR vent valve module. To install, reverse removal procedure.
