Relieving Fuel Pressure (Lancer)

Remove rear seat cushion and remove access plate to gain access to fuel pump module harness connector. See Fig 1. Disconnect fuel pump module harness connector. Start engine. Allow engine to operate until it stalls. Turn ignition off. Reconnect fuel pump harness connector after repairs are completed. Reinstall access plate and rear seat cushion.

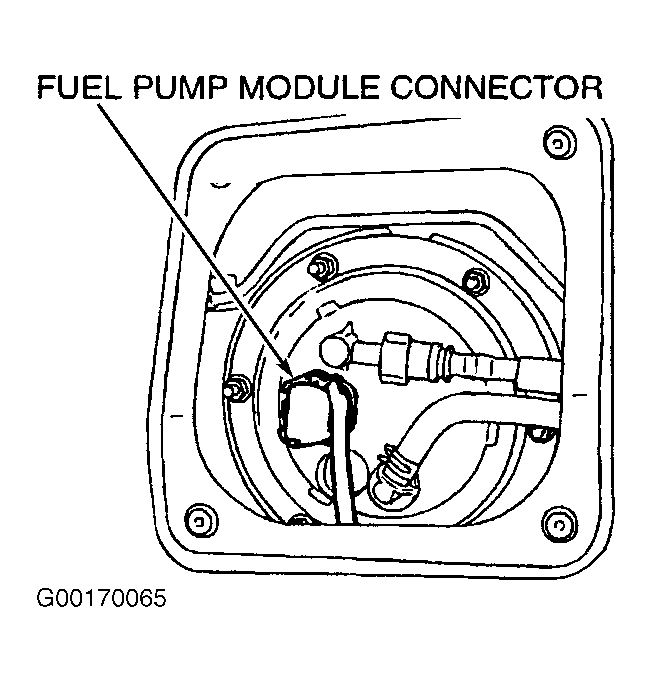

Fig 1: Locating Fuel Pump Module Connector (Lancer)
G00170065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
