Valve Body Spring Identification Table

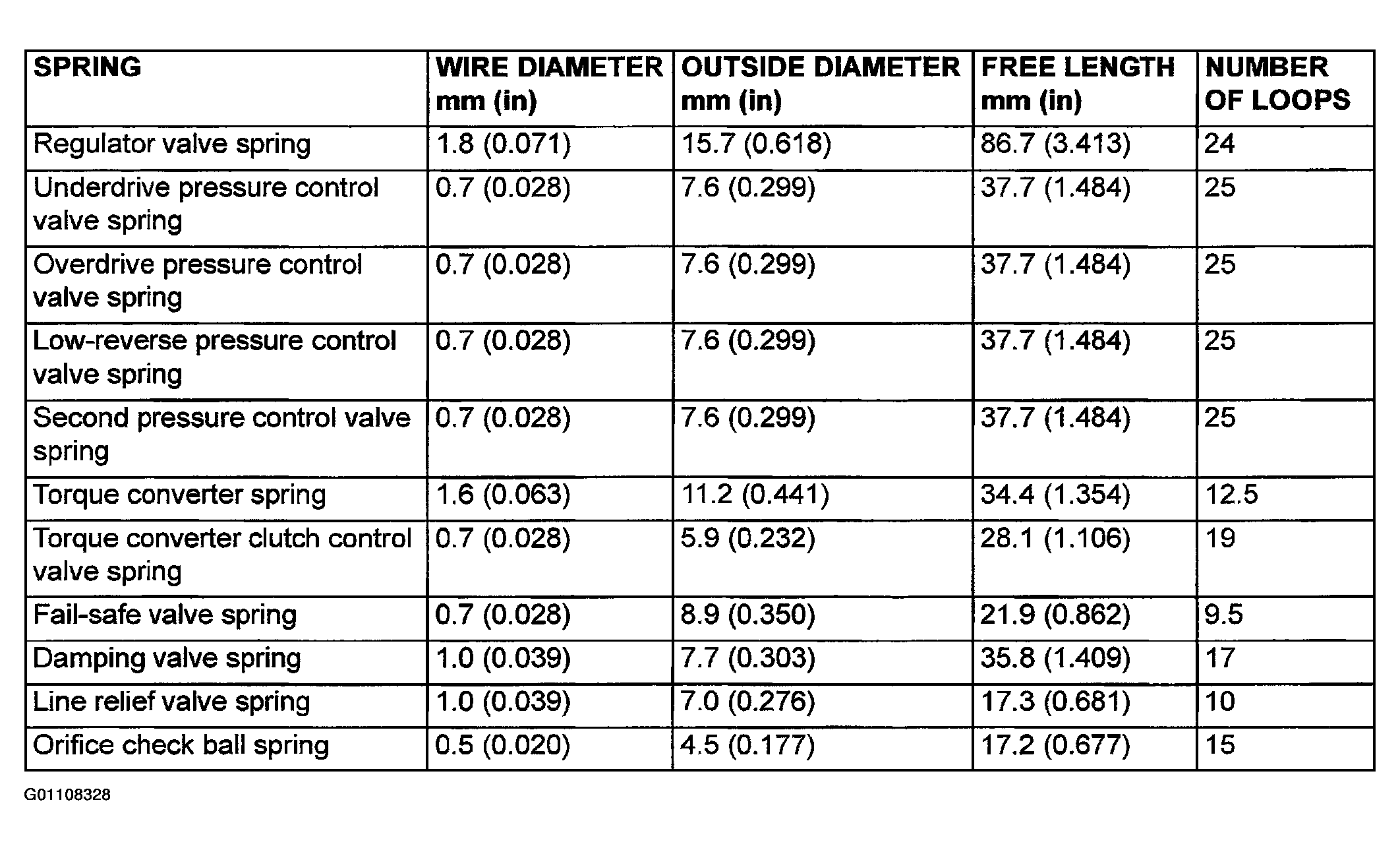

Fig 1: Identifying Valve Body Spring Specifications
G01108328Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
