Pulse Check

  1. The input signals (signals other than SWS communication line signals), which are compatible with the SWS monitor by using the scan tool or voltmeter, can be confirmed by the Pulse Check.
  2. Use the scan tool or voltmeter to check the following input signals. See Fig 1.
    NOTE: If a problem is found the Pulse Check, proceed to DEFECTS FOUND DURING PULSE CHECK  table under SYSTEM TESTS.

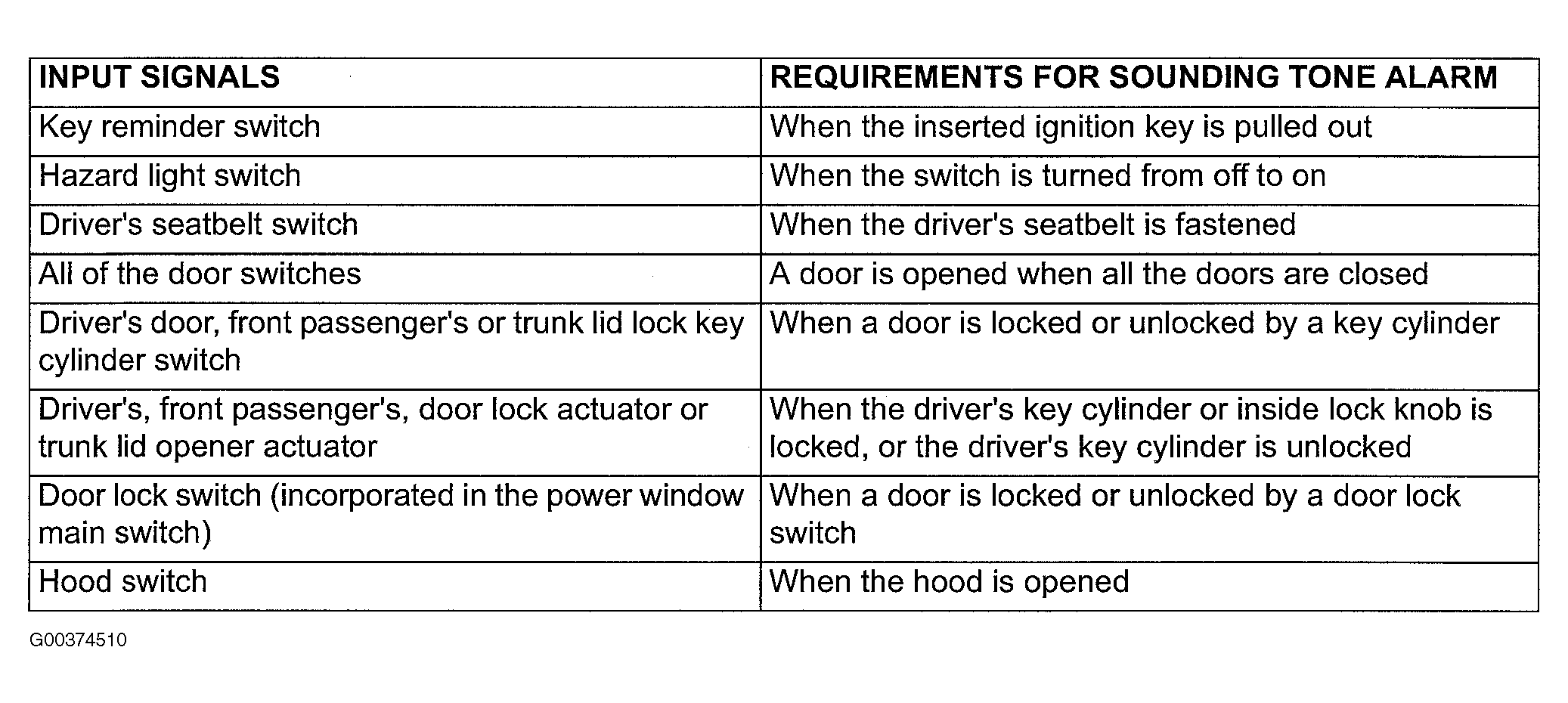

Fig 1: Pulse Check Switches & Their Conditions
G00374510Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
