Electric Remote Control Mirror Operation Check

Check that the mirror moves as described in the illustration when each terminal is connected to the battery.

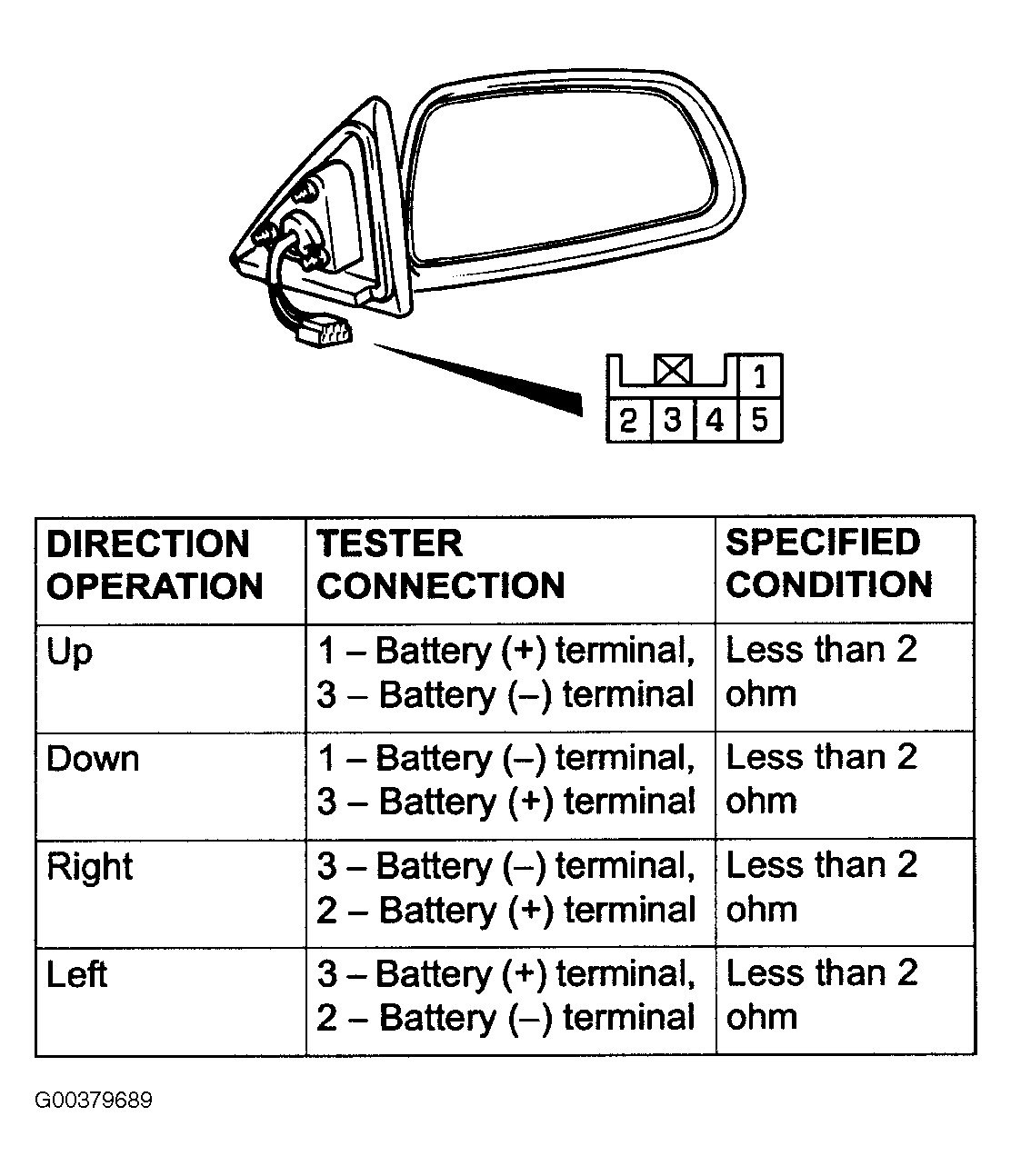

Fig 1: Electric Mirror Operation Check

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
