Lubrication And Sealing Points: Notes

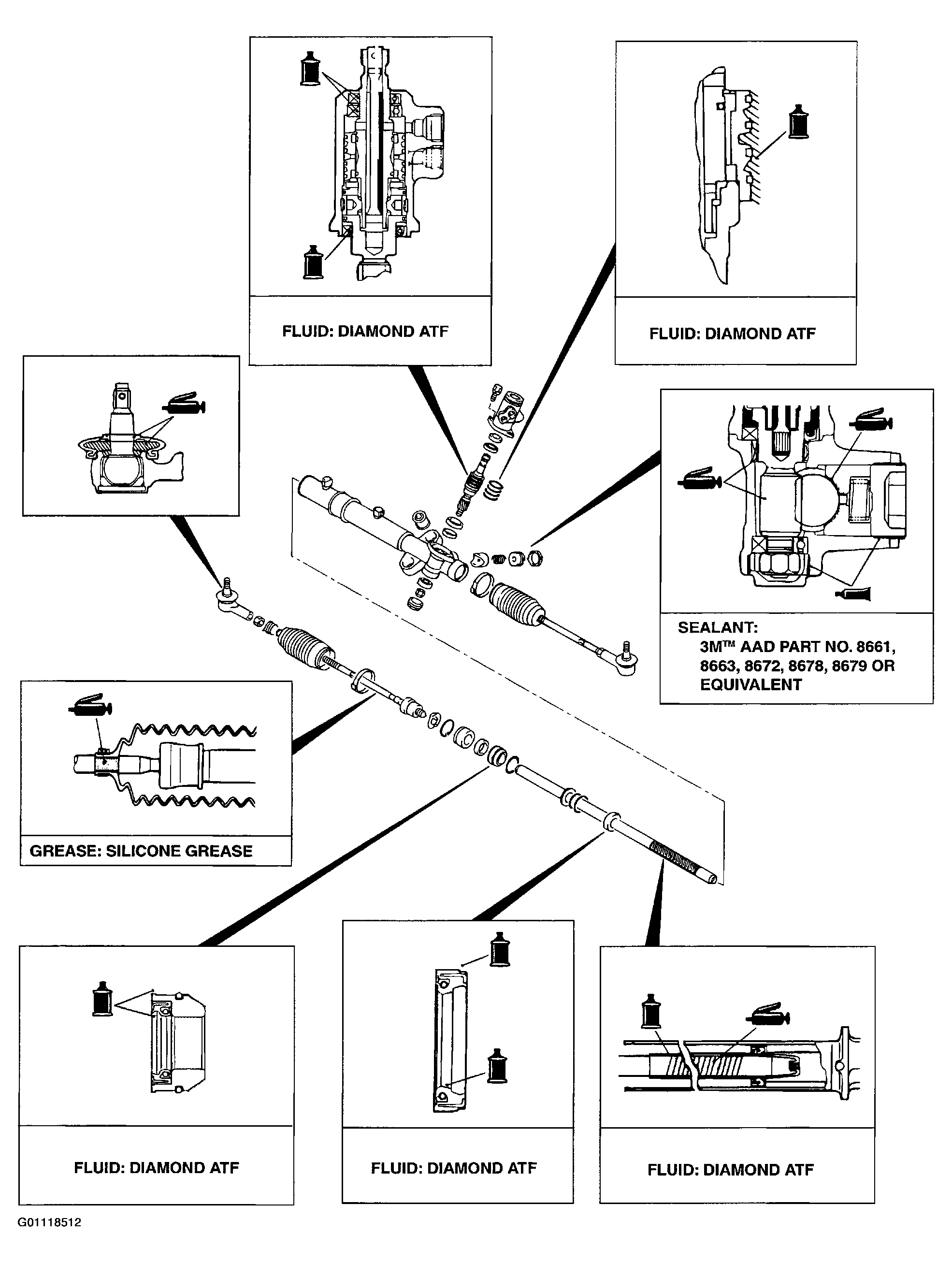

Fig 1: Identifying Lubrication & Sealing Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
