Removal And Installation: Notes

WARNING: Before removing the steering gear box, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING . Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

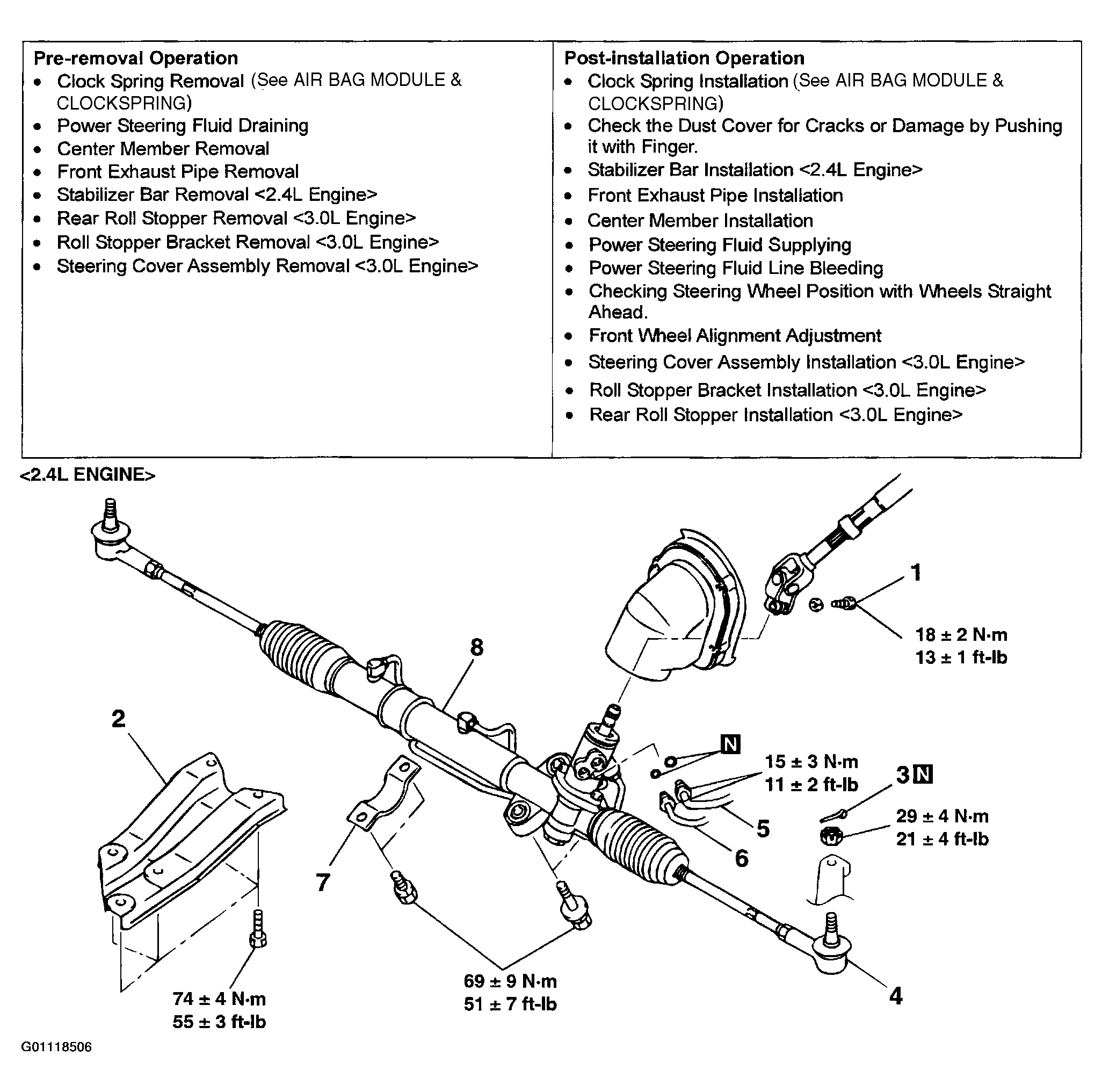

Fig 1: Removing & Installing Power Steering Gear Box Assembly (1 Of 2)
G01118506Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

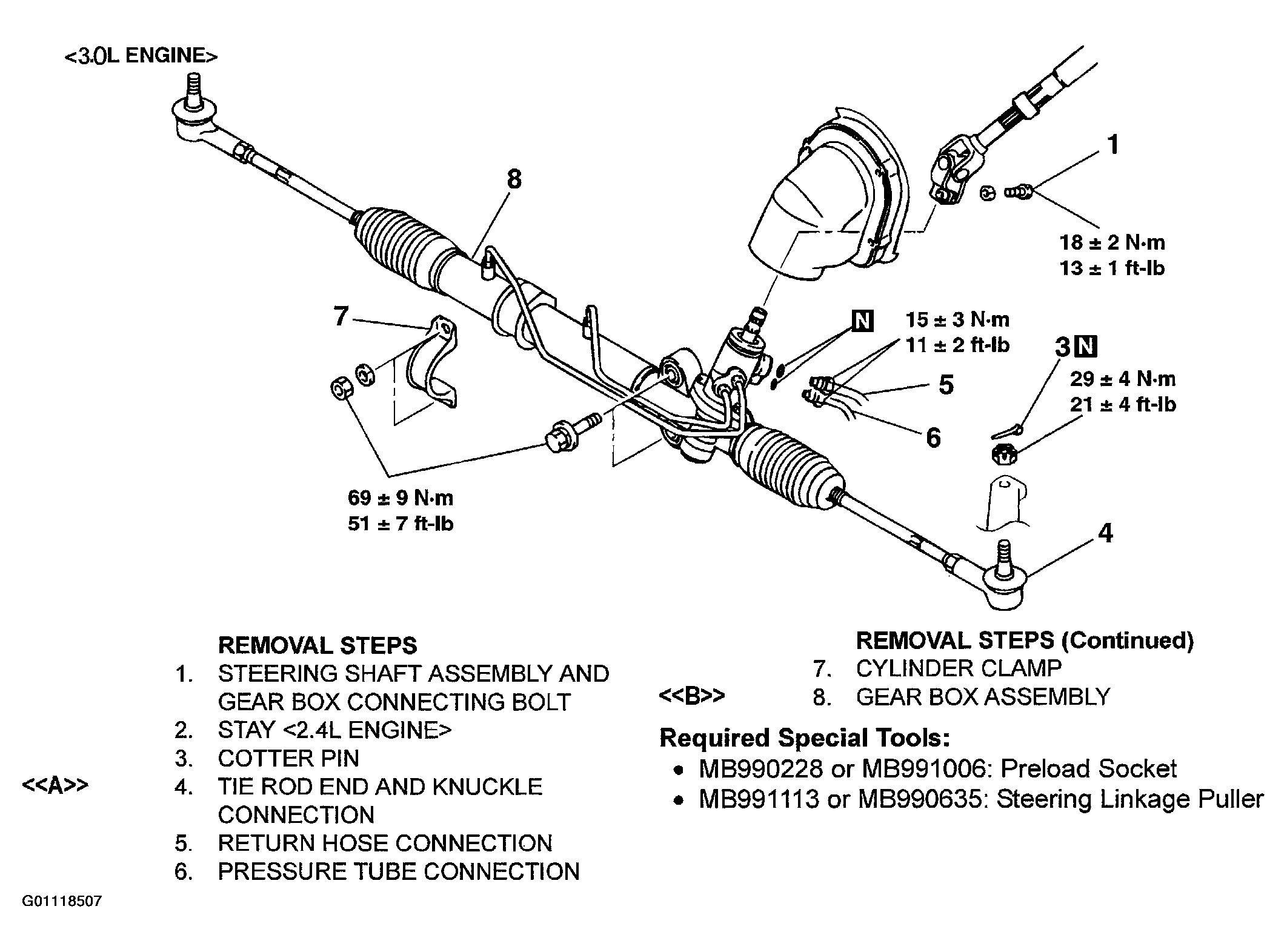

Fig 2: Removing & Installing Power Steering Gear Box Assembly (2 Of 2)
G01118507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
