>>C<< Snap Ring Installation

  1. Install the thickest snap ring that can be fitted in the snap ring groove of input shaft.

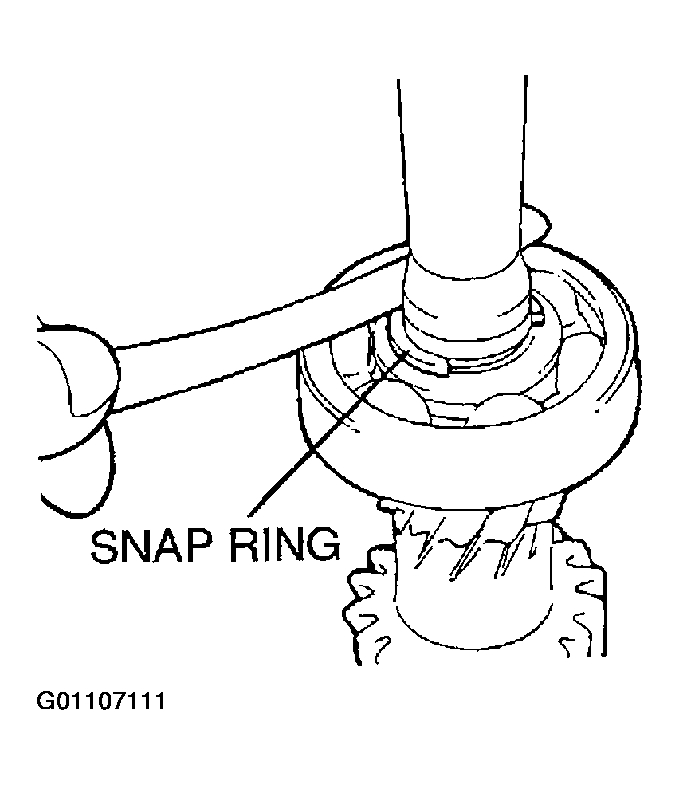

    Fig 1: Installing Snap Ring
    G01107111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Make sure that the ball bearing end play meets the standard value.
    1. Standard value: 0-0.12 mm (0 - 0.0047 inch)
