Outer Synchronizer Ring/Inner Synchronizer Ring/Synchronizer Cone

CAUTION: When any of the outer ring, inner ring or cone has to be replaced, replace them as a set.

Check to ensure that the clutch gear tooth surface and cone surface are not damaged and broken.

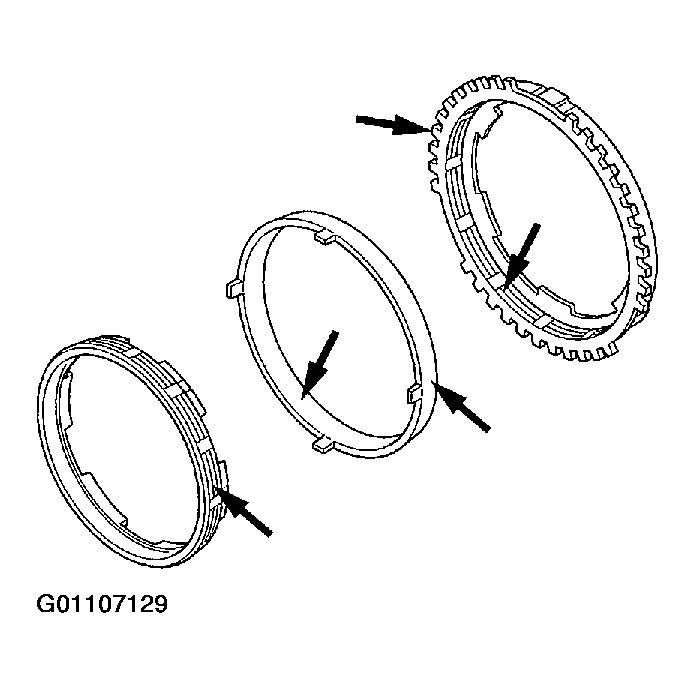

Fig 1: Checking Outer Ring, Inner Ring & Cone
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the press them against the gear, and check clearance "A." If "A" is less than the limit, replace.
1. Limit: 0.5 mm (0.020 inch)

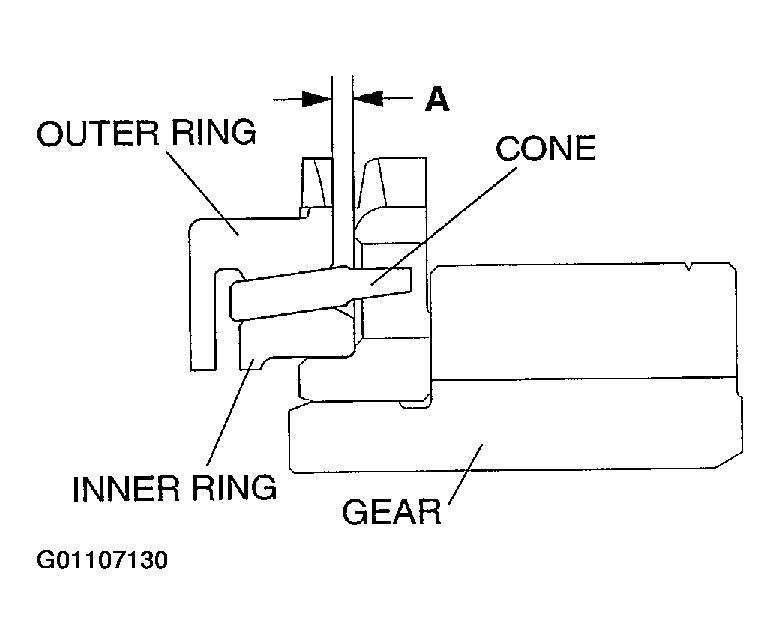

Fig 2: Checking Outer Ring, Inner Ring & Cone Clearance
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
