>>M<< Select Lever Installation

  1. Apply grease (Mitsubishi Genuine Part number 0101011 or equivalent) to the control shaft sliding portion of the select lever shoe.

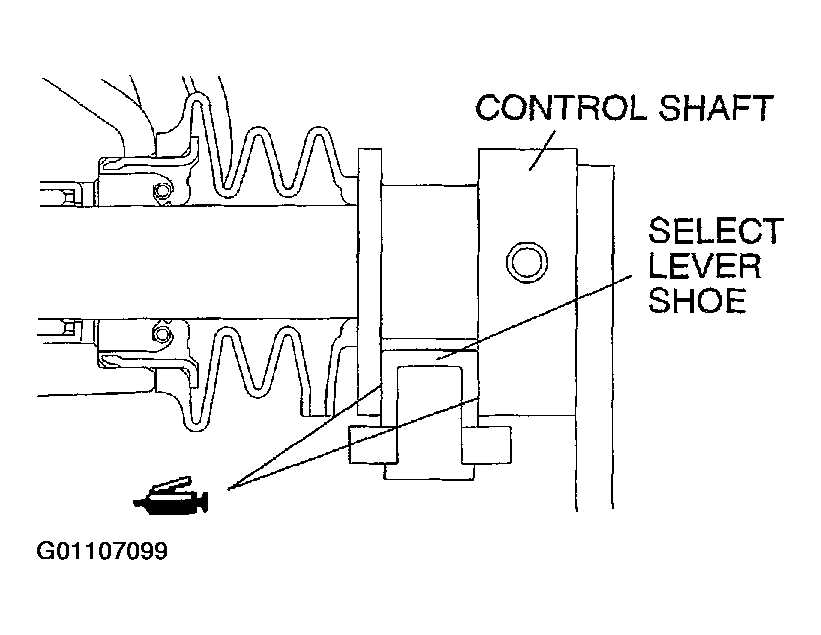

    Fig 1: Applying Grease To Control Shaft Sliding Portion Of Select Lever Shoe
    G01107099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the select lever and tighten the bolts to specified torque.
    1. Tightening torque: 19 +/- 3 N.m (14 +/- 2 ft-lb)
