Disassembly And Assembly

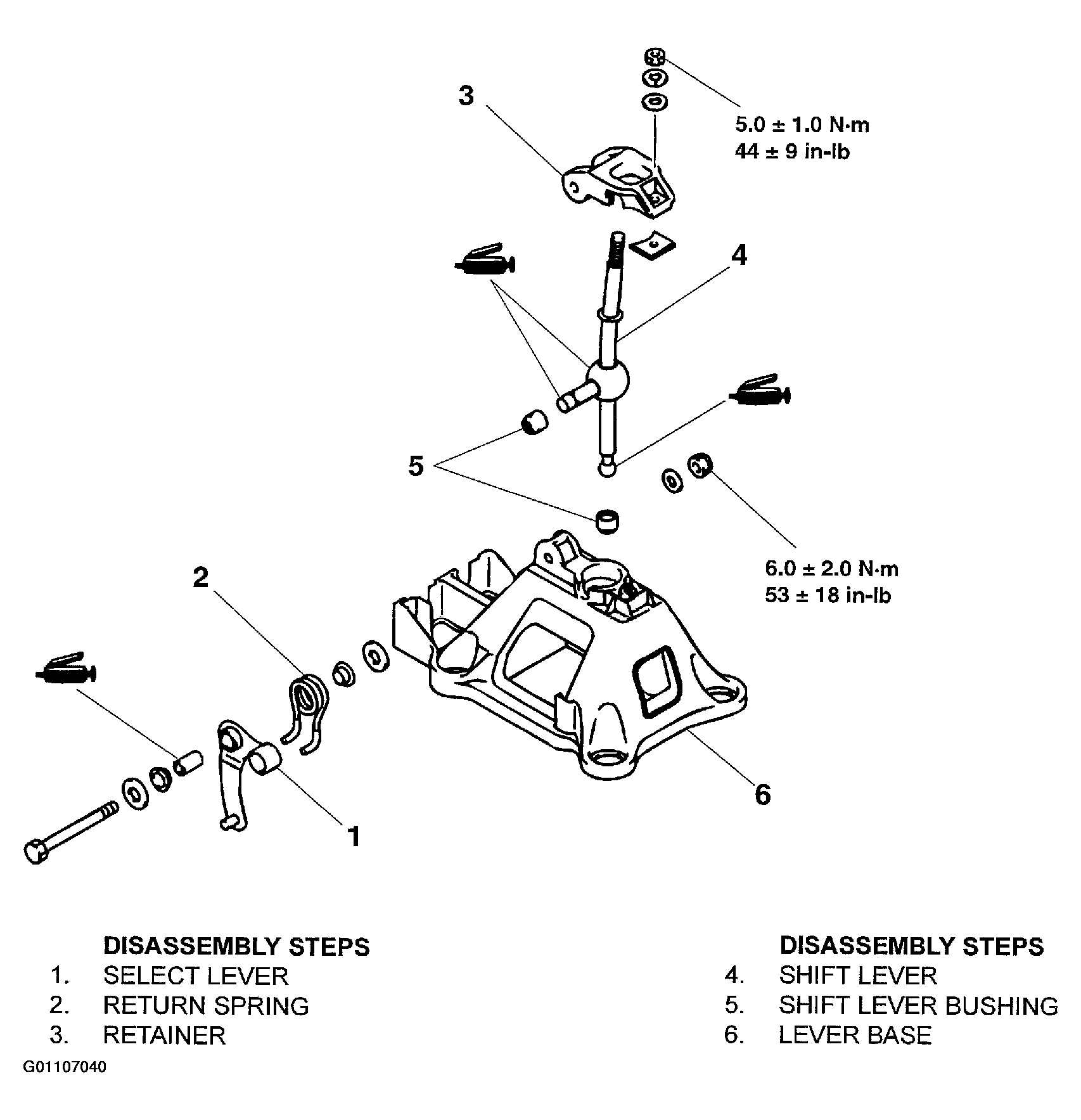

Fig 1: Shift Lever Disassembly & Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
