A/T Fluid Temperature Sensor Continuity Check

Remove the A/T fluid temperature sensor.

NOTE: The N range indicator light on the combination meter flashes when the temperature reaches approximately 125°C (257°F) or higher, and then stops flashing when the temperature drops below approximately 115°C (238°F).

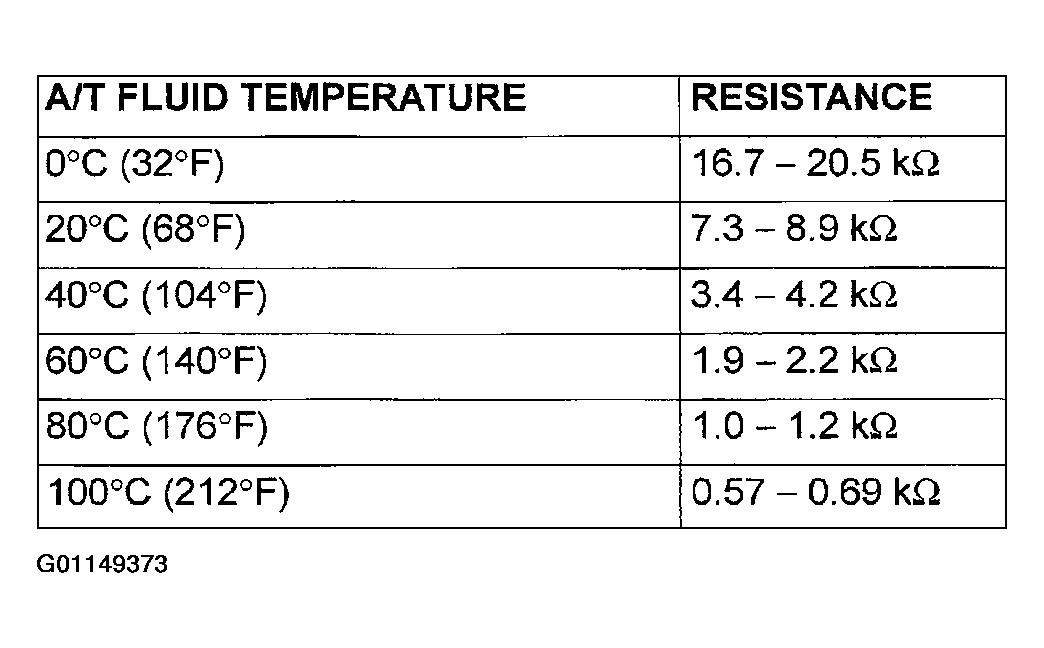

Fig 1: Identifying A/T Fluid Temperature Sensor Continuity Standard Values

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

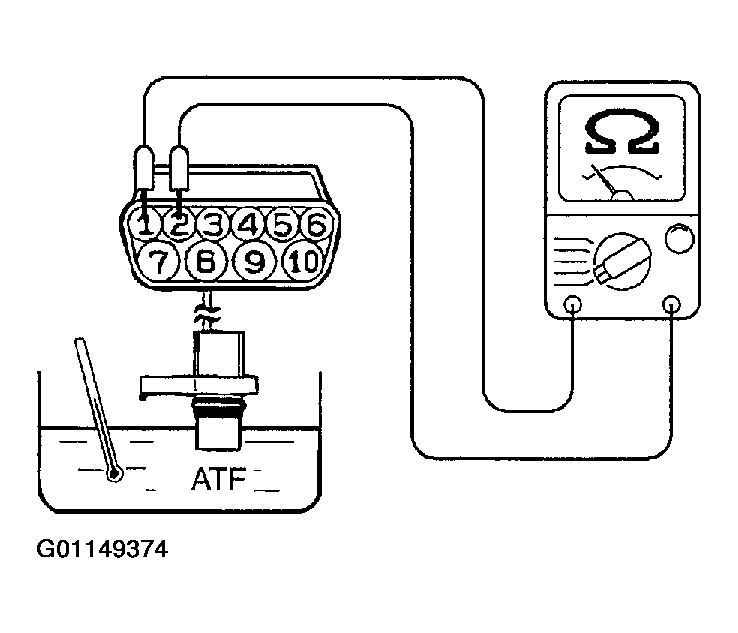

Fig 2: Checking A/T Fluid Temperature Sensor Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Measure the resistance between terminals 1 and 2 of the A/T fluid temperature sensor connector.
If the A/T fluid temperature sensor resistance and the temperature when the N range indicator light is flashing or switched off are outside the standard value ranges, replace the A/T fluid temperature sensor.
