Key Interlock Mechanism Check

Carry out the following inspection.

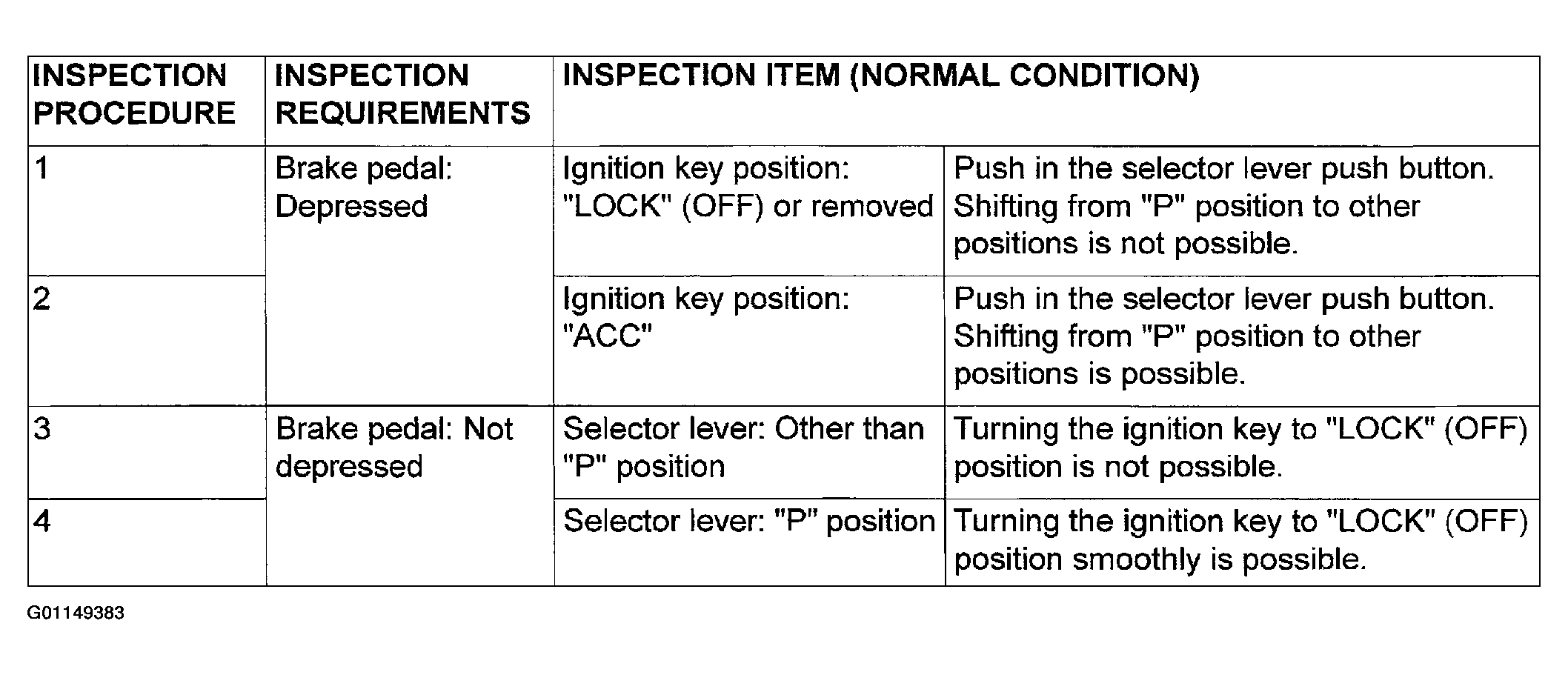

Fig 1: Checking Key Interlock Mechanism
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When any of the above checks are not normal, adjust the key interlock cable in following procedure.
1. Remove the floor console.

  Fig 2: Removing Floor Console Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Shift the selector lever to "P" position.
3. Turn the ignition key to "LOCK" (OFF) position.
4. Loosen the locking nut of the key interlock cable.
  Tightening torque: 11 N.m (97 in-lb)

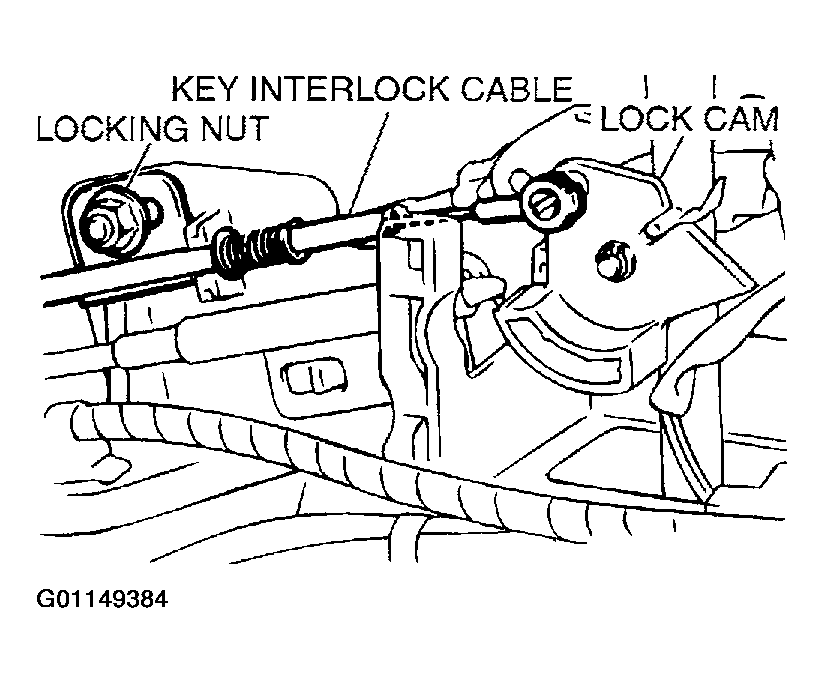

  Fig 3: Loosening Locking Nut Of Key Interlock Cable
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Push the cable joint on the lock cam gently toward the arrow until the cable stops. Tighten the locking nut.
6. Install the floor console.
After adjusting, check the operation once more. If the operation is still incorrect, replace the key interlock cable. See A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS .
