Stoplight Switch Check

  1. Connect an ohmmeter between the stoplight switch connector terminals.
  2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.

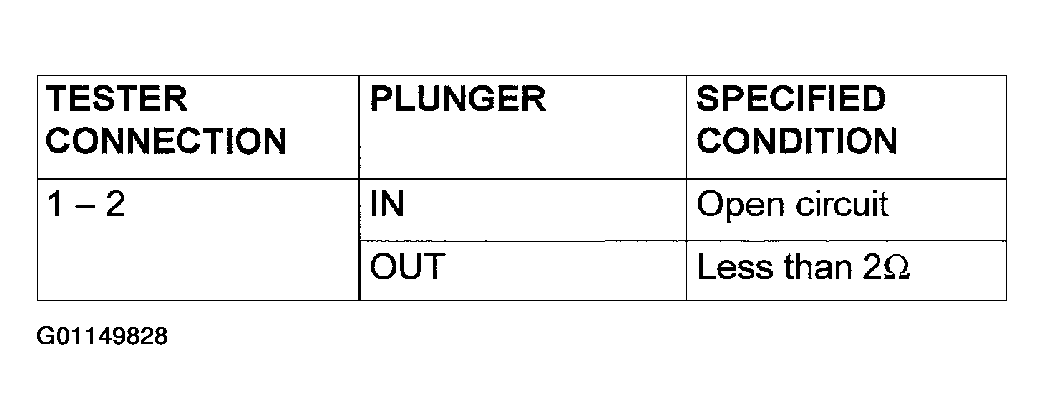

    Fig 1: Identifying Stoplight Switch Standard Continuity
    G01149828Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

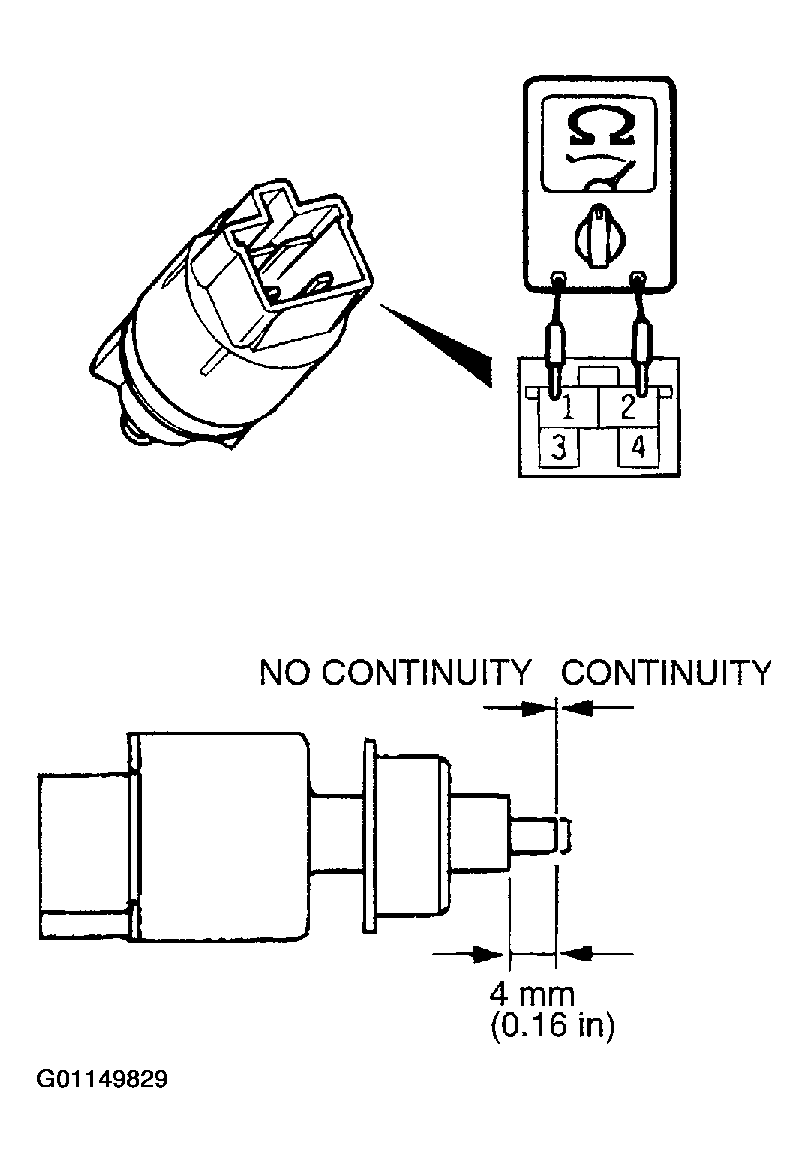

    Fig 2: Checking Stoplight Switch Continuity
    G01149829Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
