Removal And Installation: Notes
CAUTION:
*
: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

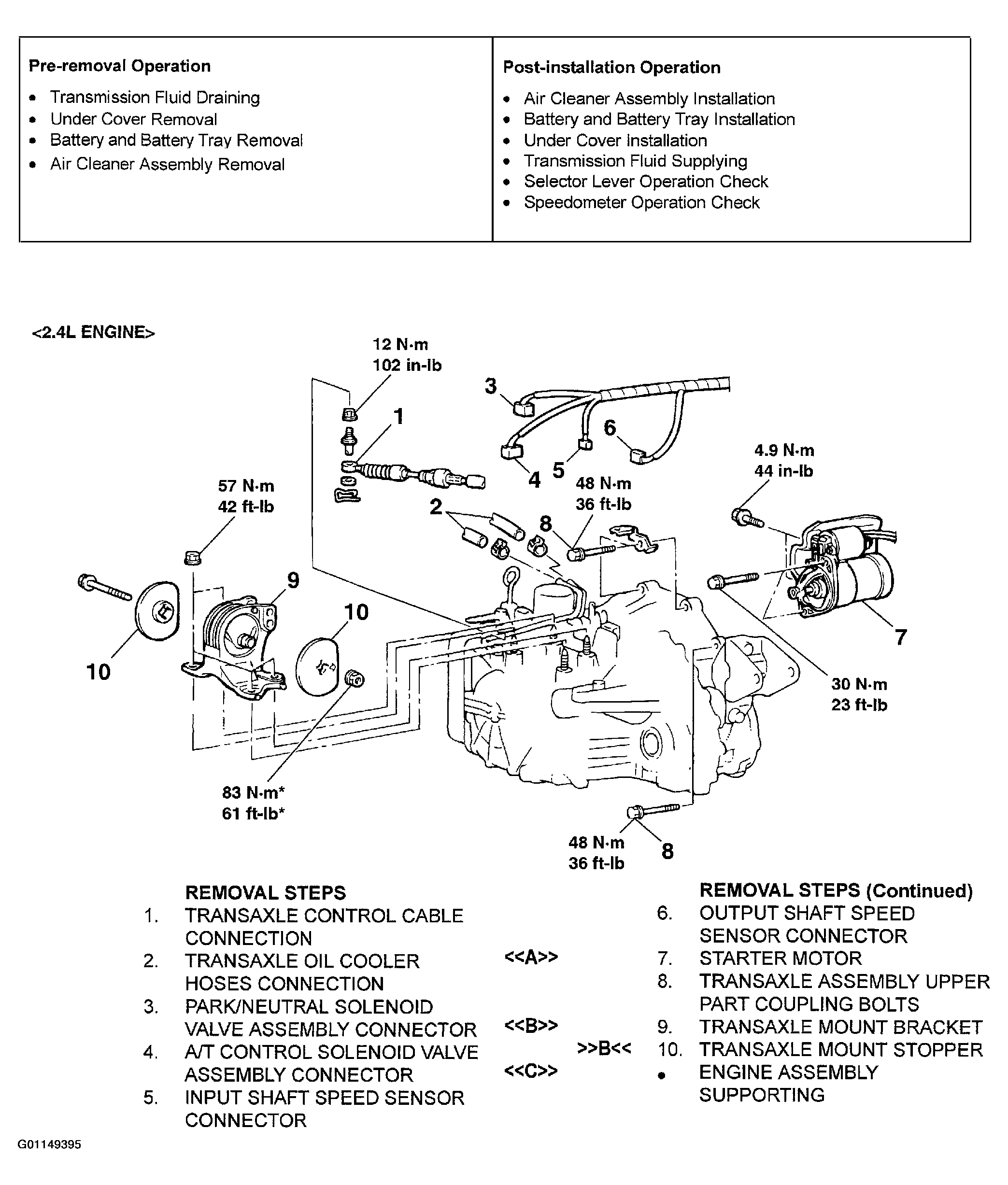

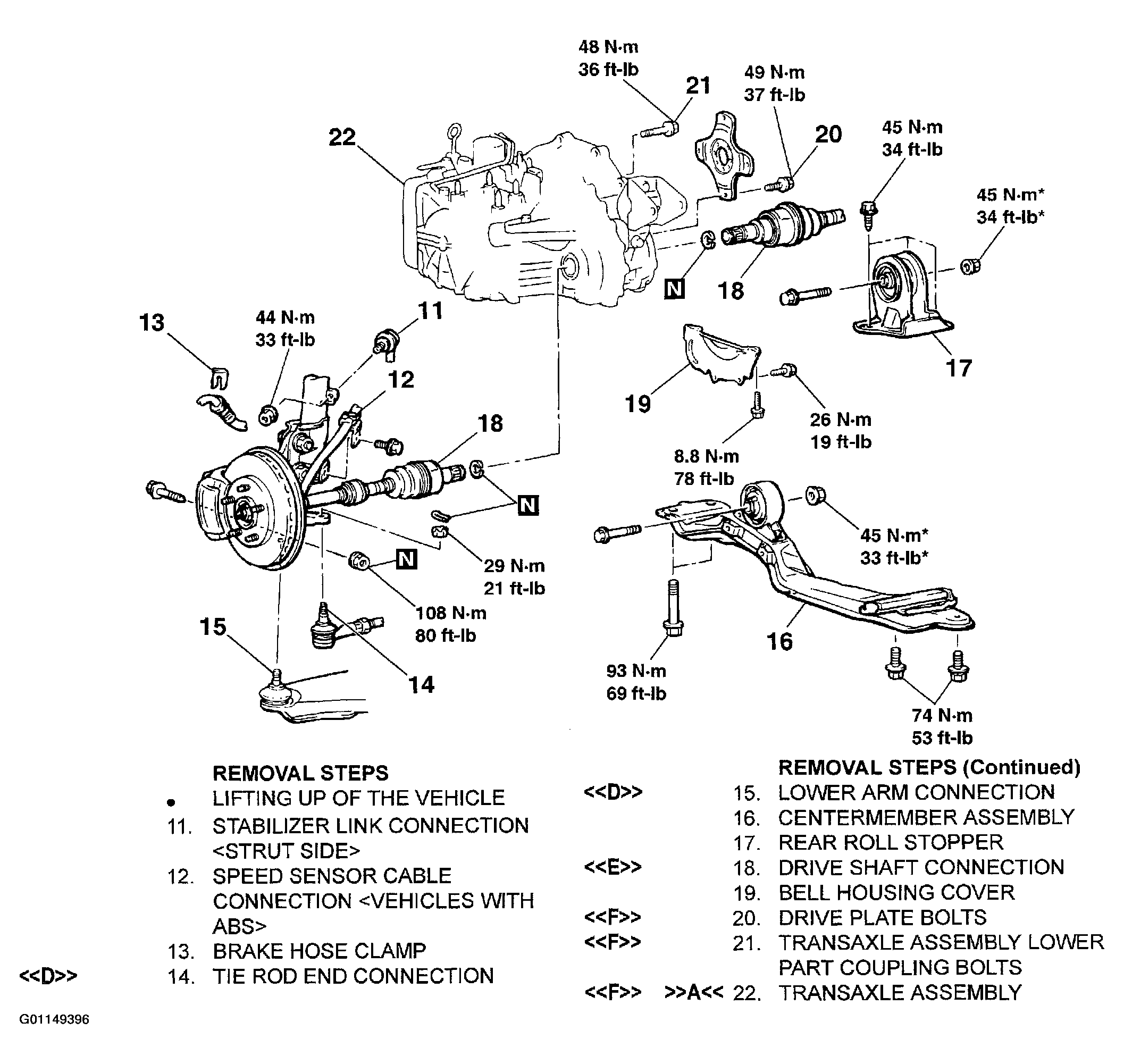

For transaxle assembly removal procedures, follow numbered steps in illustration. See Fig 1 -Fig 4 . For transaxle assembly installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing transaxle assembly. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See INSTALLATION SERVICE POINTS .
CAUTION:
*
: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.
Required Special Tools:
- MB991113: Steering Linkage Puller
- MB991453: Engine Hanger Assembly
- MZ203827: Engine Lifter
CAUTION:
*
: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

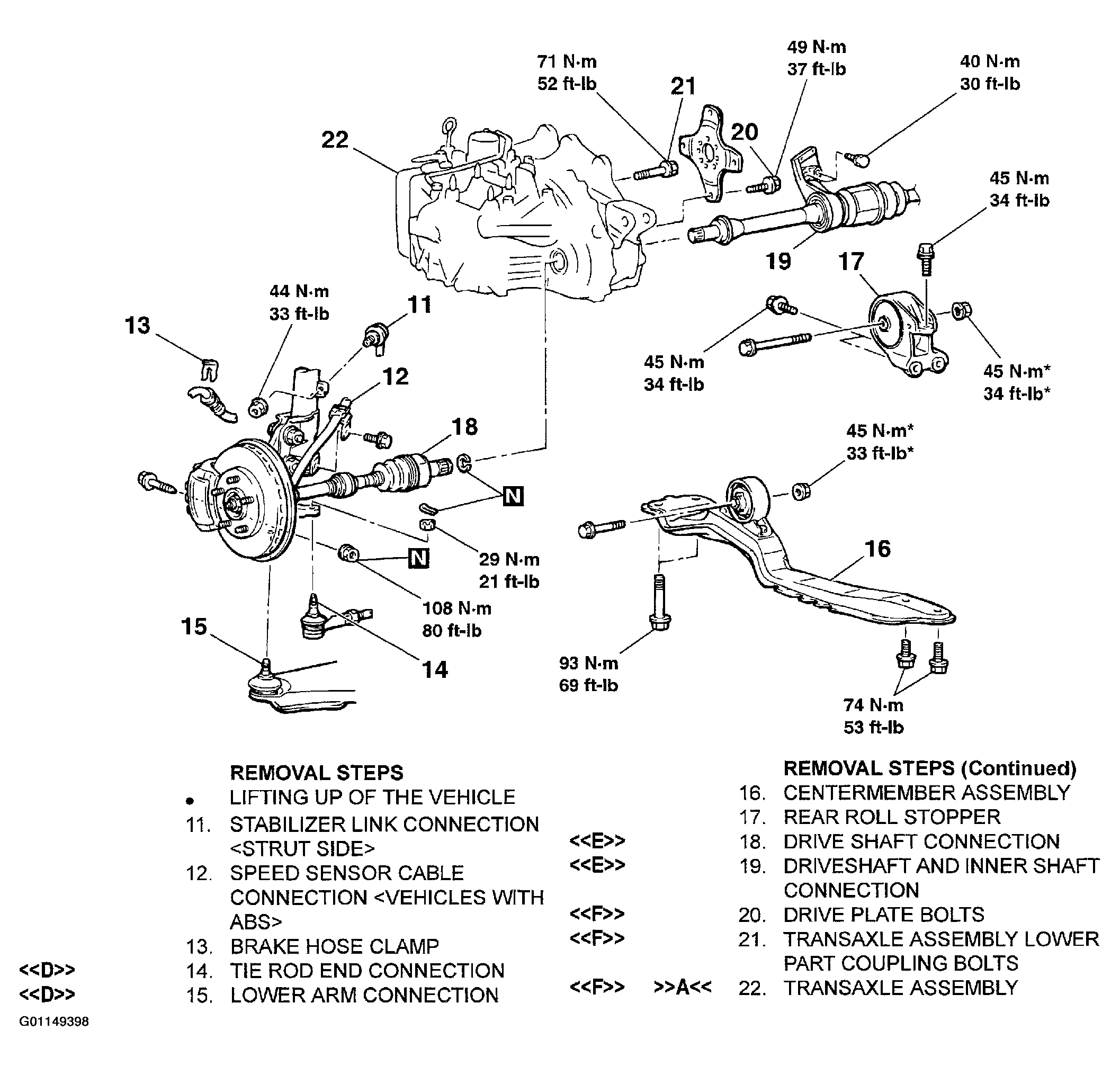

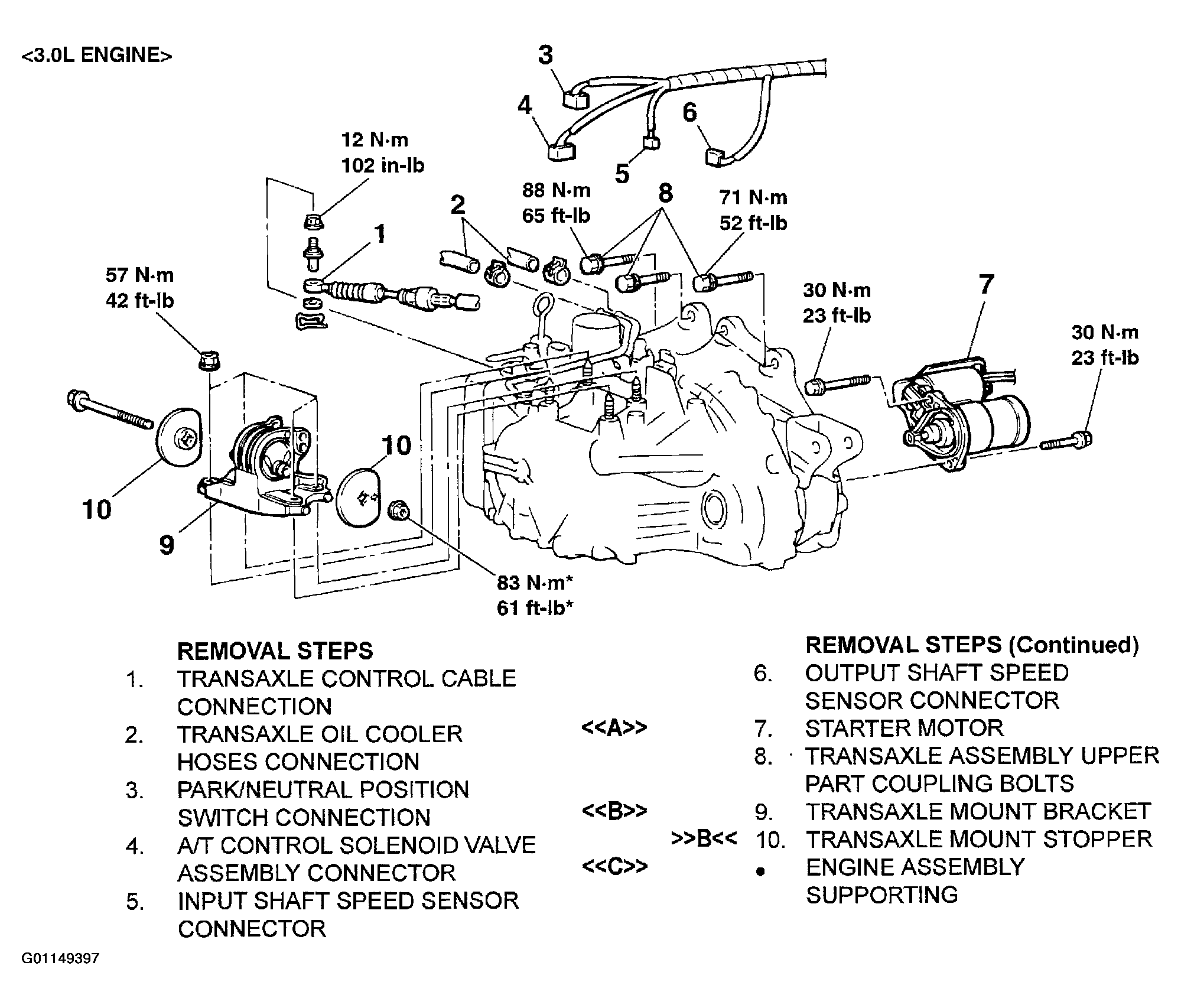

<3.0L ENGINE>
CAUTION:
*
: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.
Required Special Tools:
- MB991113: Steering Linkage Puller
- MB991453: Engine Hanger Assembly
- MZ203827: Engine Lifter
