<< F>> Drive Plate Bolts/Transaxle Assembly Lower Part Coupling Bolts/Transaxle Assembly Removal
- Support the transaxle assembly by using a transaxle jack.

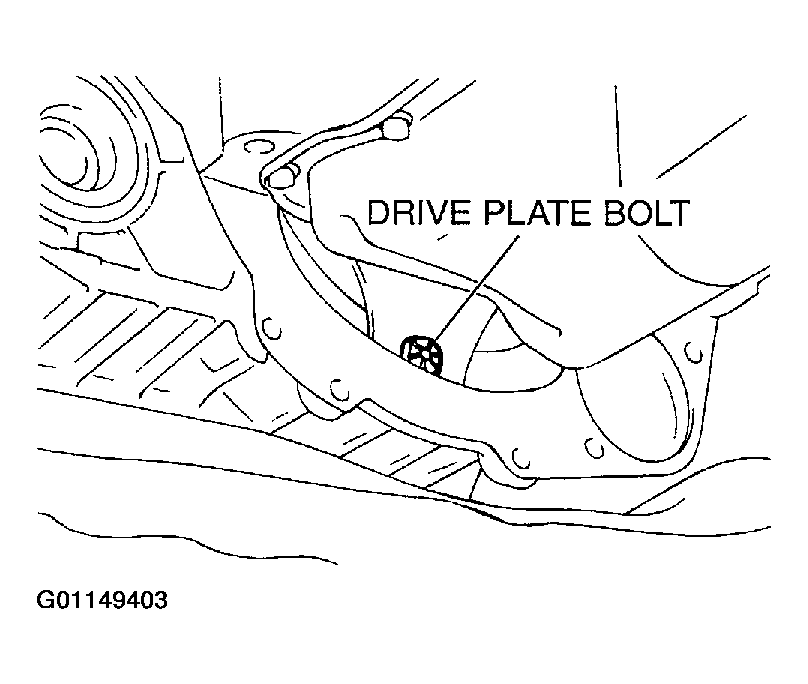

- Remove the drive plate bolts while turning the crank shaft.
- Press in the torque converter to the transaxle side so that the torque converter does not stay engaged to the drive plate.
- Remove the transaxle assembly lower bolts and lower the transaxle assembly.
