Disassembly And Assembly

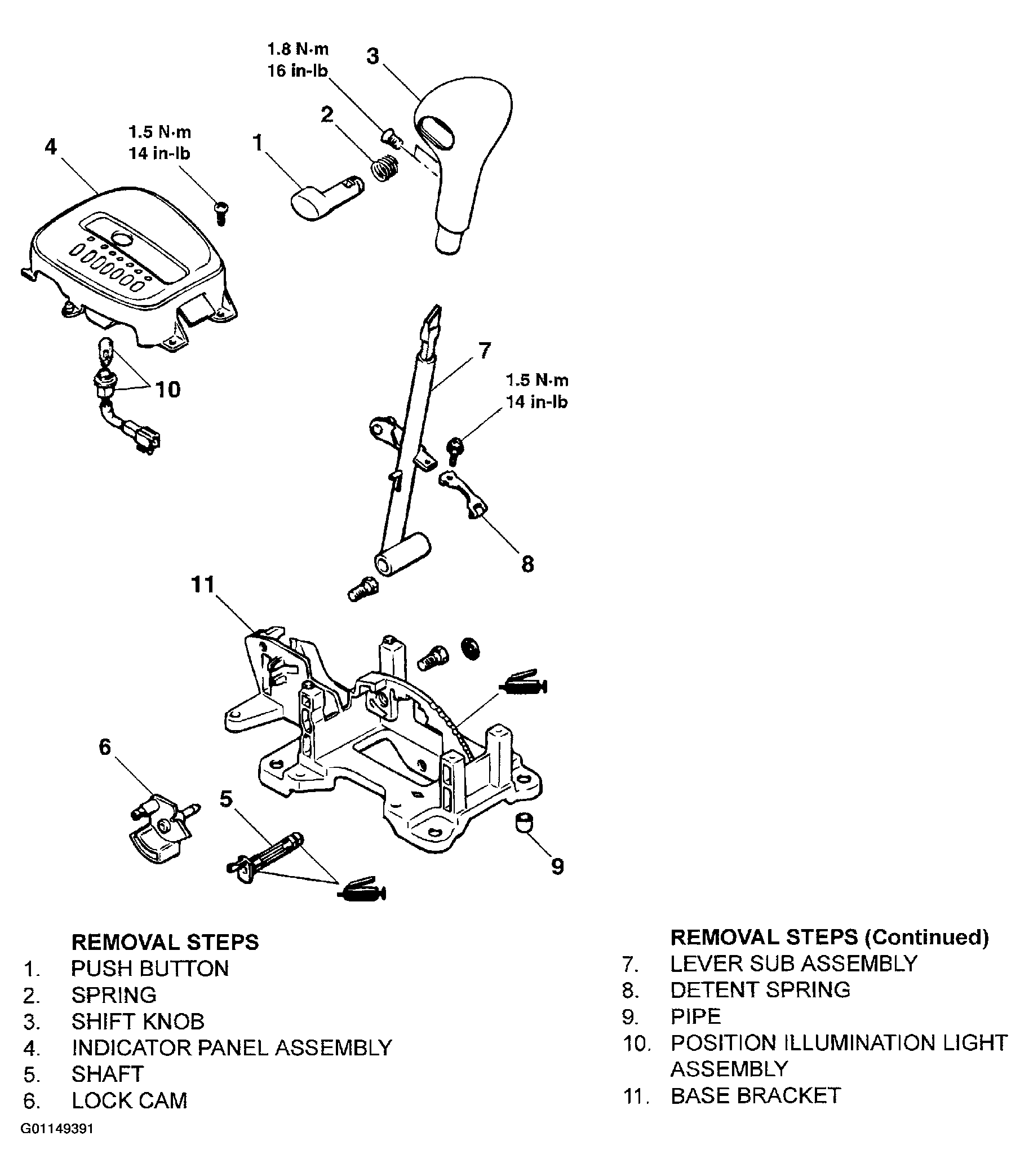

For transaxle control disassembly procedures, follow numbered steps in illustration. See Fig 1 . For transaxle control assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling transaxle control.
