Removal And Installation: Notes
CAUTION:
When removing and installing the transmission control cable and shift lock cable unit, be careful not to impact the SRS-ECU.

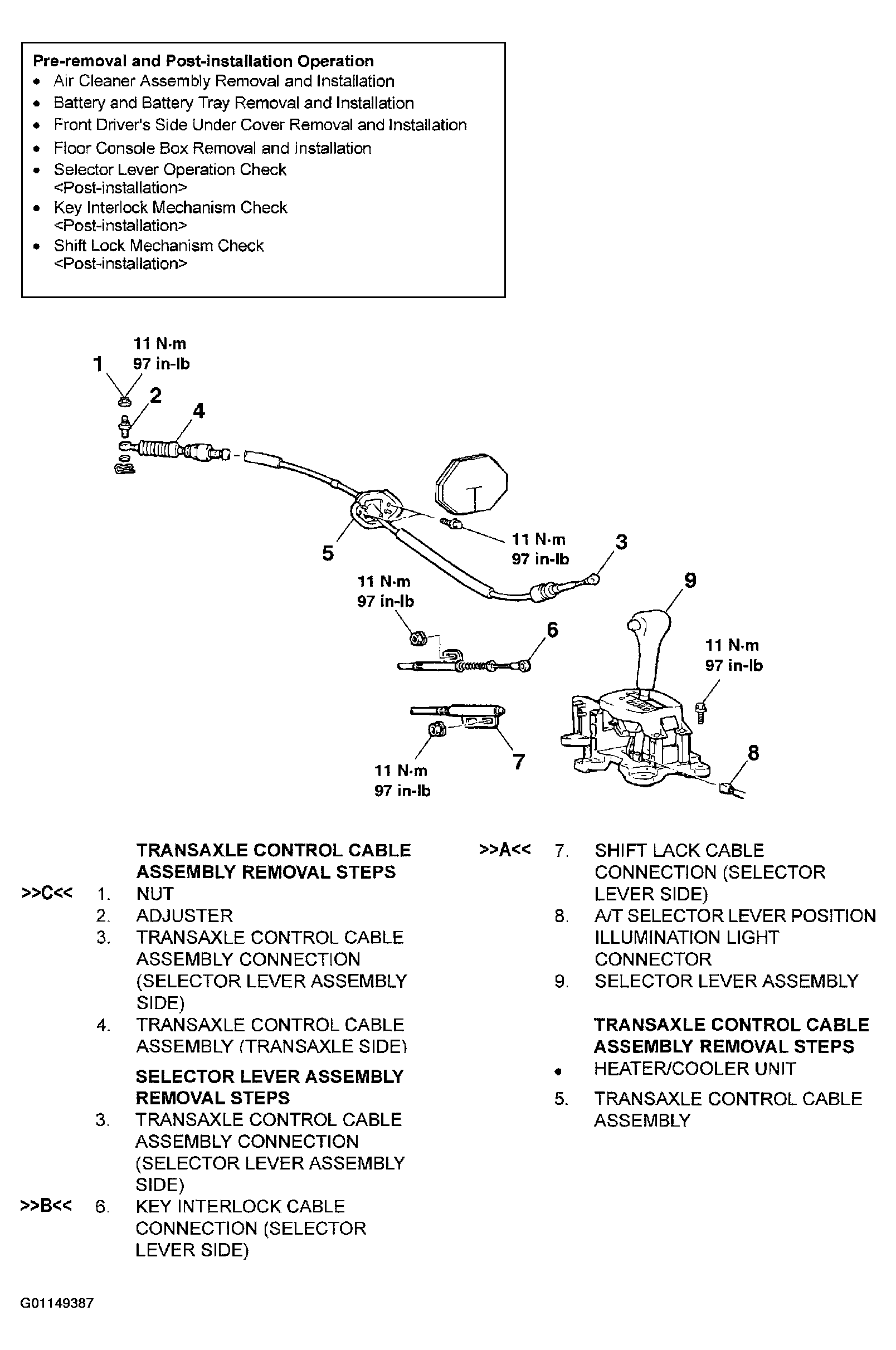

For transaxle control removal procedures, follow numbered steps in illustration. See Fig 1 . For transaxle control installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling transaxle control. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See INSTALLATION SERVICE POINT .
