Engine Assembly Replacement

ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS

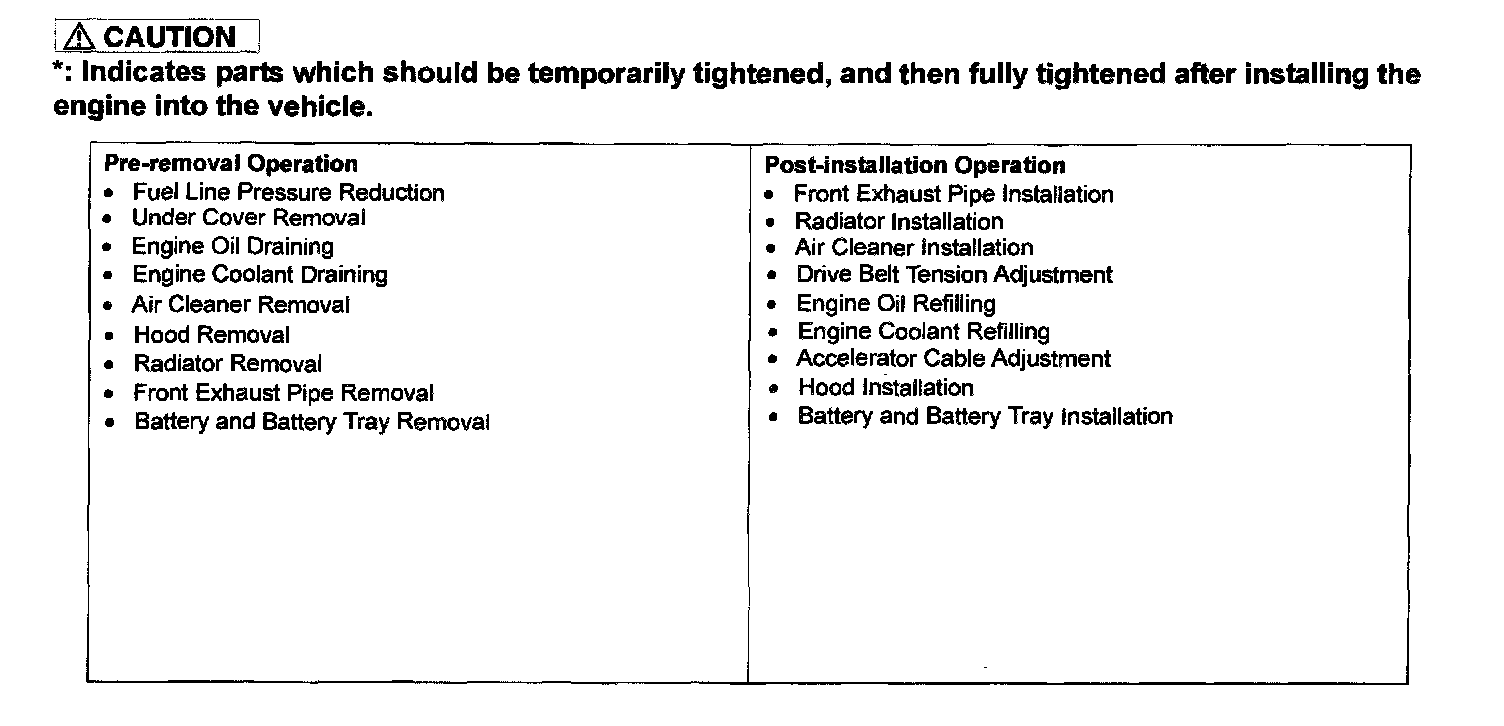

Part 1 of 5

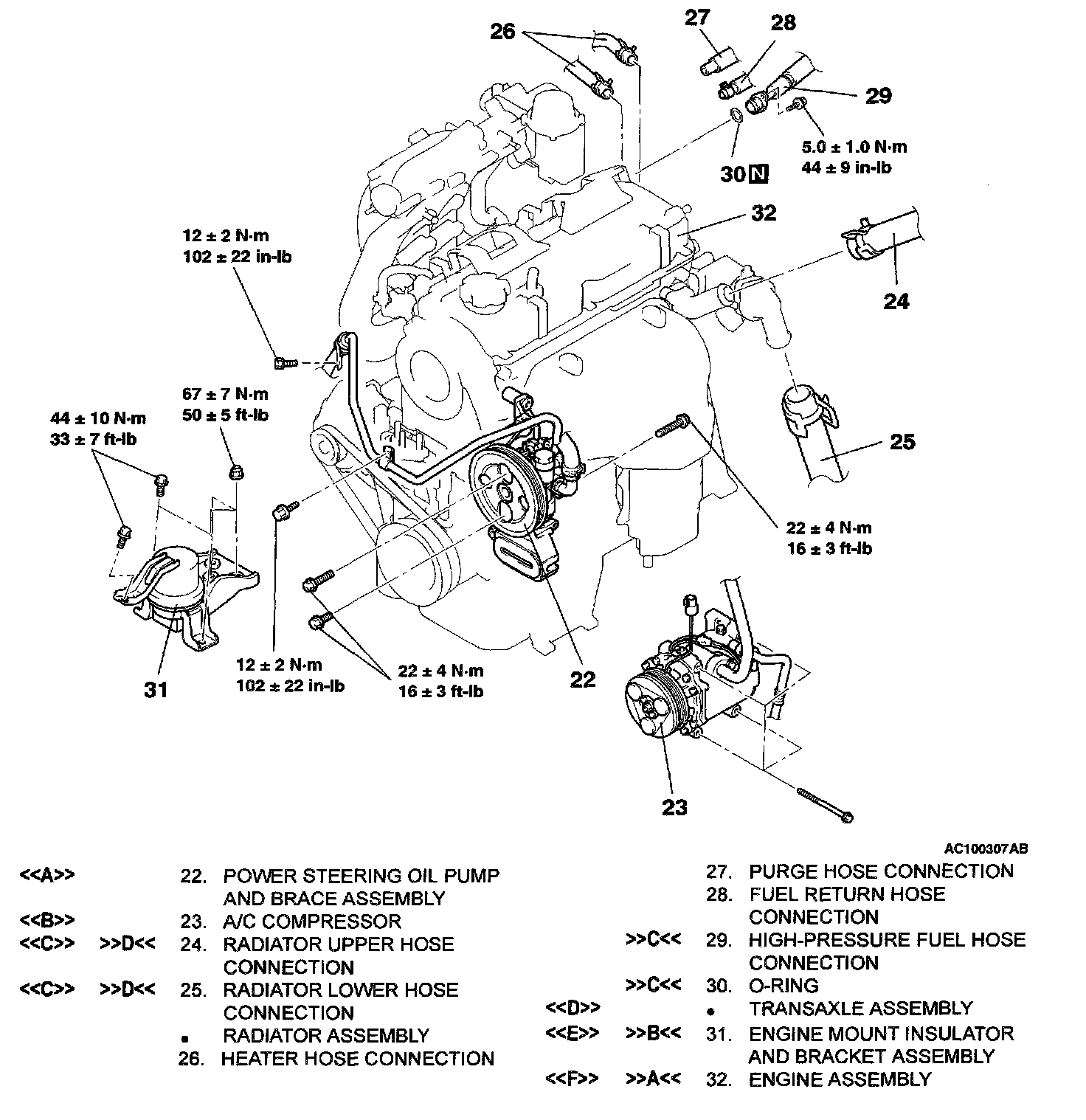

Part 2 of 5

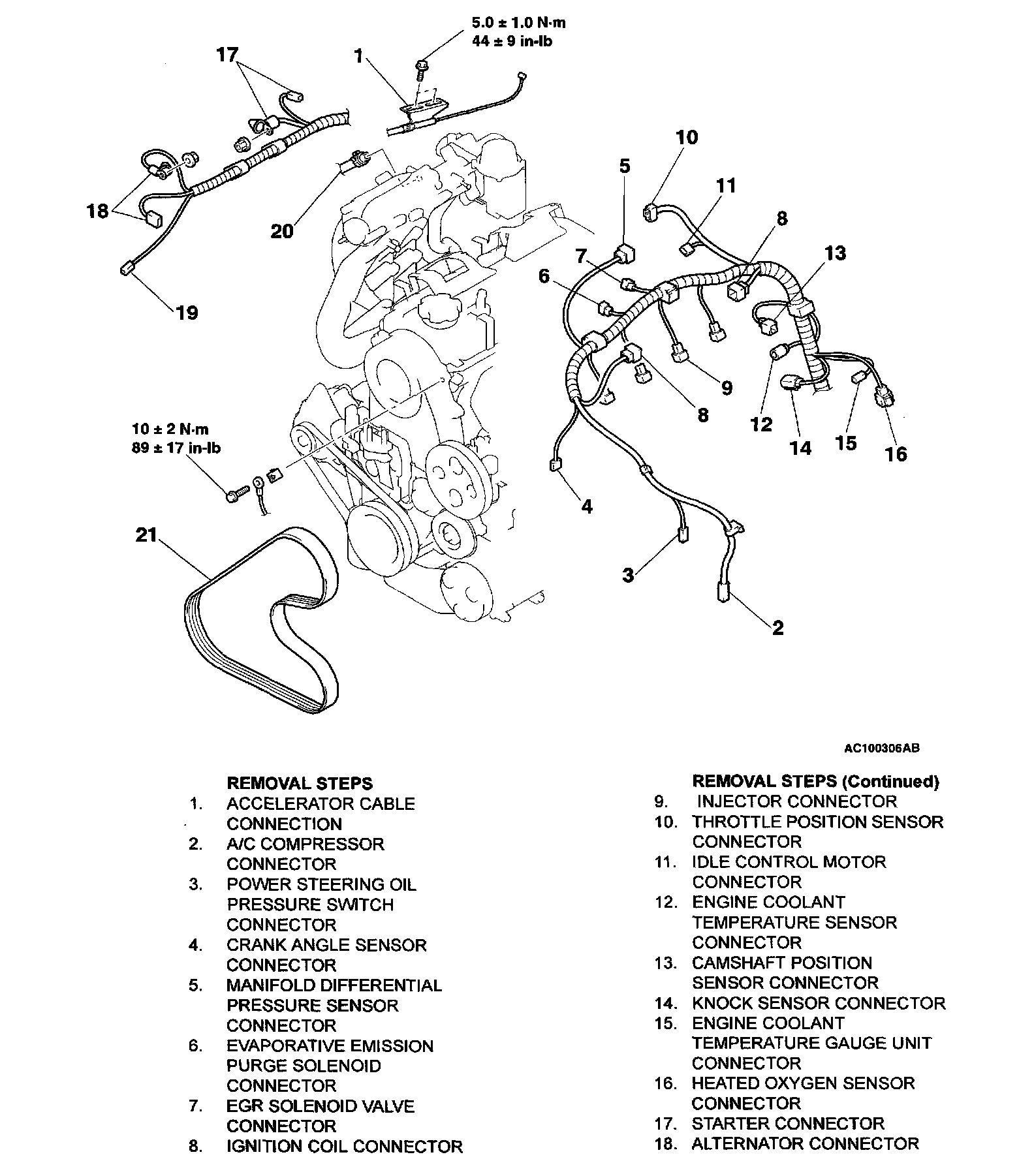

Part 3 of 5

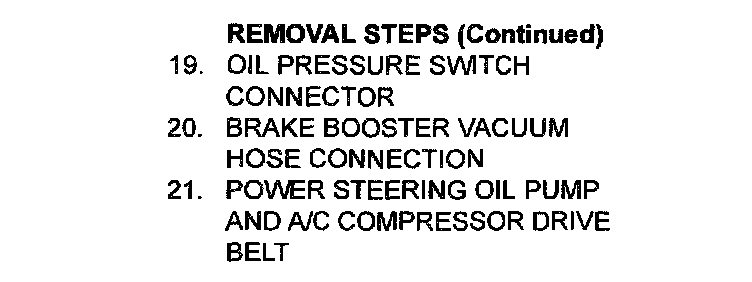

Part 4 of 5





Part 5 of 5
