Door Mirror Control Switch Continuity Check

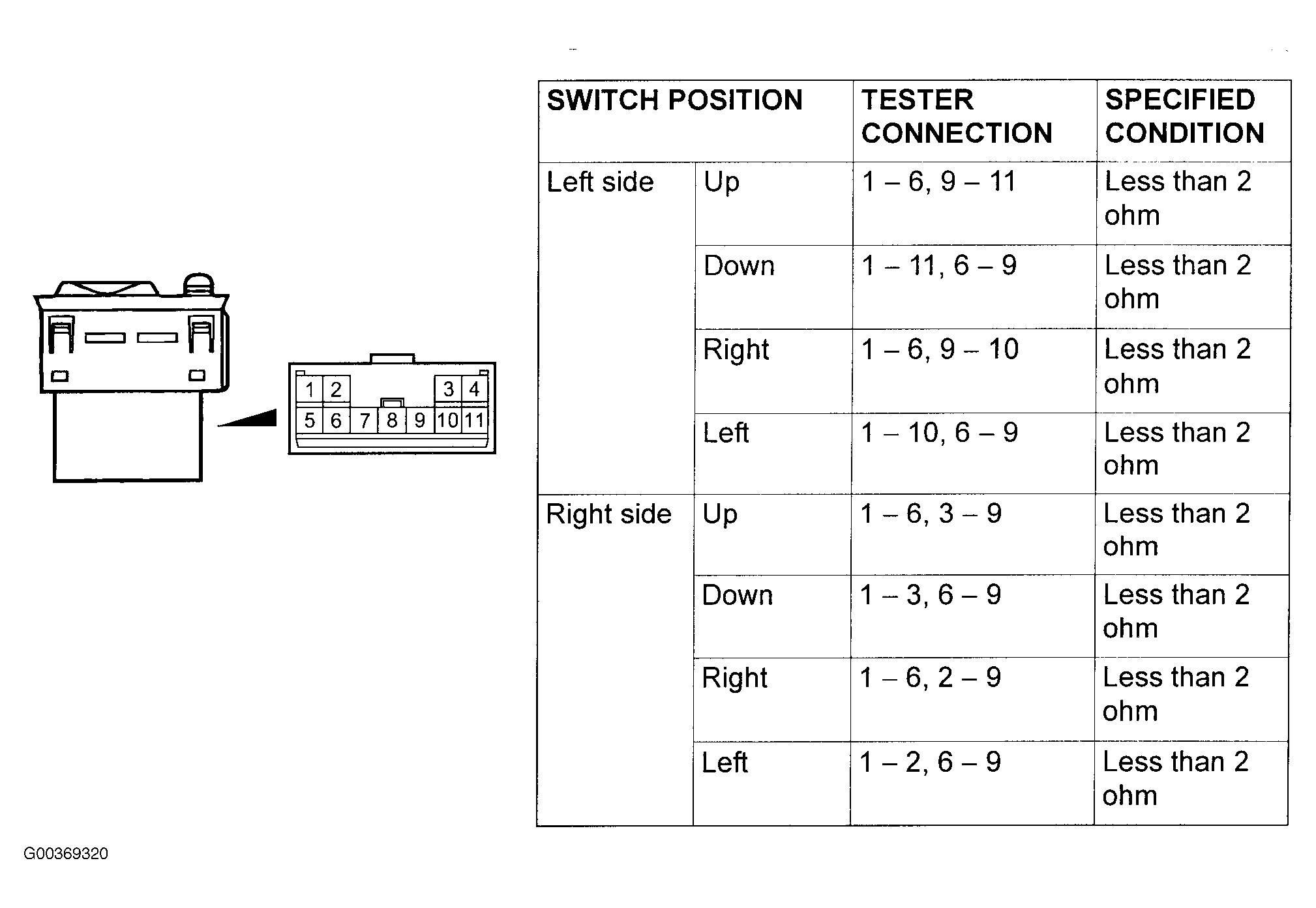

Fig 1: Checking Mirror Control Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
