DTC P1400: Manifold Differential Pressure Sensor Circuit Malfunction: Notes

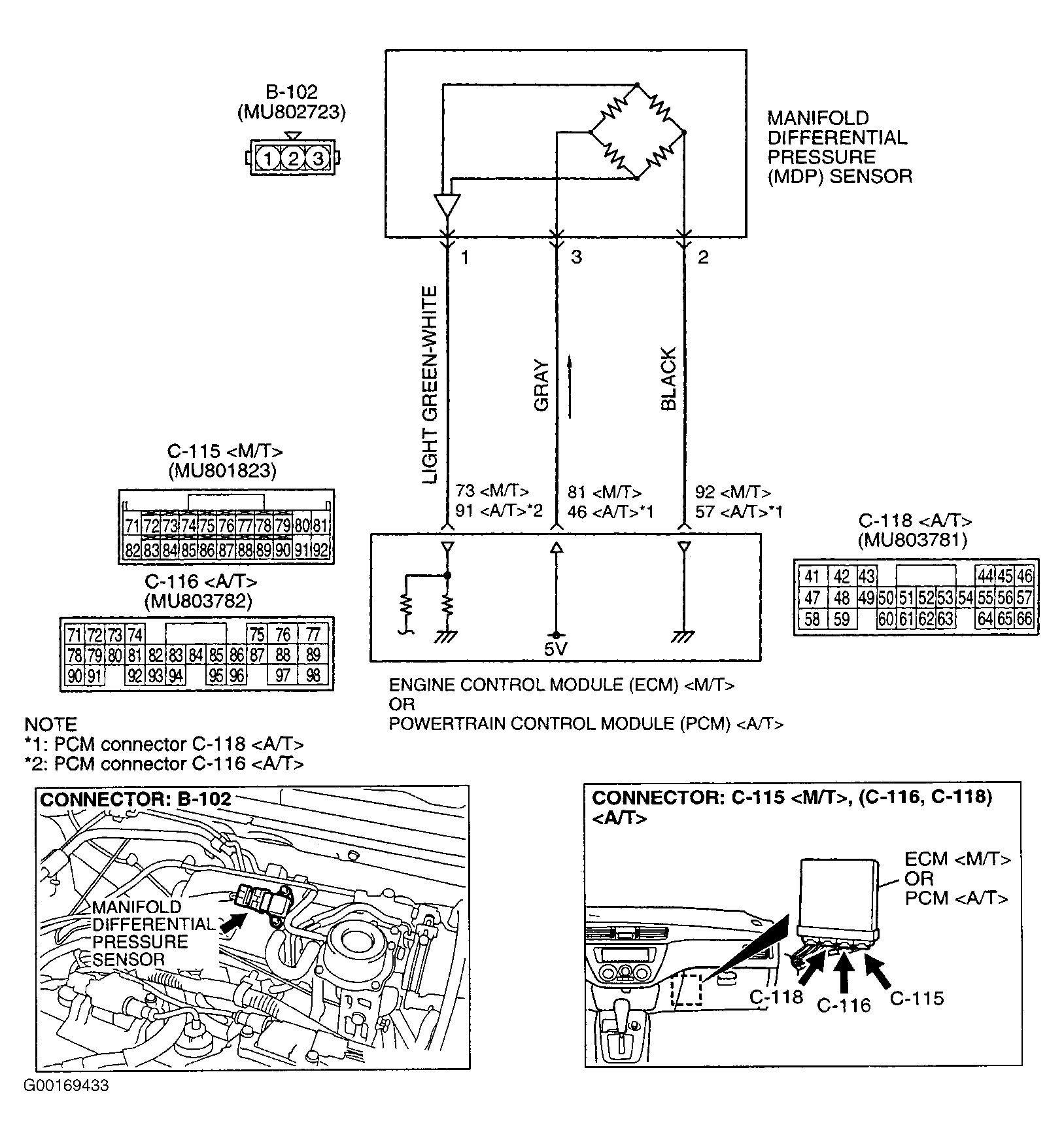

Fig 1: Identifying Manifold Differential Pressure Sensor Circuit, Component & Connector Location
G00169433Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
