INSPECTION PROCEDURE 7: Defroster Function does not Operate: Notes

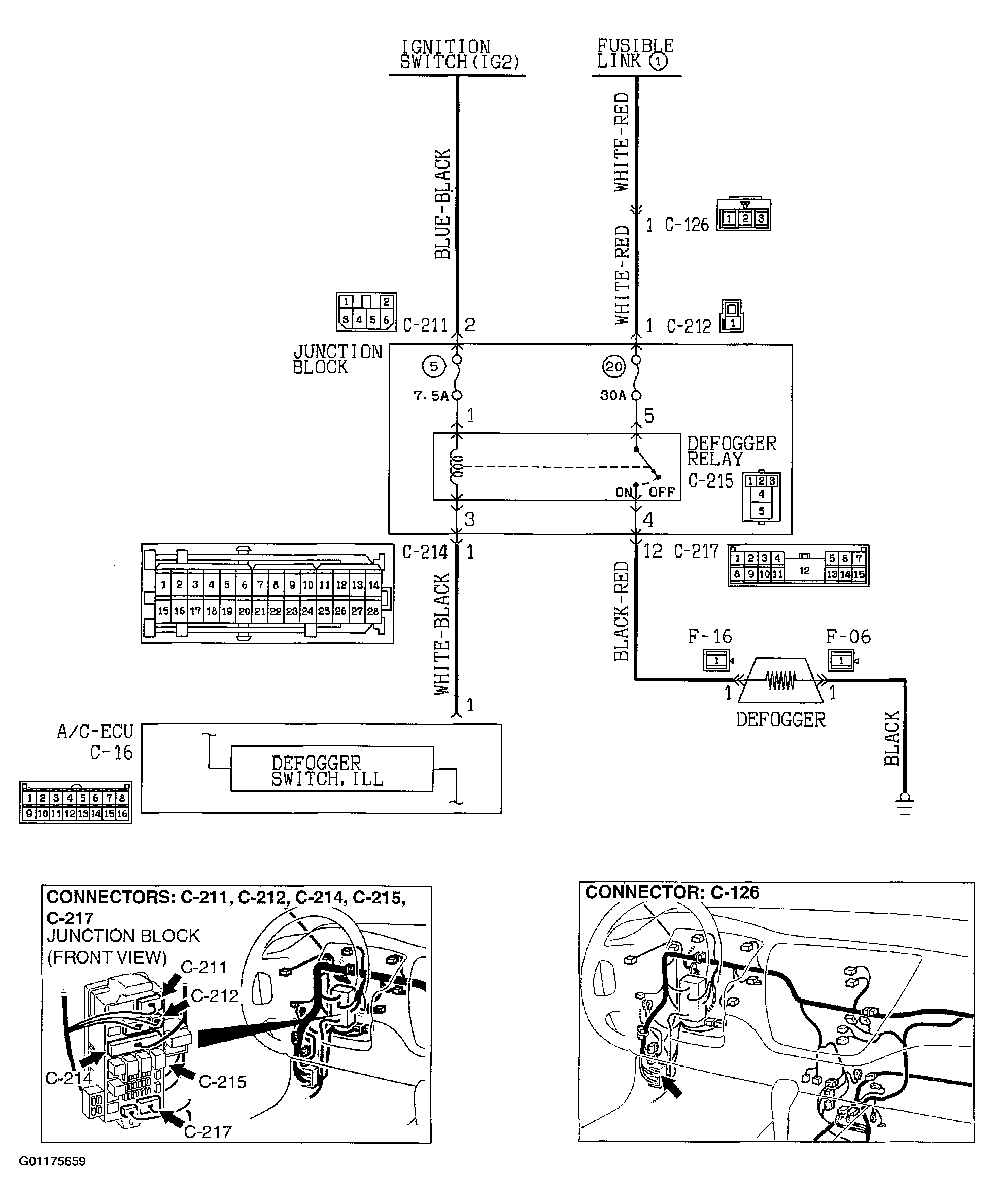

Fig 1: Identifying Defogger Circuit & Connector Locations (C-211, C-212, C-214, C-215, C-217 & C-126)
G01175659Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

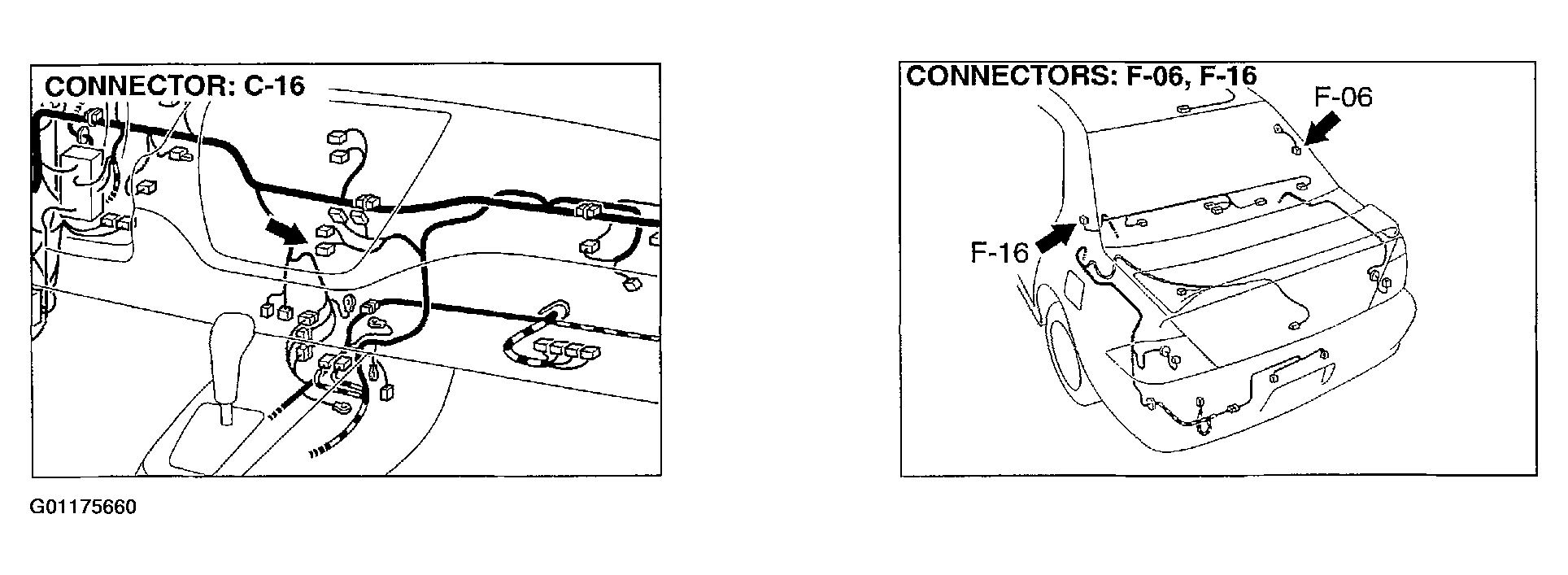

Fig 2: Locating Connectors C-16, F-06 & F-16
G01175660Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
