Windshield Wiper Automatic Stop Relay Circuit Connector End Views

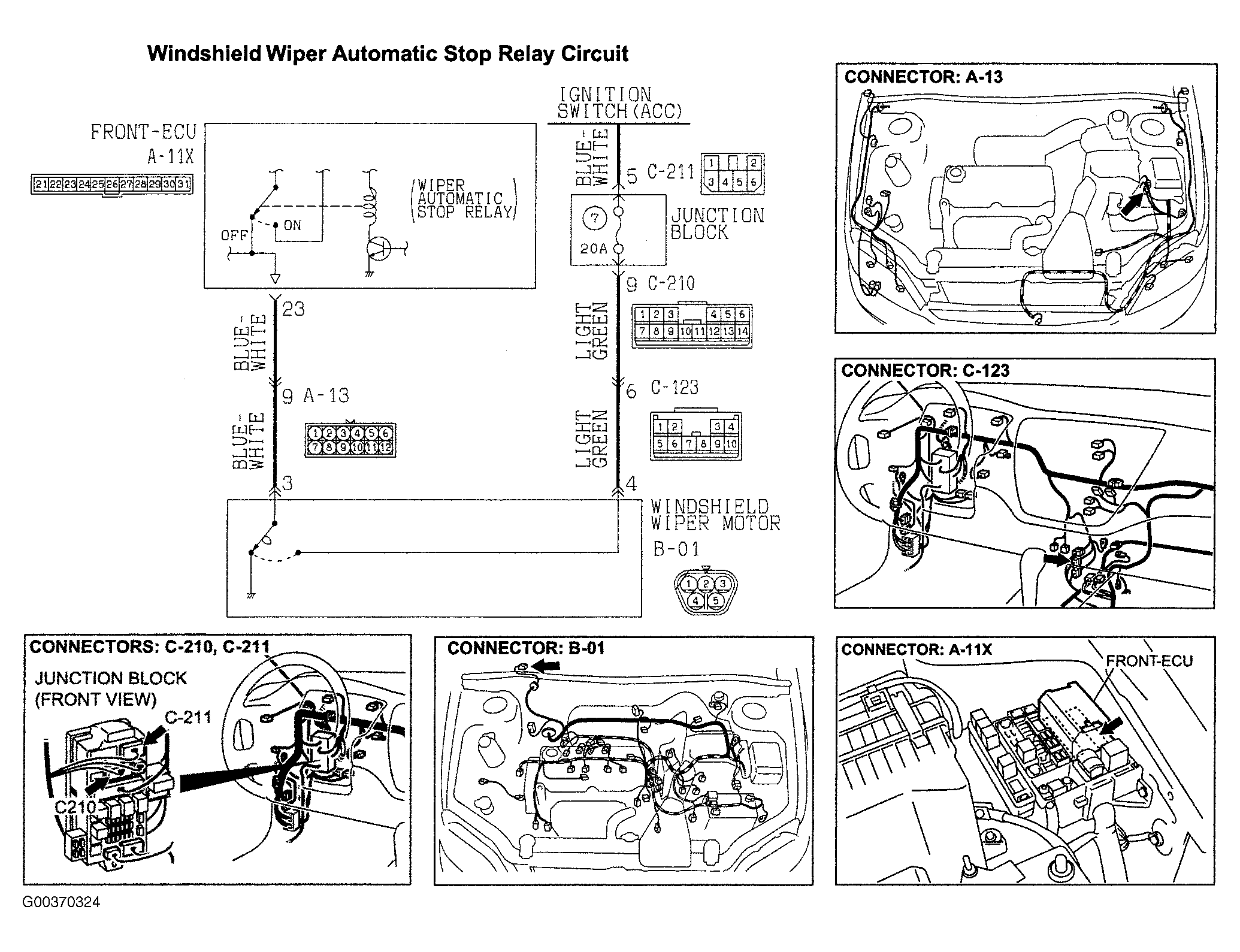

Fig 1: Windshield Wiper Automatic Stop Relay Circuit Connector End Views
G00370324Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
