Removal And Installation: Notes
WARNING:
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the shift cable and select cable assembly.

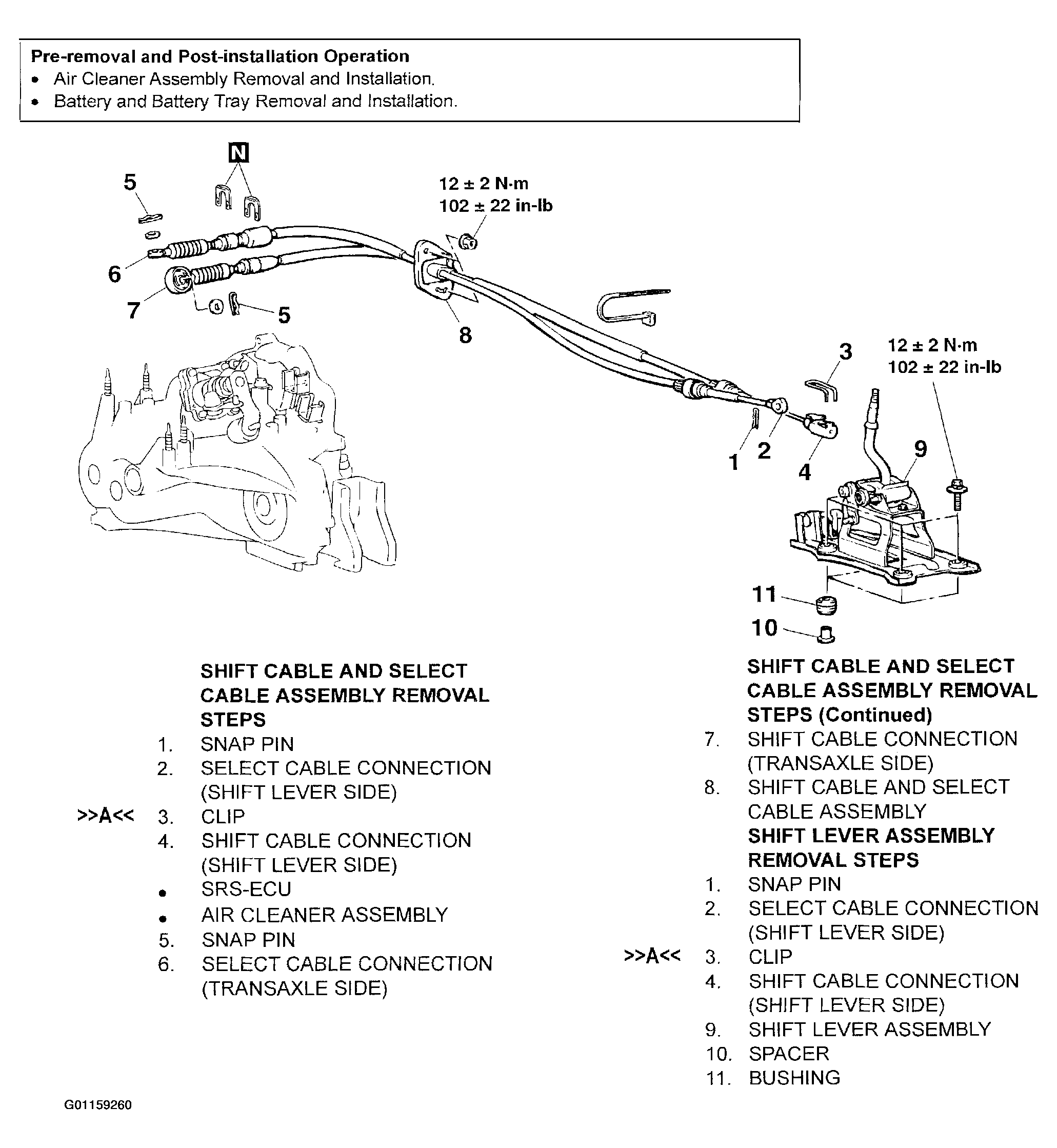

For transaxle control removal procedures, follow numbered steps in illustration. See Fig 1. For transaxle control installation procedures, follow numbered steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing transaxle control. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINT .
