Rectifier Assembly (Except Diamante)

Check continuity between positive rectifier and stator coil lead connection terminal with tester. See Fig 1 . If there is continuity between terminals, diode is shorted, so replace rectifier.

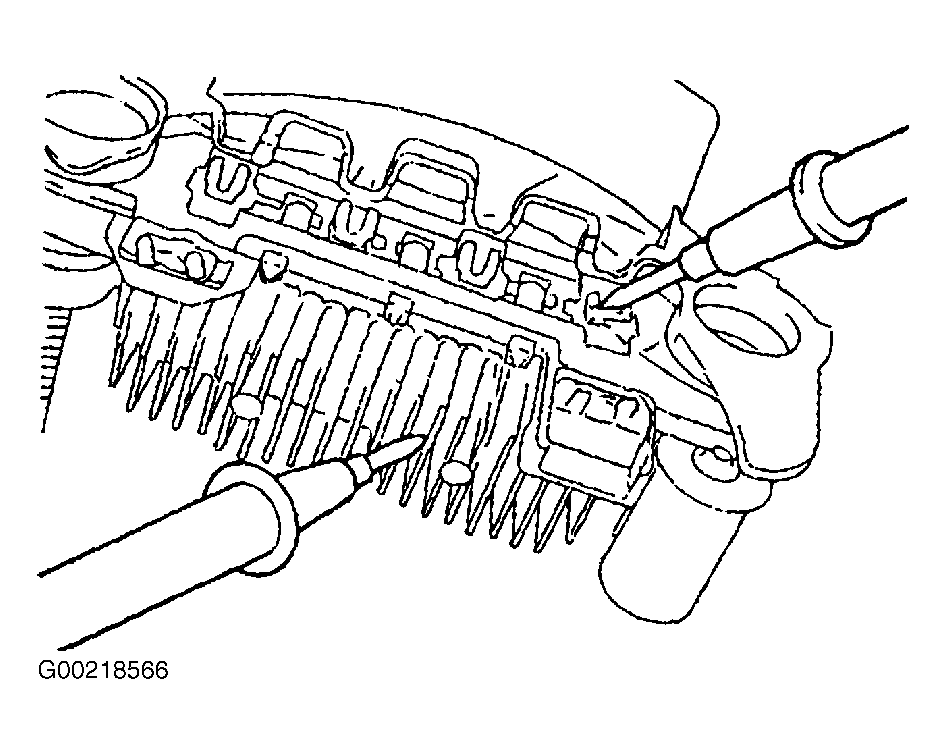

Fig 1: Checking Continuity Between Positive & Stator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check continuity between negative rectifier and stator coil lead connection terminal with tester. See Fig 2 . If there is continuity between terminals, diode is grounded, so replace rectifier.

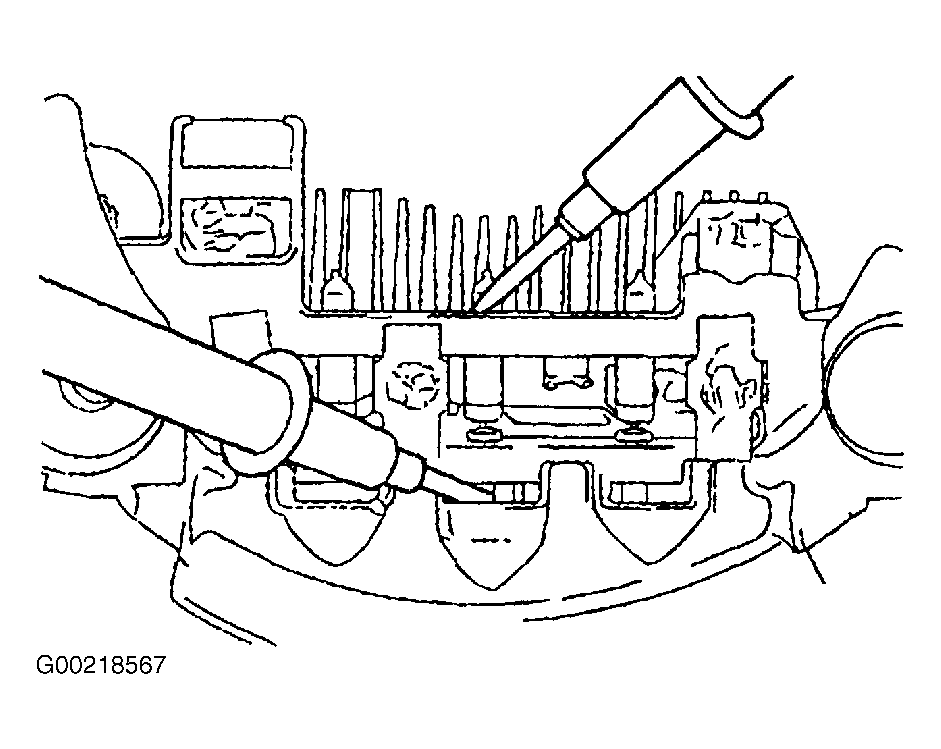

Fig 2: Checking Continuity Between Negative Rectifier
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check continuity of three diodes by connecting an ohmmeter to both ends of each diode. See Fig 3 . If there is continuity between directions or if there is no continuity, diode is damaged, so replace rectifier.

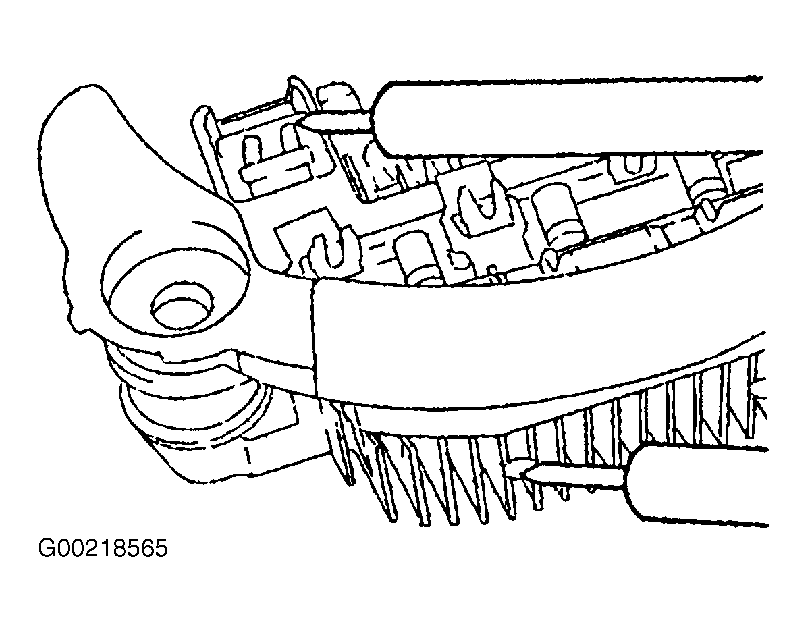

Fig 3: Checking Continuity Of Three Diodes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
