>> C << Rack Assembly Installation

CAUTION: Do not close the vent hole in the rack with grease.
  1. Apply a coating of multipurpose grease to the rack teeth face.

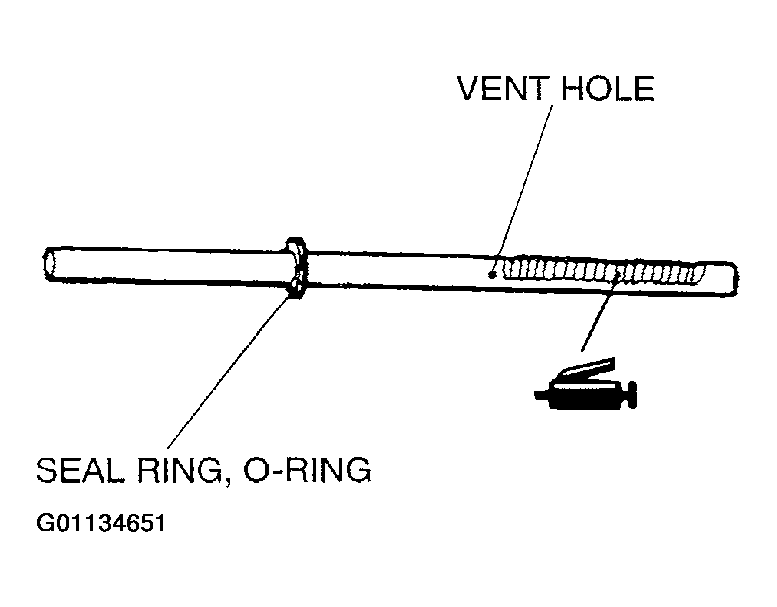

    Fig 1: Installing Rack Assembly (1 Of 2)
    G01134651Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Cover rack serrations with special tool MB991213.

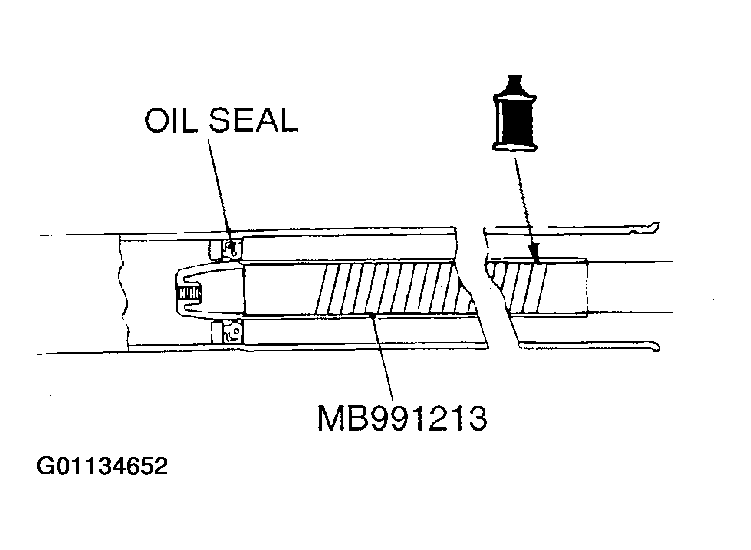

    Fig 2: Installing Rack Assembly (2 Of 2)
    G01134652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Apply DIAMOND ATF to special tool MB991213.
  4. Align center of oil seal with rack to prevent retainer spring from slipping. Slowly insert rack from power cylinder side.
