Special Tools

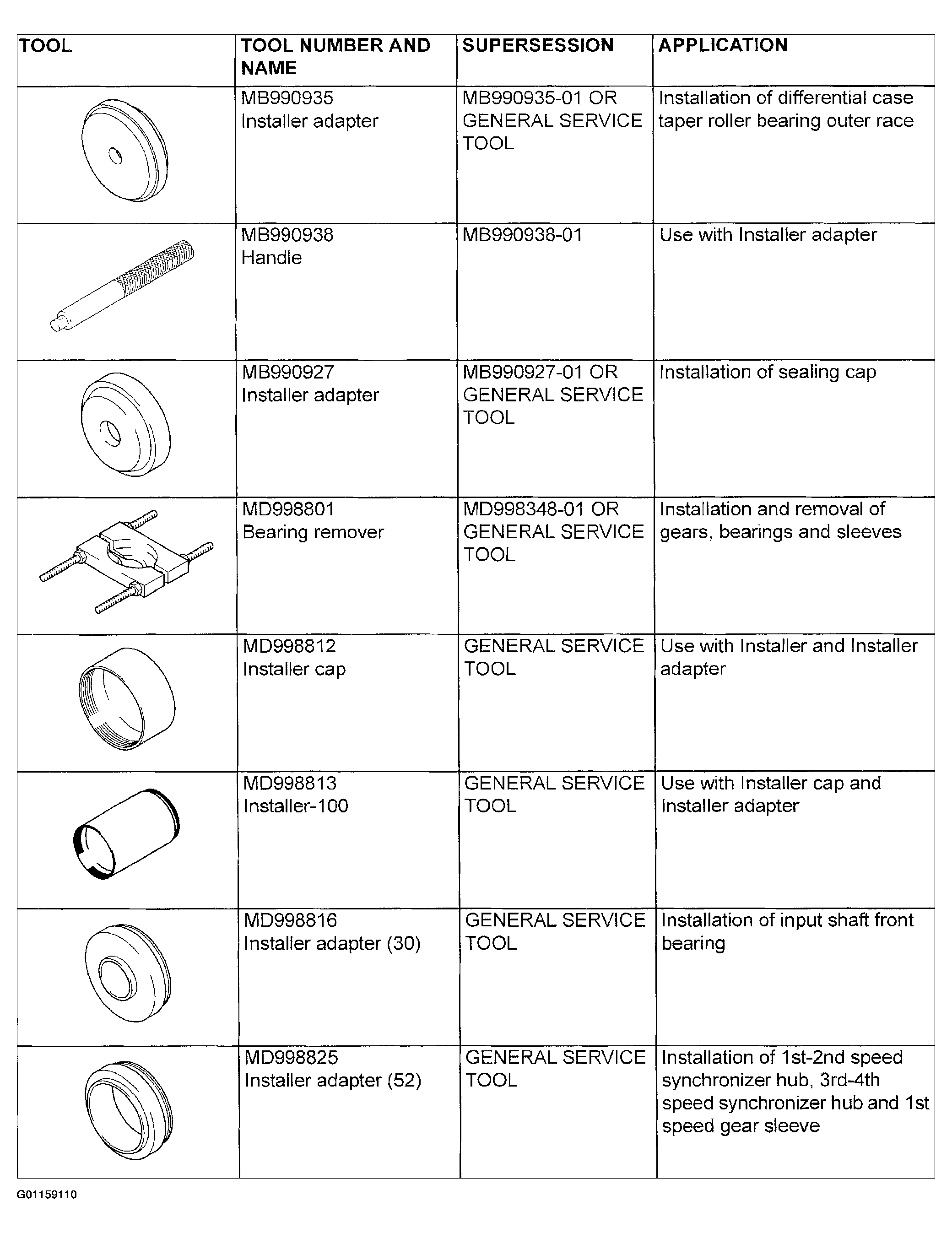

Fig 1: Identifying Special Tools (1 Of 3)
G01159110Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

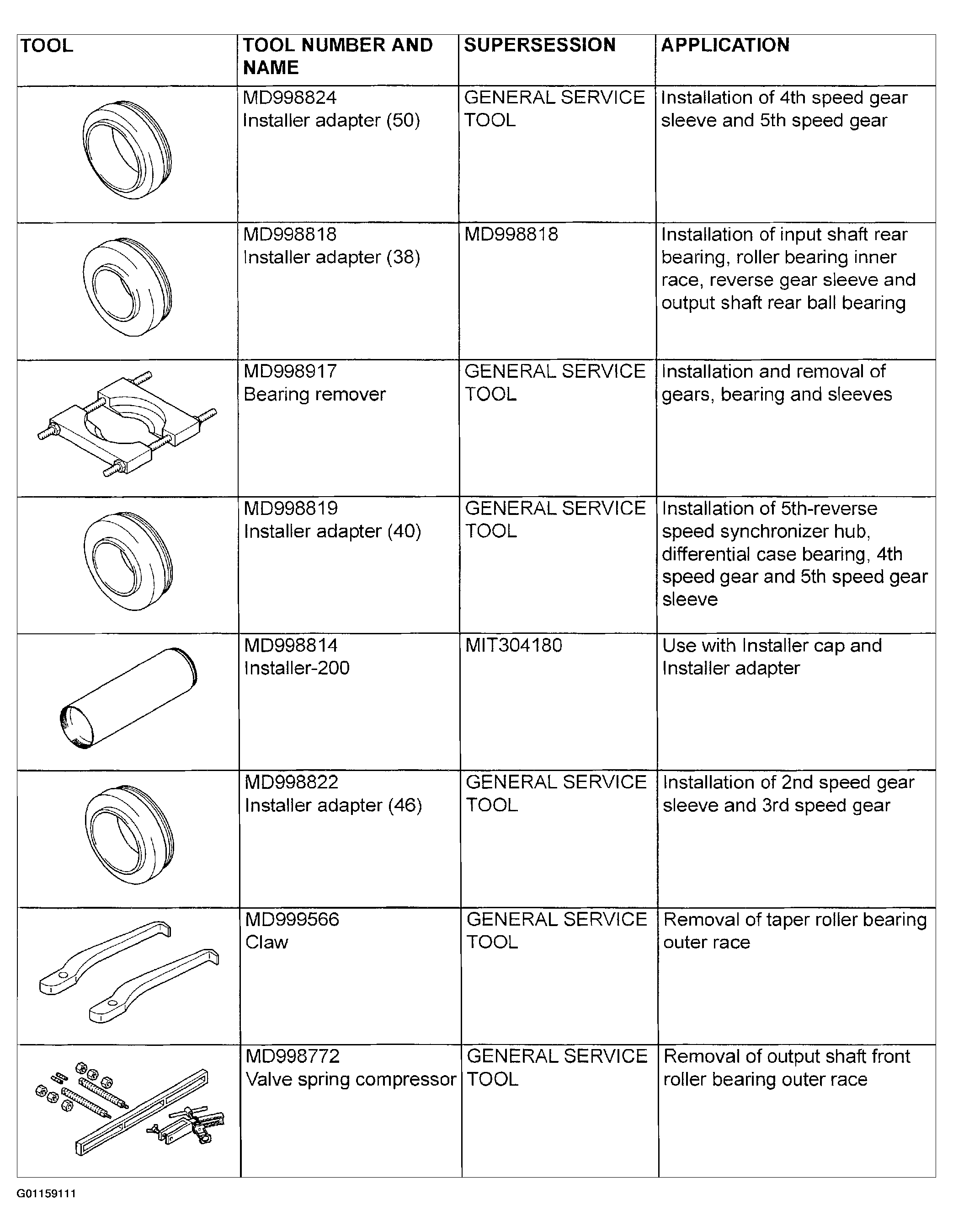

Fig 2: Identifying Special Tools (2 Of 3)
G01159111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

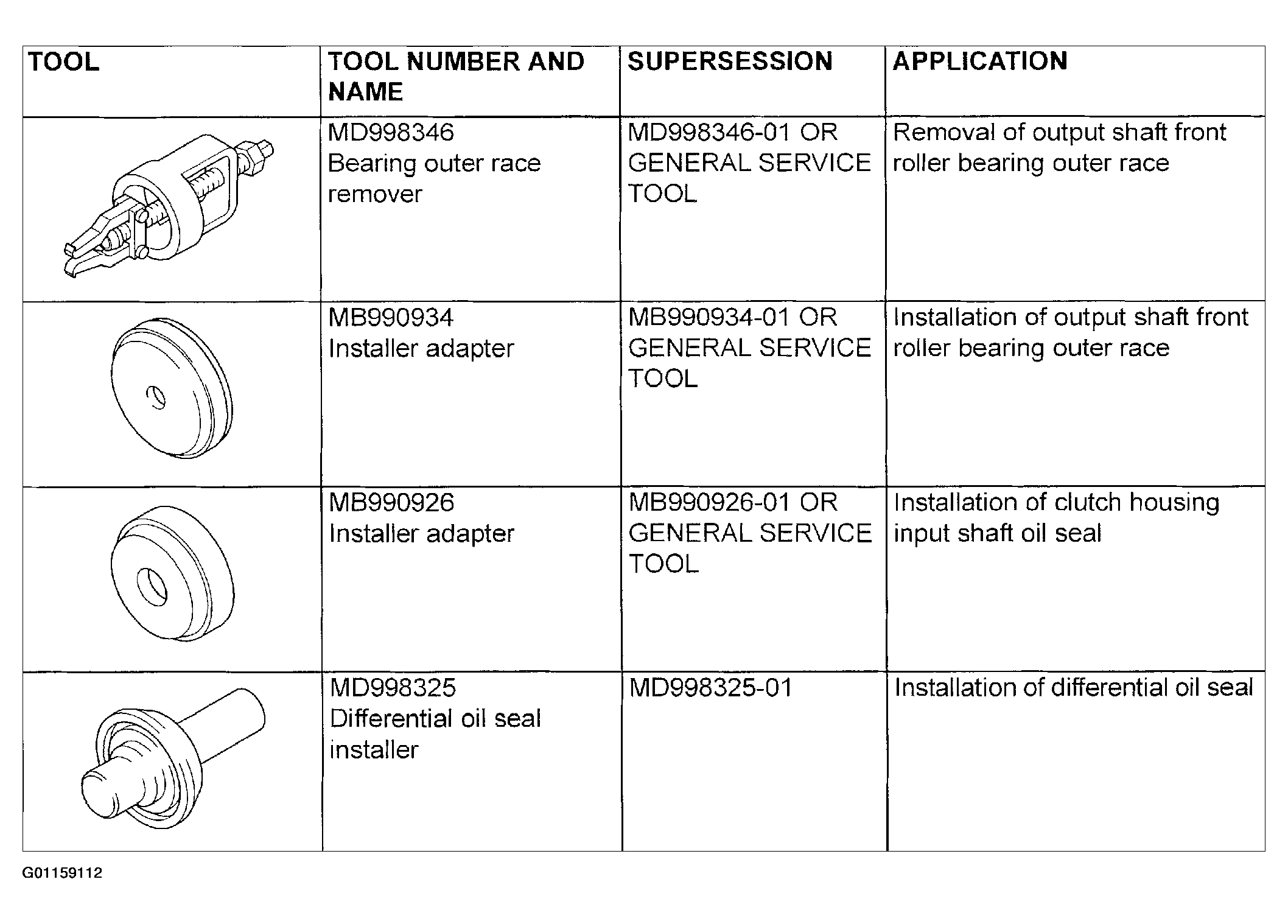

Fig 3: Identifying Special Tools (3 Of 3)
G01159112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
