>> A << Output Shaft/Input Shaft Installation

Install the input and output shafts together.

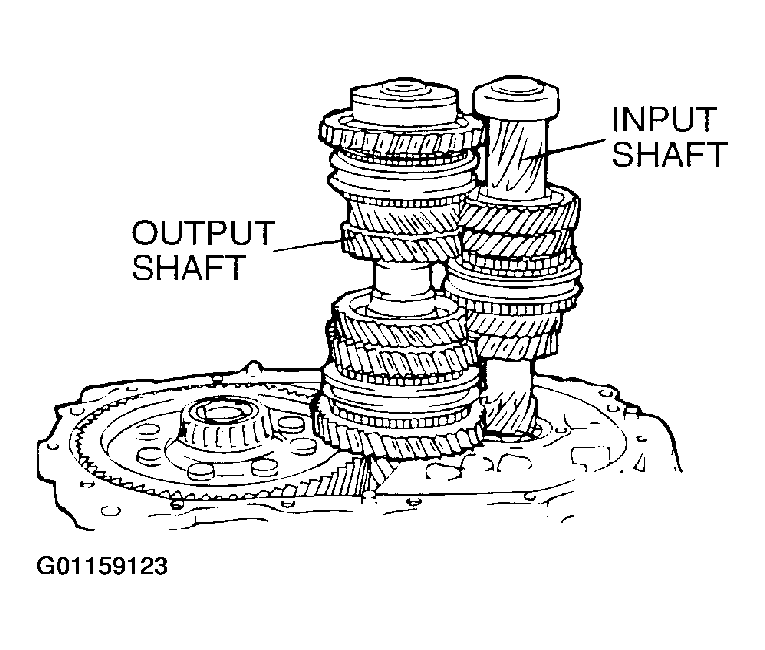

Fig 1: Installing Input Shaft & Output Shaft
G01159123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
