Disassembly And Assembly: Notes

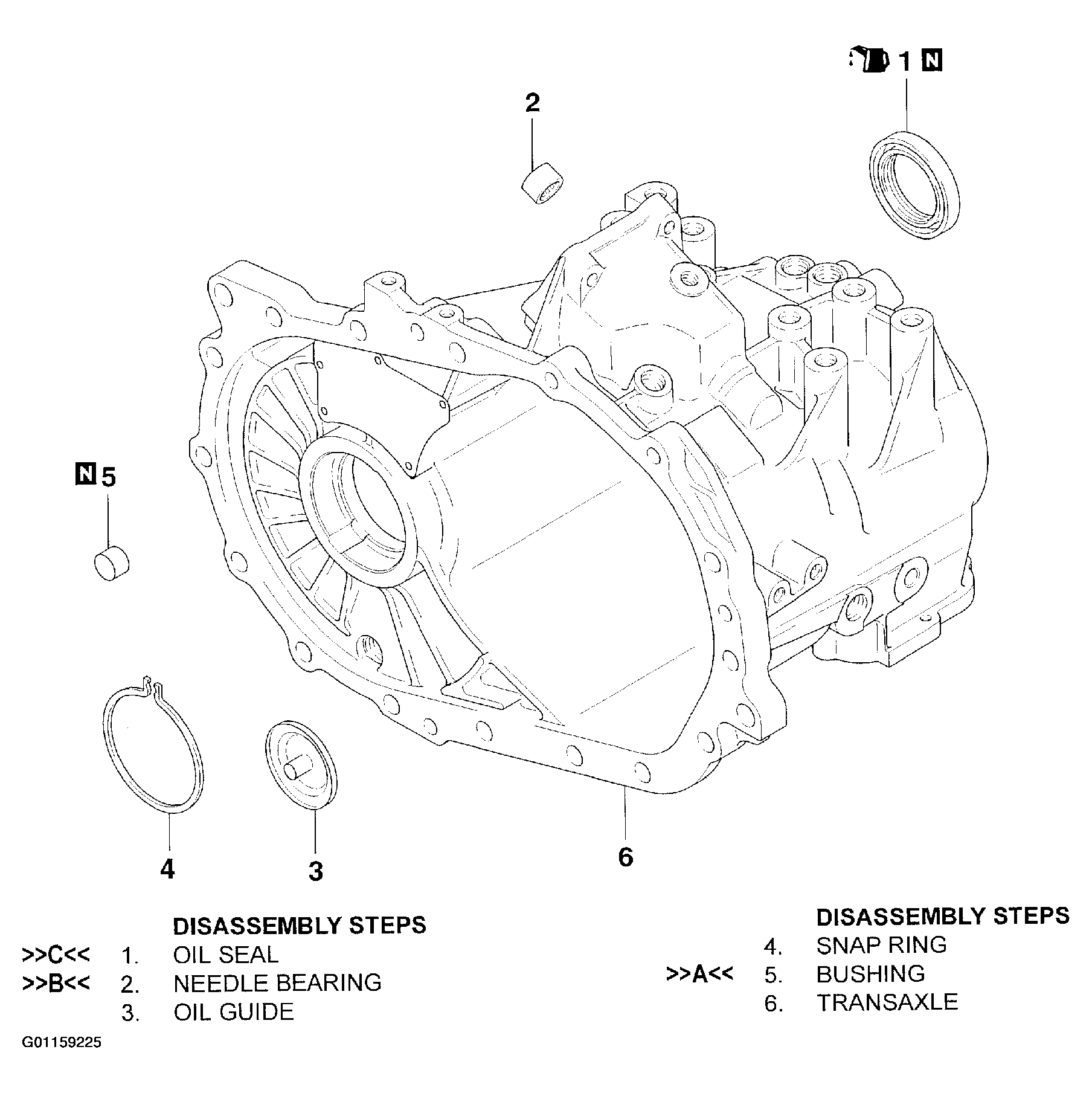

For transmission case disassembly procedures, follow numbered steps in illustration. See Fig 1. For transmission case assembly procedures, follow numbered steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling transmission case . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINTS .
Required Special Tools:
- MD998325: Differential Oil Seal Installer
